Запчасти Case IH 2366 (05-16) - HYDRAULICS - MOTOR, DRIVE - POWER GUIDE AXLE (04) - STEERING

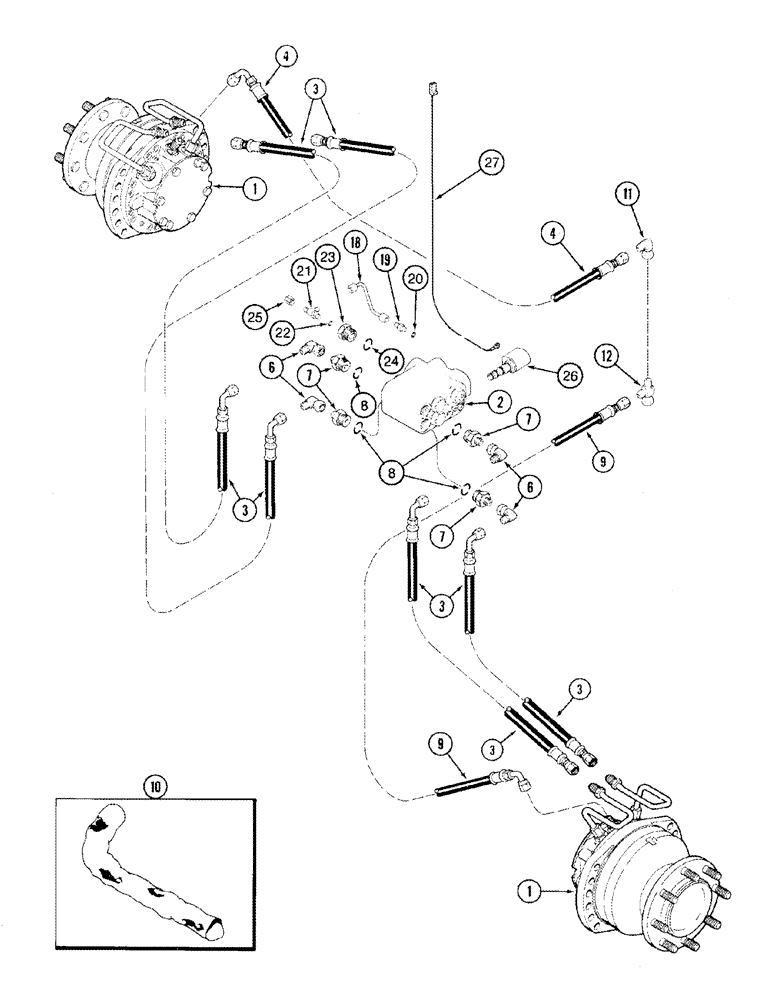

Схема запчастей Case IH 2366 - (05-16) - HYDRAULICS - MOTOR, DRIVE - POWER GUIDE AXLE (04) - STEERING
3
3
9
3
2
6
8
1
4
11
3
7
7
21
20
9
26
3
4
18
19
1
23
6
22
24
12
8
27
7
25
10

Артикул

Название

Примечание

Количество

1

121436A1

MOTOR, HYDRAULIC

Corn and Grain Drive, See Figure 05-27, See Figure Note, Serial Range: -JJC0256605

2шт.

1

87300716

MOTOR, HYDRAULIC

See Figure 05-27, See Figure Note, Start Serial: JJC0256606

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2366 - CASE IH AXIAL-FLOW COMBINE (NA) - 1/98-8/04, Reman For New P/N's 121436A1 & 87300716,

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

2

1978000C1

VALVE

See Figure 05-26

1шт.

3

1970387C1

HOSE

Wheel Motor Drain Pressure, 1448 mm (57-1/8 in)

4шт.

With 108 to 120 Inch Power Guide Axles.

1шт.

3

1968995C1

FLEXIBLE HOSE,12.7mm ID x 1752.6mm L, SAE 100R10

Wheel Motor Drain Pressure, 1753 mm (69-1/8 in)

4шт.

With 120 to 144 Inch Power Guide Axles.

1шт.

4

1970388C1

HOSE

Wheel Motor Drain Pressure, 1702 mm (67 in)

1шт.

With 108 to 120 Inch Power Guide Axles.

1шт.

4

1968996C1

FLEXIBLE HOSE

Wheel Motor Drain Pressure, 2007 mm (79-1/8 in)

1шт.

With 120 to 144 Inch Power Guide Axles.

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

4шт.

7

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Incl. 8

4шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

1970389C1

HOSE

Drain, 1549 mm (61 in)

1шт.

With 108 to 120 Inch Power Guide Axles.

1шт.

9

1970135C1

HOSE

Drain

1шт.

Corn and Grain Combine

1шт.

10

1970108C1

PROTECTIVE COVER

Sleeve, 60 ID x 1219 mm

2шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

12

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

18

1970140C1

TUBE,4.78 mm ID

Charge Pressure

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Inc. 22

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

1970176C1

PLUG

Inc. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

218-752

CAP,37 Degree, 7/16"-20

1шт.

26

REF

INSTRUCTION

SOLENOID ASSY., Charge Pressure, See Figure 05-26, Ref. 60 - 64

1шт.

27

1964572C2

WIRE HARNESS

SOLENOID

1шт.

Выбрано товаров: 33
