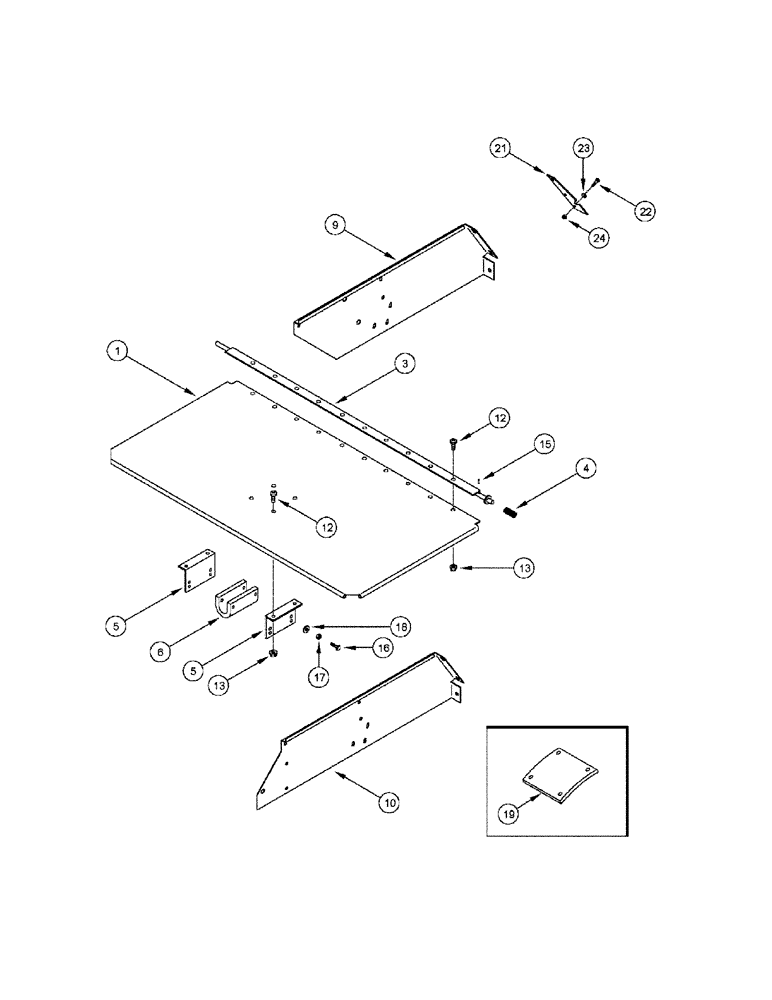

Запчасти Case IH 2366 (05-15) - AXLE, STEERING - SHIELD - ASN JJC0255000 (04) - STEERING

1

1325596C2

SHIELD

Steering Axle

1шт.

3

195450C2

SUPPORT ASSY.

1шт.

4

203942C1

SPRING

1шт.

5

183093C1

BRACKET

2шт.

6

183094C1

CUSHION

1шт.

7

1325374C5

PLATE

Hood Extension, Left Hand, Not Illustrated

1шт.

With Straw Spreader

1шт.

8

428287A1

PLATE

Hood Extension, Left Hand, Not Illustrated

1шт.

With Straw and Chaff Spreader

1шт.

9

428292A1

PLATE

Hood Extension, Right Hand

1шт.

With Straw Spreader

1шт.

10

428286A1

PLATE

Hood Extension, Right Hand

1шт.

With Straw and Chaff Spreader

1шт.

11

1325376C1

PLATE

Connector, Hood Extension

2шт.

With Straw Spreader

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

22шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

15

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

17

231-4115

NUT,5/16"-18, GB

6шт.

18

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

19

1345126C1

CUSHION

1шт.

20

1968976C1

SEALING STRIP

Not Illustrated

2шт.

21

316716A1

SEAL

Rubber, Hood Extension

2шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

23

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

24

231-4146

NUT,3/8"-16, GB

2шт.

25

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Used with 8, 9, Not Illustrated

3шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

Used with 8, 9, Not Illustrated

1шт.

26

231-5346

FLANGE NUT,Flg, 3/8"-16

Used with 8, 9, Not Illustrated

4шт.
