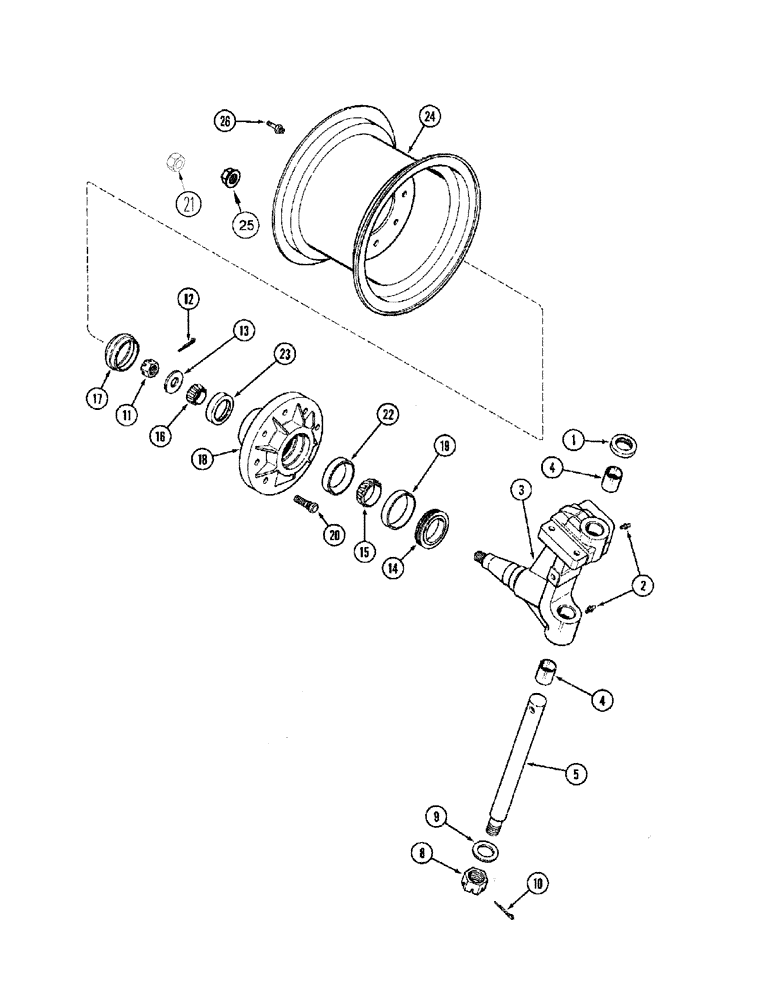

Запчасти Case IH 2366 (05-13) - AXLE, ADJUSTABLE - STEERING KNUCKLE, HUB AND WHEELS - ASN JJC0252950 (04) - STEERING

1

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

185439C91

STEERING KNUCKLE

Left Hand, Inc. 4, Not Illustrated

1шт.

3

185440C91

STEERING KNUCKLE

Right Hand, Inc. 4

1шт.

4

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

2шт.

5

186052C1

PIN,50.8mm OD x 508mm L

2шт.

8

25-1224

SLOTTED NUT,1 1/2"-6, G5

1-1/2

2шт.

9

95-81041

WASHER,38.89mm ID x 76.2mm OD x 3.4mm Thk

1-17/32 x 3 x 1/8

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

2шт.

11

425-1316

NUT,1"-14, G5

1 NS

2шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

13

435688A1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

2шт.

14

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

2шт.

15

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16 in. ID

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8 ID

2шт.

17

560950R1

HUB CAP

2шт.

18

169293C11

HUB

Inc. 19 - 23, Serial Range: -JJC0255699

2шт.

18

402622A1

HUB

Inc. 19 - 23, Start Serial: JJC0255700

2шт.

19

169328C1

SLEEVE

Sleeve, Oil Seal Wear

1шт.

20

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8 x 2-1/4, Serial Range: -JJC0254999

8шт.

20

431727A1

BOLT

5/8 x 2-1/2, Start Serial: JJC0255000

8шт.

21

554480R1

WHEEL NUT

5/8 NF

8шт.

Used with 1541719C2

1шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64 OD

1шт.

23

663558R1

BEARING CUP

2-57/64 OD

1шт.

24

1541719C2

WHEEL

24 x 12, For 14.9 x 24 inch Tire, Serial Range: -JJC0254999

2шт.

24

192201A2

WHEEL

12 x 24 in, For 14.9 x 24 inch Tire

2шт.

24

417734A1

WHEEL

15 x 24, With Weights Holes, For Weights, For 480/70-R24 or 540/65R24 Tires, See Figure 05-31

2шт.

25

401846A1

FLANGE NUT

Flange, 5/8 NF; 8

8шт.

Used with 192201A2, 417734A1

1шт.

26

179482C1

VALVE STEM

7/16 in. dia.

2шт.

26

407184C1

VALVE STEM

Core

2шт.
