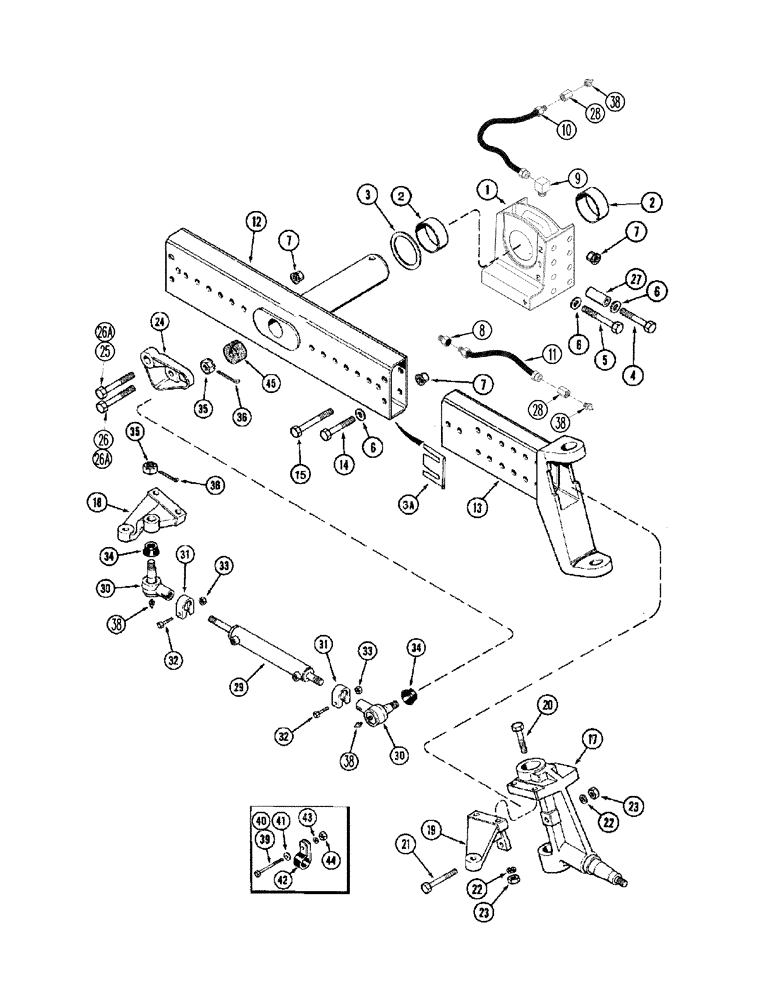

Запчасти Case IH 2366 (05-09) - AXLE, ADJUSTABLE - STEERING - 92 TO 120 INCH AXLE - ASN JJC0252949 (04) - STEERING

1

386235A1

SUPPORT

Inc. 2, Serial Range: JJC0252950-JJC0254999

1шт.

1

386235A2

SUPPORT

Inc. 2, Start Serial: JJC0255000

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

1шт.

3a

236028A2

SHIM,127mm OD x 0.9mm Thk

1шт.

4

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2-4шт.

4

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

5

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

6

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

11шт.

7

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

8

219-418

ADAPTER,1/4"-1/8 NPTF

1/4 x 1/8

1шт.

9

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

90, 1/4 x 1/8

1шт.

10

431726A1

HOSE

938 mm (37 in.)

1шт.

11

428293A1

FLEXIBLE HOSE

1148 mm (45 in.)

1шт.

12

242643A2

AXLE

Adjustable, 92 - 120 in.

1шт.

12

243747A2

AXLE

Adjustable, 92 - 120 in.

1шт.

Australia Only

1шт.

Heavy Duty

1шт.

13

186045C4

AXLE

2шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

2шт.

15

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

8шт.

16

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

3/4 x 5-1/2

2шт.

Australia Only

1шт.

17

REF

INSTRUCTION

KNUCKLE, See Figure 05-13

2шт.

18

186641C1

LEVER

Left Hand

1шт.

19

186639C1

LEVER

Right Hand

1шт.

20

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

21

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

22

492-11062

BEARING WASHER,5/8"

6шт.

23

429-1010

NUT,5/8"-11, G8

6шт.

24

133319A1

SUPPORT

Steering Cylinder

1шт.

25

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

3/4 x 5-3/4

1шт.

26

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

3/4 x 5-1/4

1шт.

26a

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

.75 x 6.5; 5

2шт.

Australia Only

1шт.

27

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16

8шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8

2шт.

29

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

Steering, 51 ID x 229 mm strk, See Figure 05-24, Serial Range: -JJC0253999

1шт.

29

1958024C1

STEERING CYLINDER

Steering, 64 ID x 229 mm strk, See Figure 05-25, Start Serial: JJC0254000

1шт.

87337226R

REMAN-HYD CYLINDER

2366 AXLE, ADJUSTABLE - STEERING - 92 TO 120 INCH AXLE - ASN JJC0252949 ( 1/98 - 8/04 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

30

181335C91

BALL JOINT

Inc. 31 - 35, Serial Range: -JJC0253999

2шт.

30

186140C91

BALL JOINT

Inc. 31 - 35, Serial Range: JJC0254000-JJC02549999

2шт.

30

437222A1

BALL JOINT

Inc. 31 - 38, Start Serial: JJC0255000

2шт.

31

446308C91

CLAMP

Inc. 32, 33

1шт.

32

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

7/16 x 1-7/8

1шт.

33

231-4117

LOCK NUT,7/16"-14, GB

7/16

1шт.

34

87301009

BOOT

BOOT, End, Replaces 110373R1

1шт.

35

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

36

432-816

COTTER PIN,1/8" x 1"

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

39

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

5/16 x 5-1/2

1шт.

Australia Only

1шт.

40

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

5/16 x 4-1/2

1шт.

41

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

1шт.

42

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

43

492-11031

LOCK WASHER,5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

45

167955C2

SEAL

1шт.
