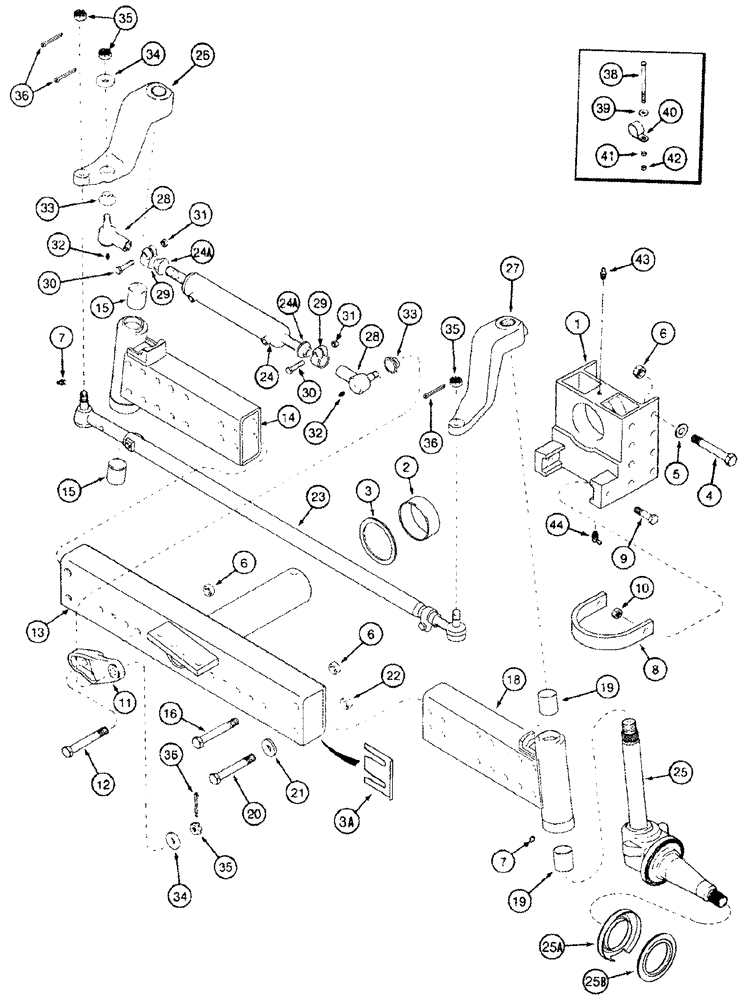

Запчасти Case IH 2366 (05-07) - AXLE, ADJUSTABLE - STEERING - 92 TO 120 INCH AXLE - BSN JJC0252949 (04) - STEERING

1

186599C94

SUPPORT

Inc. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

1шт.

3a

236028A2

SHIM,127mm OD x 0.9mm Thk

Axle Tube

1шт.

4

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

1шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

8

1302625C1

CHANNEL

Tow, 249 mm wide, 13 mm drop

1шт.

9

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

1шт.

10

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

2шт.

11

182782C1

ANCHOR

Steering Cylinder

1шт.

12

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

3/4 x 5-1/2

1шт.

13

242643A2

AXLE

Adjustable, 92 - 120 in.

1шт.

13

243747A2

AXLE

Adjustable, 92 - 120 in.

1шт.

Australia Only

1шт.

14

183454C93

EXTENSION

Left Hand, Inc. 15

1шт.

15

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

2шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

1шт.

18

183455C93

EXTENSION

Right Hand, Inc. 19

1шт.

19

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

2шт.

20

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

21

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

22

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

23

NSS

NOT SOLD SEPARAT

ROD Tie, See Figure 05-08

1шт.

24

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

51 ID x 229 mm strk, Steering, See Figure 05-24

1шт.

24a

A41424

SEAL

Cylinder Ball Socket

2шт.

25

1315374C2

STEERING KNUCKLE

Inc. 25A, 25B

1шт.

25a

1259522C1

SHIELD

1шт.

25b

491641C1

SEAL

1шт.

26

193911C4

ARM

Left Hand

1шт.

27

193912C3

STEERING ARM

Right Hand

1шт.

28

186796C1

BALL JOINT

Inc. 29 - 32

2шт.

29

384371R1

CLAMP

1шт.

30

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

7/16 x 1-7/8

1шт.

31

231-4117

LOCK NUT,7/16"-14, GB

7/16

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

33

A41424

SEAL

Cylinder Ball Socket

2шт.

34

95-81019

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

23/32 x 1-1/2 x 1/8

2шт.

35

425-1310

SLOTTED NUT,5/8"-18, G5

4шт.

36

432-816

COTTER PIN,1/8" x 1"

4шт.

38

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

5/16 x 4-1/2

1шт.

39

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

1шт.

40

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

41

492-11031

LOCK WASHER,5/16"

1шт.

42

425-105

NUT,5/16"-18, G5

1шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

44

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.
