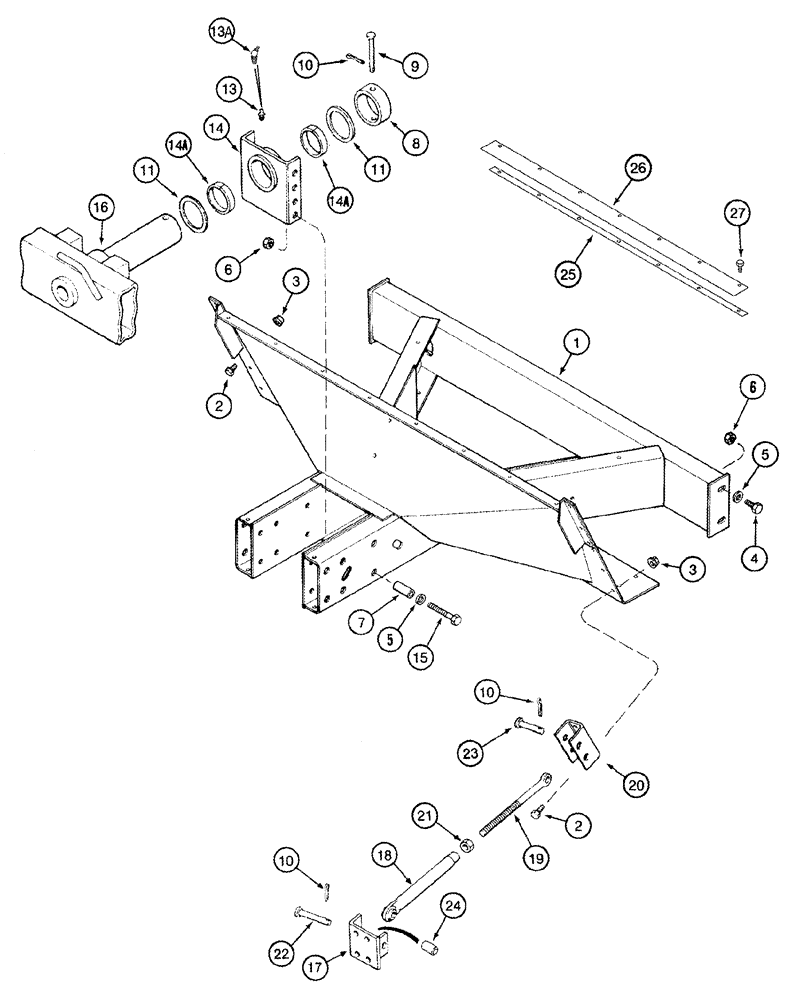

Запчасти Case IH 2366 (05-06[01]) - AXLE, STEERING - SUPPORT, ADJUSTABLE AXLE, BSN JJC0254999 (04) - STEERING

1

1322258C4

SUPPORT

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

3/4 x 1-1/2; 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

7

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

3/4 x 5-1/2; 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

2шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1-2шт.

13a

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4 tpr x 13/16

1шт.

14

182792C96

SUPPORT

Front, Inc. 14A

1шт.

14a

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

2шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

AXLE, Steering, See Figure 05-07

1шт.

17

254425A1

SUPPORT

Rear

2шт.

18

181444C1

TIE-ROD,1" - 8

2шт.

19

181442C3

EYEBOLT,1" - 8 x 381mm

BOLT, EYE

2шт.

20

1541603C1

SUPPORT

Front

2шт.

21

425-1016

NUT,1"-8, G5

2шт.

22

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

7/8 x 5-1/2; 2

2шт.

23

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

7/8 x 3-1/2; 2

2шт.

24

254598A1

SPACER

2шт.

25

316710A1

BAR

Shoe Seal

1шт.

26

316712A1

SEAL

Rubber Shoe

1шт.

27

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

6шт.
