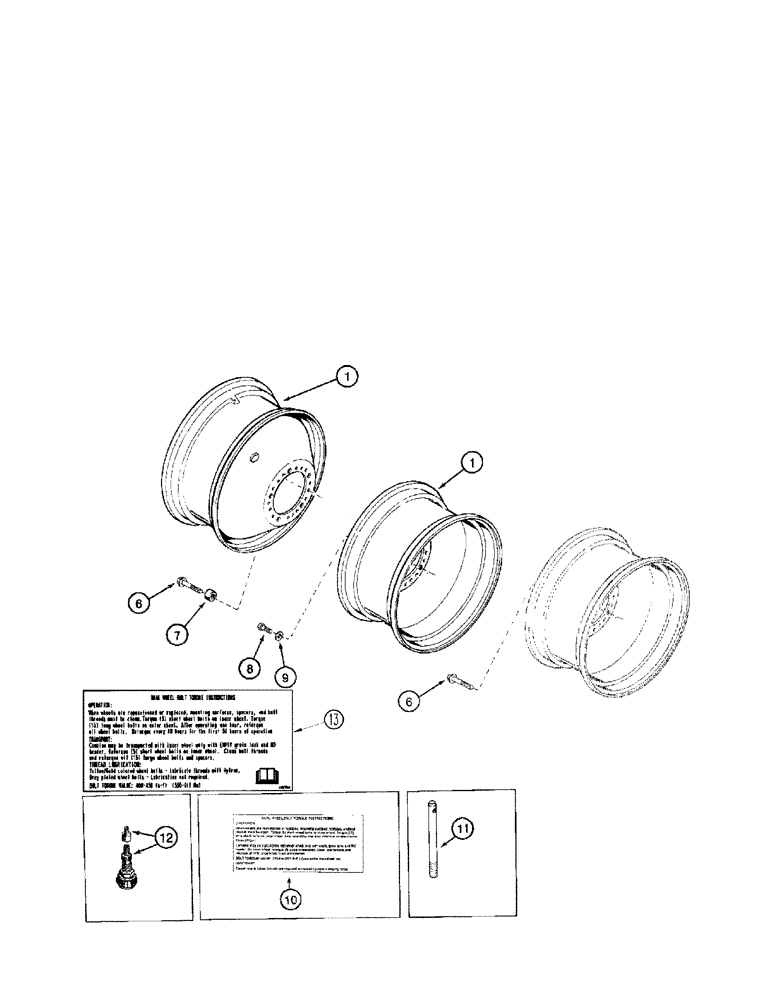

Запчасти Case IH 2366 (06-31) - WHEELS - DRIVE - DUAL (03) - POWER TRAIN

1

184352C2

WHEEL

18.4 x 38 inch Tire

4шт.

1

184458C2

WHEEL

18.4 x 42 inch Tire

4шт.

1

184456C2

WHEEL

20.8 x 42 inch Tire

4шт.

2

417194C1

PLUG

Not Illustrated

4шт.

Used with Tubeless Tires

1шт.

2

383697R1

PLUG

Not Illustrated

4шт.

Used with Tube Type Tires

1шт.

4

179482C1

VALVE STEM

7/16 in. dia., Not Illustrated

4шт.

Used with Tubeless Tires

1шт.

5

407184C1

VALVE STEM

Core, Not Illustrated

4шт.

Used with Tubeless Tires

1шт.

6

130934A2

BOLT

M20 x 90; 10.9, Serial Range: -JJC0254999

1шт.

6

427373A1

BOLT

M20 x 85; 10.9, Start Serial: JJC0255000

1шт.

7

130871A2

SPACER

, Serial Range: -JJC0253999

1шт.

7

130871A3

SPACER

, Start Serial: JJC0254000

1шт.

8

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

M20 x 45; 10.9, No Longer Used, Order: 130934A1

1шт.

9

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3.4 mm, If Used

1шт.

10

135786A2

DECAL

Dual Wheel Bolt Torque, Serial Range: -JJC0254999

2шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

2шт.

12

179482C1

VALVE STEM

7/16 in. dia., If Used

2шт.

Used with Tubeless Tires

1шт.

13

448670A1

DECAL

Dual Wheel Bolt Torgue, Start Serial: JJC0255000

2шт.
