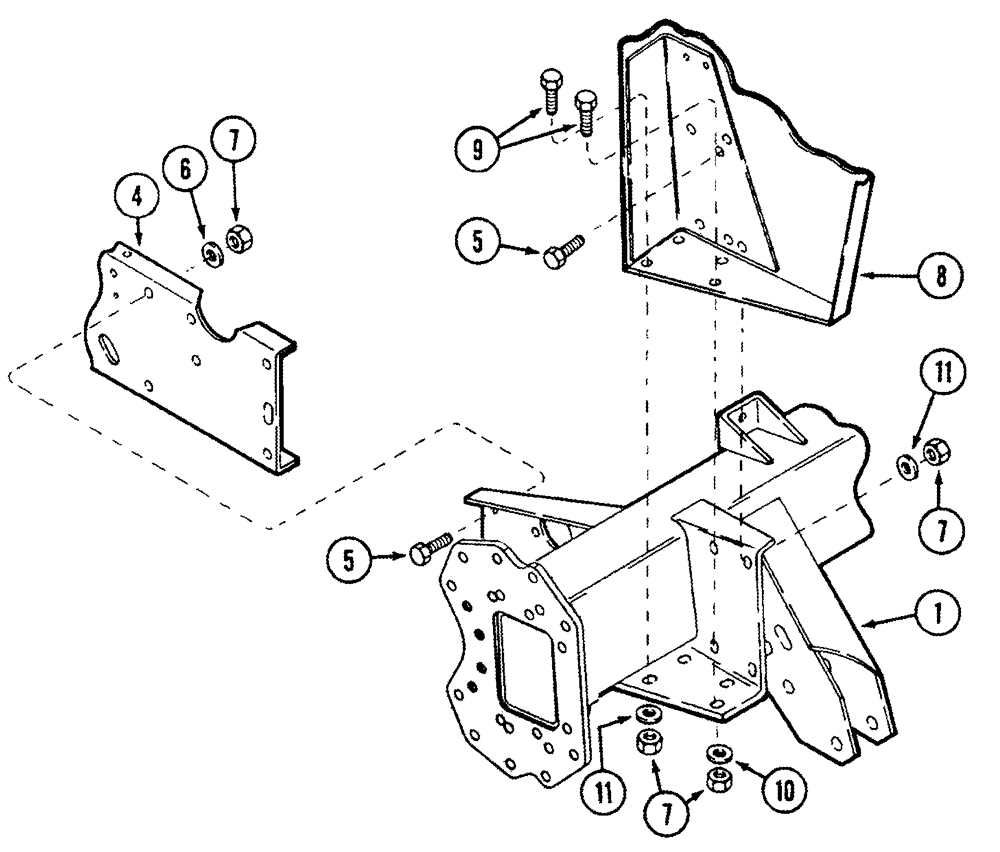

Запчасти Case IH 2366 (06-26) - AXLE ASSY - DRIVE (03) - POWER TRAIN

1

238567A3

AXLE

88 in

1шт.

4

REF

INSTRUCTION

SUPPORT, Separator Front, Right Hand, See Figure 09H-03, Ref. 11, Left Hand, See Figure 09H-02, Ref. 14

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

1шт.

6

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3.4 mm

1шт.

7

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

5/8; 8

1шт.

8

REF

INSTRUCTION

SEPARATOR, Right Hand, See Figure 09H-03, Ref. 6, Left Hand, See Figure 09H-02, Ref. 4

1шт.

9

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

8шт.

10

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

21/32 x 1-1/2 x 3/16

4шт.

11

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

41/64 x 1-1/4 x 1/8

12шт.

12

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

Not Illustrated

1шт.
