Запчасти Case IH 2366 (06-24) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN

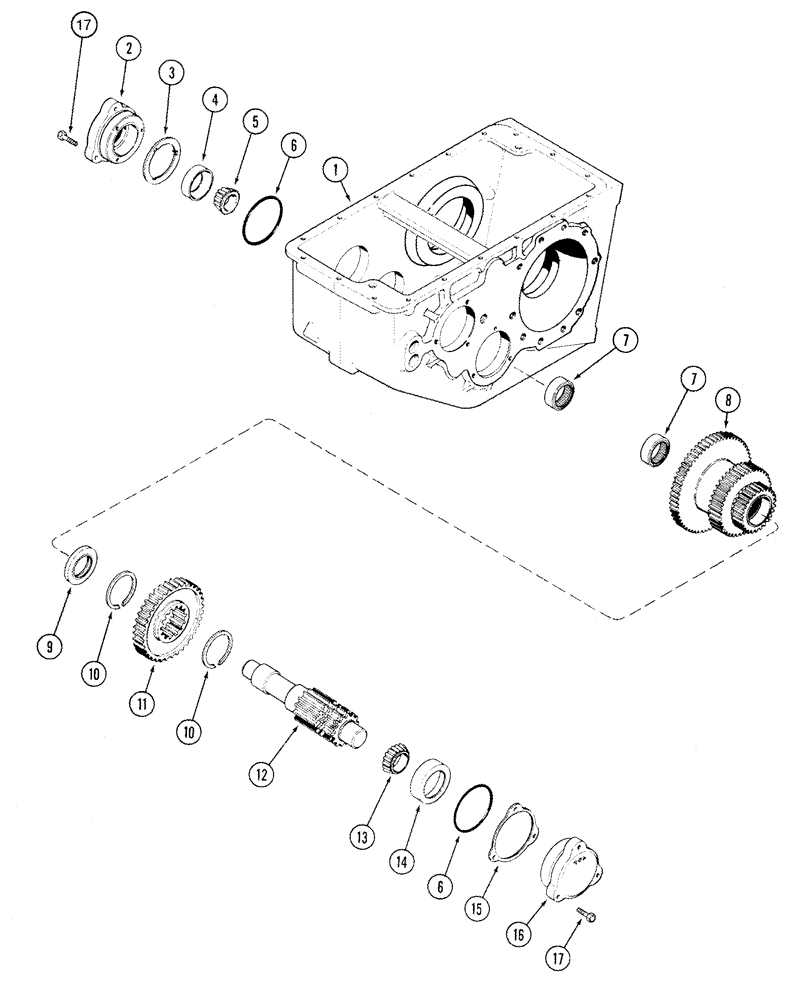

Схема запчастей Case IH 2366 - (06-24) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN
6
2
8
11
16
3
10
7
4
15
5
7
17
13
6
1
10
9
14
17
12

Артикул

Название

Примечание

Количество

236706A1

TRANSMISSION

Change Gears, 34/38, Inc. 1 - 17, Also See Figure(s) 06-23, 06-25

1шт.

236706A1R

REMAN-TRANSMISSION

Reman for New PN 236706A1

1шт.

236706A1C

CORE-TRANSMISSION

Return Number

1шт.

236707A1

TRANSMISSION

Change Gears, 37/35, Inc. 1 - 17, Also See Figure(s) 06-23, 06-25

1шт.

236707A1R

REMAN-TRANSMISSION

Reman for New PN 236707A1

1шт.

236707A1C

CORE-TRANSMISSION

Return Number

1шт.

1

REF

INSTRUCTION

HOUSING, See Figure 06-23, Ref. 1

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER Left Hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

1шт.

4

131312C1

BEARING CUP

Left Hand Pinion Shaft

1шт.

5

871244R1

ROLLER BEARING

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

2шт.

8

530699R1

PINION

59T, 39T, 27T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

1шт.

10

196693H1

RING

2шт.

11

1349045C1

PINION

Change Driven, 38T

1шт.

Rice Combine

1шт.

11

1997649C1

PINION,35T

Change Driven

1шт.

Corn and Grain Combine

1шт.

12

401878R1

SHAFT

14T

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003")

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005")

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030")

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING Right Hand

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

Use 345-620 Loctite No. 272, 1 ml

1шт.
