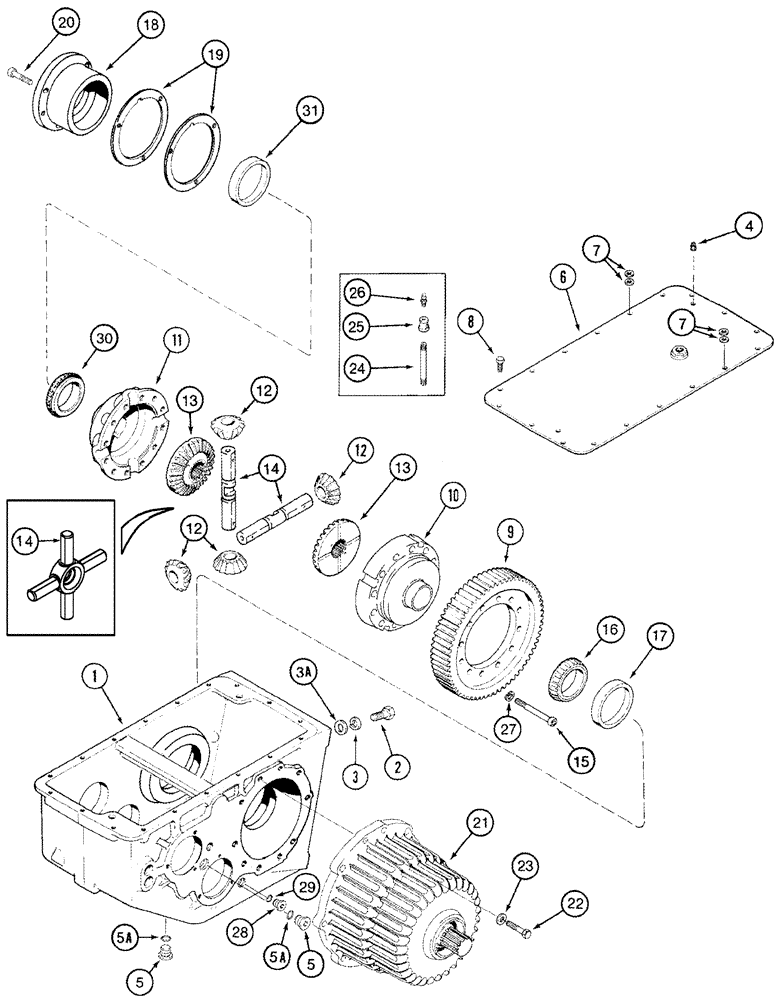

Запчасти Case IH 2366 (06-23) - TRANSMISSION ASSY - HOUSING AND DIFFERENTIAL (03) - POWER TRAIN

236706A1

TRANSMISSION

Change Gears, 34/38, Inc. 1 - 31, Also See Figure(s) 06-24, 06-25

1шт.

Rice Combine

1шт.

236706A1R

REMAN-TRANSMISSION

Reman for New PN 236706A1

1шт.

236706A1C

CORE-TRANSMISSION

Return Number

1шт.

236707A1

TRANSMISSION

Change Gears, 37/35, Inc. 1 - 31, Also See Figure(s) 06-24, 06-25

1шт.

Corn and Grain Combine

1шт.

236707A1R

REMAN-TRANSMISSION

Reman for New PN 236707A1

1шт.

236707A1C

CORE-TRANSMISSION

Return Number

1шт.

1

236715A1

HOUSING

1шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

3

892-16016

LOCK WASHER,M16, Hvy

M16

4шт.

3a

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

5

9841223

PLUG,1-1/16" - 12 ORB

Incl. 5A

2шт.

5a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

239456A1

COVER

Housing, Use Loctite No. 596

1шт.

345-132

SEE PARTS MARKETING

Loctite, 1 ml, No. 596

1шт.

7

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

4шт.

8

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20

18шт.

9

1997997C2

DRIVEN GEAR

Differential, 66T

1шт.

236380A1

HOUSING

Differential, Inc. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING, Right Hand

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING, Left Hand

1шт.

12

361061R3

PINION

15T

4шт.

13

236377A1

BEVEL GEAR

28T

2шт.

14

197469A1

SHAFT

Two Pieces Required, Serial Range: -JJC0255699

2шт.

14

393637R2

DIFF. SPIDER

One Piece, Replaces 197469A1, Start Serial: JJC0255700

1шт.

15

230447A1

HEX SOC SCREW

M16 x 90; 10.9

12шт.

16

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

1шт.

17

ST981

BEARING CONE,112.71mm OD x 19.05mm W

1шт.

18

1997956C2

CAGE

1шт.

19

1997957C2

SHIM,134mm ID x 176mm OD x 0.81mm Thk

1шт.

19

1997958C2

SHIM,134mm ID x 176mm OD x 0.13mm Thk

1шт.

19

1997947C2

SHIM,134mm ID x 176mm OD x 0.08mm Thk

1шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

5шт.

21

236388A1

BRAKE ASSY.

Master, See Figure 07-03

2шт.

21

236388A1R

REMAN-BRAKE ASSY.

REMAN-BRAKE ASSY REMAN - Wet Brakes

2шт.

21

236388A1C

CORE-BRAKE ASSY.

Return Number

2шт.

22

963-12040

HEX SOC SCREW,M12 x 40mm, Cl 10.9

M12 x 40; 10.9

20шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

24

121210

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

25

144098

REDUCER

Housing Cover

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

Transmission Case Oil, 1/8 PT x 1

1шт.

27

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

28

86625138

PLUG,7/18" - 14

Includes Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

1шт.

31

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

1шт.
