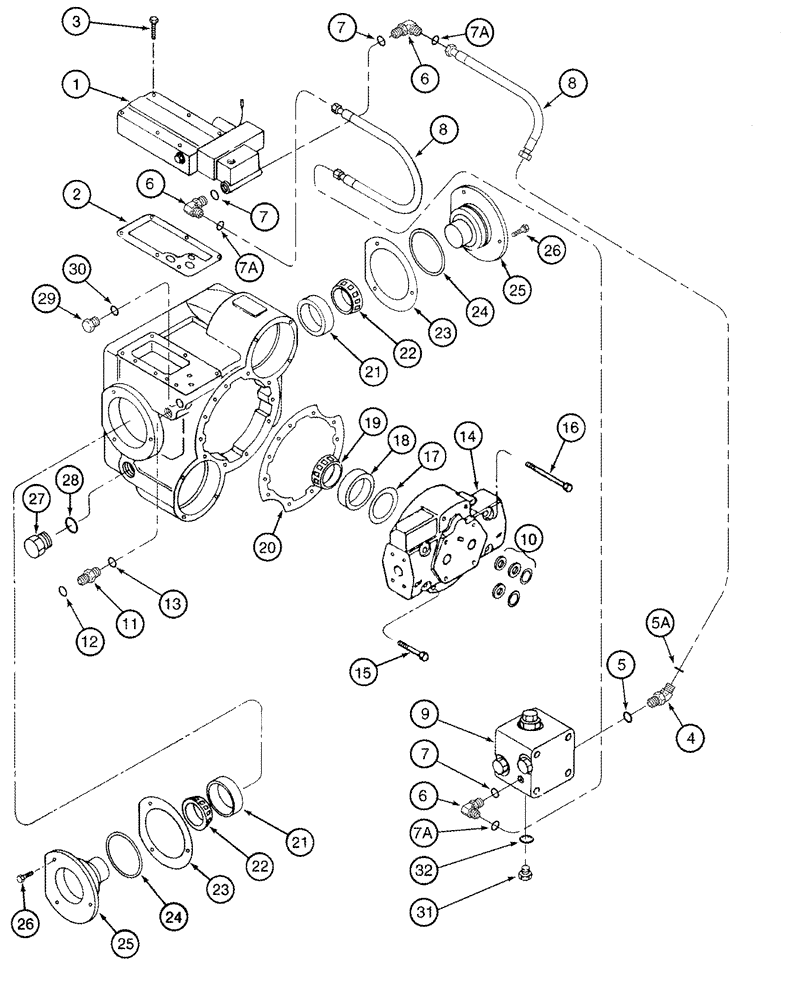

Запчасти Case IH 2366 (06-19) - MOTOR ASSY - HYDROSTATIC - TWO SPEED - CORN, GRAIN OR RICE COMBINE (03) - POWER TRAIN

242507A2

MOTOR, HYDRAULIC

Inc. 1- 32, Inc. Figure 6-17, Part Number Stamped On Part, Serial Range: -JJC0254071

1шт.

400476A2R

REMAN-HYD MOTOR,89.13 CC

2366 (1/98-8/04) Reman for new P/N 242507A2

1шт.

400476A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

400476A1

MOTOR, HYDRAULIC

Inc. 1- 32, Inc. Figure 6-18, Part Number Stamped On Part, Start Serial: JJC0254072

1шт.

1

255825A1

REPAIR KIT

See Figure 06-20

1шт.

2

145337C1

GASKET

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

4

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

Includes 5, 5A

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

6

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16, Inc. 7, 7A

3шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

8

192384A1

HOSE,6.35mm ID x 255mm L

Valve To Block, 254 mm (10 in.), One 90 Degree Hose End and One Straight Hose End

2шт.

9

193646A2

BLOCK

Relief Valve, See Figure(s) 06-15, 06-16

1шт.

10

140747C92

SEAL KIT

See Figure(s) 06-15, 06-16

1шт.

11

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16, Inc. 12, 13

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING, End Cover

1шт.

15

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2; 8

2шт.

16

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

7/16 x 3

6шт.

142398C91

SHIM KIT

Inc. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, 0.003 in.

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in.

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in.

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, 0.015 in.

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in.

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, 0.030 in.

1шт.

18

530741R1

BEARING CUP

Input Shaft, 2-17/32 OD

1шт.

19

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

Input Shaft, 1-3/16 ID

1шт.

20

92741C2

GASKET,0.38mm Thk

1шт.

21

NSS

NOT SOLD SEPARAT

TRUNNION Bearing, Cup

2шт.

22

NSS

NOT SOLD SEPARAT

TRUNNION Bearing, Cup

2шт.

142386C91

SHIM KIT

Inc. 23

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM, 0.002 in.

6шт.

23

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in.

4шт.

23

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in.

4шт.

23

NSS

NOT SOLD SEPARAT

SHIM, 0.015 in.

4шт.

23

NSS

NOT SOLD SEPARAT

SHIM, 0.025 in.

4шт.

24

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

25

NSS

NOT SOLD SEPARAT

TRUNNION, Motor

2шт.

26

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16 x 7/8

6шт.

27

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

Incl 30

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

9672438

PLUG,7/16" - 20 ORB

Incl. 32

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
