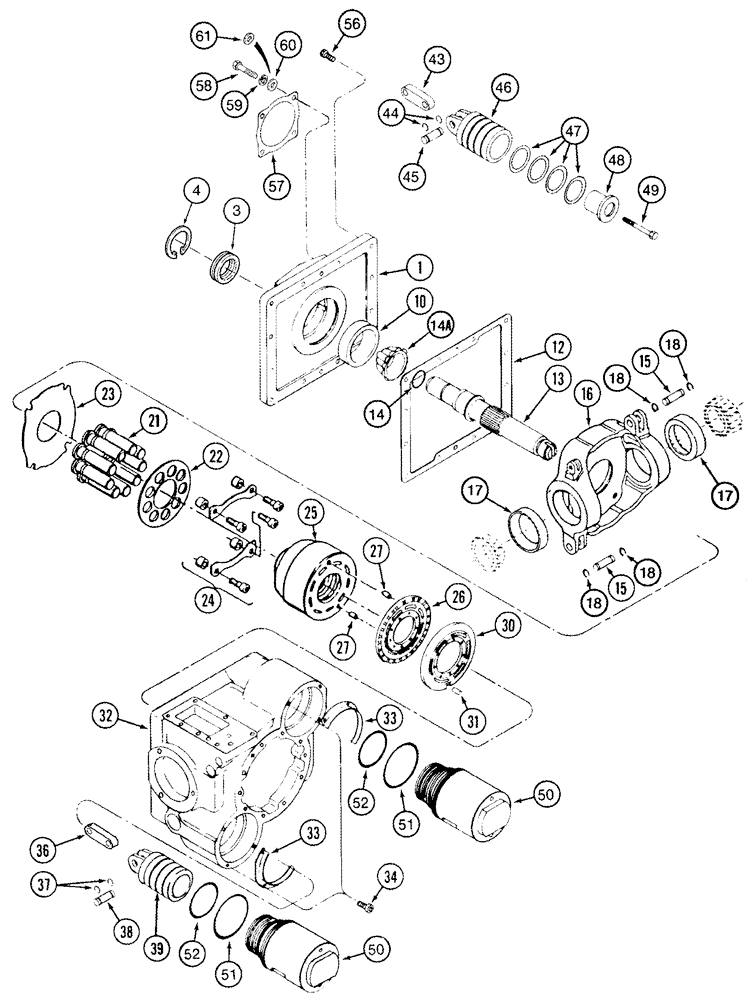

Запчасти Case IH 2366 (06-18) - MOTOR ASSY - HYDROSTATIC - TWO SPEED - CORN, GRAIN OR RICE COMBINE ASN JJC0254072 (03) - POWER TRAIN

400476A2R

REMAN-HYD MOTOR,89.13 CC

N.A. Only

1шт.

400476A2C

CORE-MOTOR HYDRAULIC

Use To Return Core For Credit

1шт.

400476A1

MOTOR, HYDRAULIC

Inc. 1 - 56, Inc. Figure 06-19, Part Number Stamped On Part, Serial Range: -JJC0256399

1шт.

400476A2

HYDROSTATIC MOTOR

Inc. 1 - 56, Inc. Figure 06-19, Part Number Stamped On Part, Start Serial: JJC0256400

1шт.

400476A2R

REMAN-HYD MOTOR,89.13 CC

2366 Start serial JJC0256400, ASN JJC0254072 (1/98-8/04)

1шт.

400476A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

403145A1

SEAL

SHAFT, Inc. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

100-21250

SNAP RING,2.50", Int, #250

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

12

142399C1

GASKET

1шт.

13

403147A1

SHAFT

Output, Inc. 14, 14A

1шт.

14

NSS

NOT SOLD SEPARAT

RING Retaining, No. 200

4шт.

14a

NSS

NOT SOLD SEPARAT

CONE Bearing

1шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

2шт.

16

NSS

NOT SOLD SEPARAT

PLATE Swash

1шт.

17

NSS

NOT SOLD SEPARAT

CUP Bearing

2шт.

18

100-1356

SNAP RING,#56, Ext

4шт.

21

NSS

NOT SOLD SEPARAT

PISTON

9шт.

22

NSS

NOT SOLD SEPARAT

PLATE

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE

1шт.

24

NSS

NOT SOLD SEPARAT

KIT

1шт.

25

NSS

NOT SOLD SEPARAT

BARREL

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

37-1510

DOWEL,5/16" x 5/8"

2шт.

30

NSS

NOT SOLD SEPARAT

PLATE Valve

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

3шт.

32

NSS

NOT SOLD SEPARAT

HOUSING Motor

1шт.

33

142408C1

RETAINER

2шт.

34

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

No. 8 x 3/8

6шт.

36

NSS

NOT SOLD SEPARAT

LINK

1шт.

37

100-1375

SNAP RING,#75, Ext

2шт.

38

NSS

NOT SOLD SEPARAT

PIN

1шт.

145308C1

PISTON

Servo, Inc. 43 - 49

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON

1шт.

43

NSS

NOT SOLD SEPARAT

LINK

1шт.

44

100-1375

SNAP RING,#75, Ext

2шт.

45

NSS

NOT SOLD SEPARAT

PIN

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM

4шт.

48

NSS

NOT SOLD SEPARAT

SPACER

1шт.

49

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

50

NSS

NOT SOLD SEPARAT

SLEEVE ASSY., Servo, Inc. 51, 52

2шт.

51

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

52

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

56

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

57

166506C1

GASKET,0.81mm Thk

1шт.

58

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

61

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

4шт.
