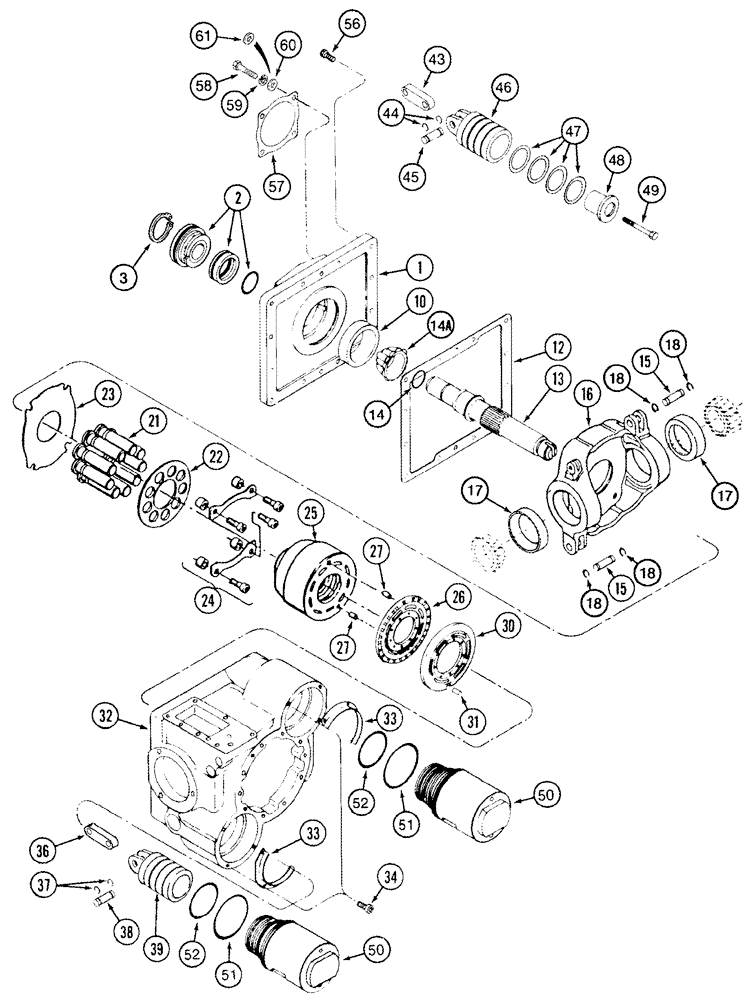

Запчасти Case IH 2366 (06-17) - MOTOR ASSY - HYDROSTATIC - TWO SPEED - CORN, GRAIN OR RICE COMBINE BSN JJC0254071 (03) - POWER TRAIN

242507A2R

REMAN-HYD MOTOR

N.A. Only

1шт.

400476A2R

REMAN-HYD MOTOR,89.13 CC

2366 BSN JJC0254071 (1/98-8/04), Reman replacing prior reman P/N 242507A2R

1шт.

400476A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

242507A2C

CORE-MOTOR HYDRAULIC

Use To Return Core For Credit

1шт.

242507A2

MOTOR, HYDRAULIC

Inc. 1 - 56, Inc. Figure 06-19, Part Number Stamped On Part

1шт.

400476A2R

REMAN-HYD MOTOR,89.13 CC

2366 BSN JJC0254071 (1/98-8/04) Reman for new P/N 242507A2

1шт.

400476A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

2

1346205C1

SEAL KIT

SEAL, Shaft, Four-Piece, Inc. 238-5145, 238-5131

1шт.

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

12

142399C1

GASKET

1шт.

13

1980137C1

SHAFT

Output, Inc. 14, 14A

1шт.

14

101-11200

SNAP RING,#200, 1.880", Ext

4шт.

14a

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

2шт.

16

1980174C1

HOUSING

Inc. 17

1шт.

17

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

2-7/8 OD

2шт.

18

100-1356

SNAP RING,#56, Ext

4шт.

1980175C1

KIT

Rotating Cylinder, Inc. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON

9шт.

22

NSS

NOT SOLD SEPARAT

PLATE

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE

1шт.

24

NSS

NOT SOLD SEPARAT

KIT

1шт.

25

NSS

NOT SOLD SEPARAT

BARREL

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

37-1510

DOWEL,5/16" x 5/8"

2шт.

30

1980139C1

PLATE

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING, Motor

1шт.

33

142408C1

RETAINER

2шт.

34

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

No. 8 x 3/8

6шт.

145309C1

PISTON

Servo, Inc. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

LINK

1шт.

37

100-1375

SNAP RING,#75, Ext

2шт.

38

NSS

NOT SOLD SEPARAT

PIN

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON

1шт.

145308C1

PISTON

Servo, Inc. 43 - 49

1шт.

43

NSS

NOT SOLD SEPARAT

LINK

1шт.

44

100-1375

SNAP RING,#75, Ext

2шт.

45

NSS

NOT SOLD SEPARAT

PIN

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM

4шт.

48

NSS

NOT SOLD SEPARAT

SPACER

1шт.

49

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

50

142407C2

KIT

Servo, Inc. 51, 52

2шт.

51

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

52

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

56

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

57

166506C1

GASKET,0.81mm Thk

1шт.

58

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

61

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

4шт.
