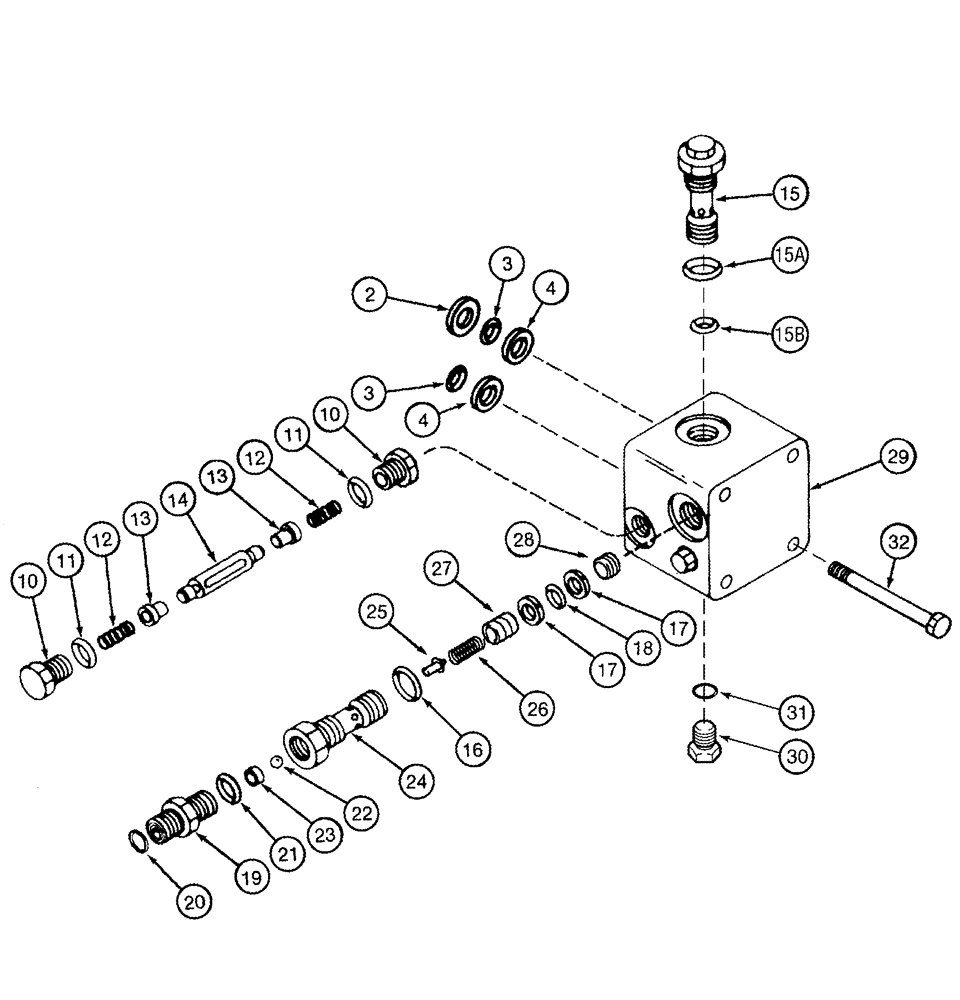

Запчасти Case IH 2366 (06-16) - MOTOR ASSY - HYDROSTATIC - RELIEF VALVE BLOCK (03) - POWER TRAIN

193646A2

BLOCK

Relief Valve, Inc. 2 - 31

1шт.

140747C92

SEAL KIT

Seal, Valve Block, Inc. 2 - 4

1шт.

2

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

631458C1

RING

2шт.

145559C91

KIT

Shuttle Valve, Inc. 10 - 14

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

145560C1

SPRING

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE, Regulator, Shuttle

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

15

140761C1

VALVE PRESSURE RELIE

Low, Incl. 15A, 15B

1шт.

15a

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15b

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

193647A1

VALVE PRESSURE RELIE

Feathering , Inc. 393885R92, 222167A1, Ref. 16 - 28

2шт.

393885R92

SEAL KIT

Relief Valve, Inc. 16 - 18

3шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

RING backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

222167A1

REPAIR KIT

Check Valve, Inc. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

211-1008

BALL,1/4" Dia

24, CRS

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING, Ball Guide

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

25

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG

1шт.

29

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Incl. 31

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

32

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

4шт.
