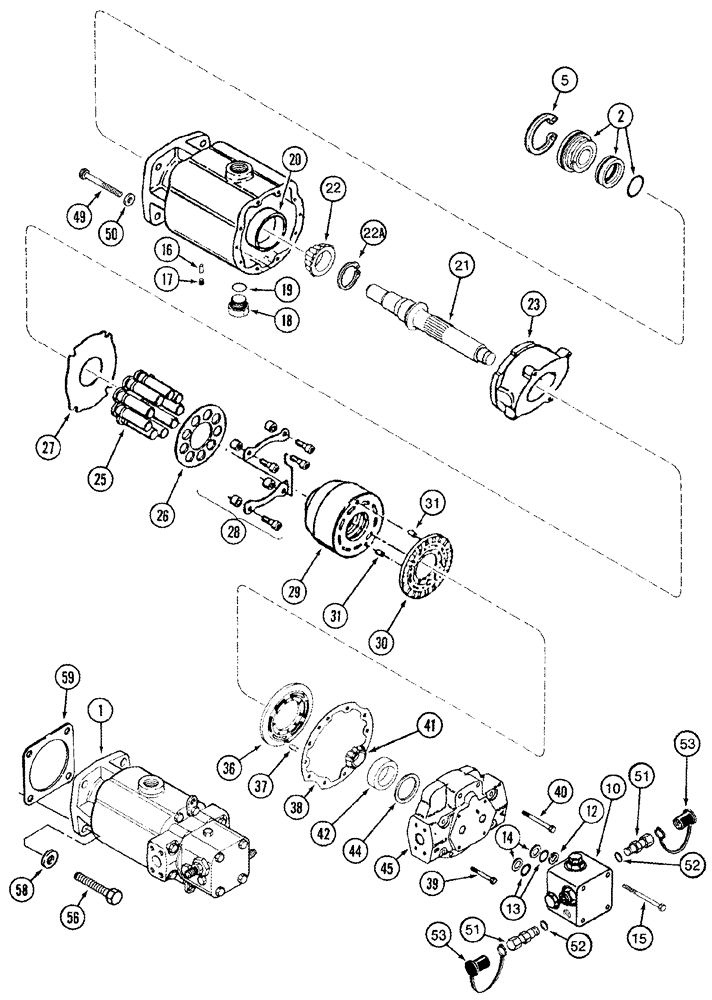

Запчасти Case IH 2366 (06-14) - MOTOR ASSY - HYDROSTATIC - SINGLE SPEED - CORN AND GRAIN COMBINE BSN JJC0254038 (03) - POWER TRAIN

1

183296A2

MOTOR, HYDRAULIC

Inc. 2 - 53, Part Number Stamped On Part

1шт.

1

183296A2R

REMAN-HYD MOTOR

2366 CASE IH AXIAL-FLOW COMBINE (NA), BSN JJC0254038 (1/98-8/04)

1шт.

1

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

1346205C1

SEAL KIT

Shaft Seal, Four-Piece, Inc. 238-5145, 238-5131

1шт.

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

5

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

10

193646A2

BLOCK

Relief Valve, See Figure(s) 06-15, 06-16

1шт.

140747C92

SEAL KIT

Seal, Valve Block, Inc. 12 - 14

1шт.

12

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

4шт.

16

37-1516

DOWEL,5/16" x 1"

5/16 x 1

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

21

1980137C1

SHAFT

Inc. 22, 22A

1шт.

22

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

1шт.

22b

101-11200

SNAP RING,#200, 1.880", Ext

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE

1шт.

1980138C1

KIT

Rotating Cylinder, Inc. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE

1шт.

28

NSS

NOT SOLD SEPARAT

KIT

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

1980139C1

PLATE

1шт.

37

37-1510

DOWEL,5/16" x 5/8"

3шт.

38

1980140C1

GASKET,0.38mm Thk

1шт.

39

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

40

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

6шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16 ID

1шт.

42

530741R1

BEARING CUP

2-17/32 OD

1шт.

142398C91

SHIM KIT

Inc. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.003 in.

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in.

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in.

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.015 in.

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in.

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.030 in.

1шт.

45

NSS

NOT SOLD SEPARAT

COVER

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

2шт.

51

R55912

NIPPLE

2шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

53

H434163

DUST CAP

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

1шт.
