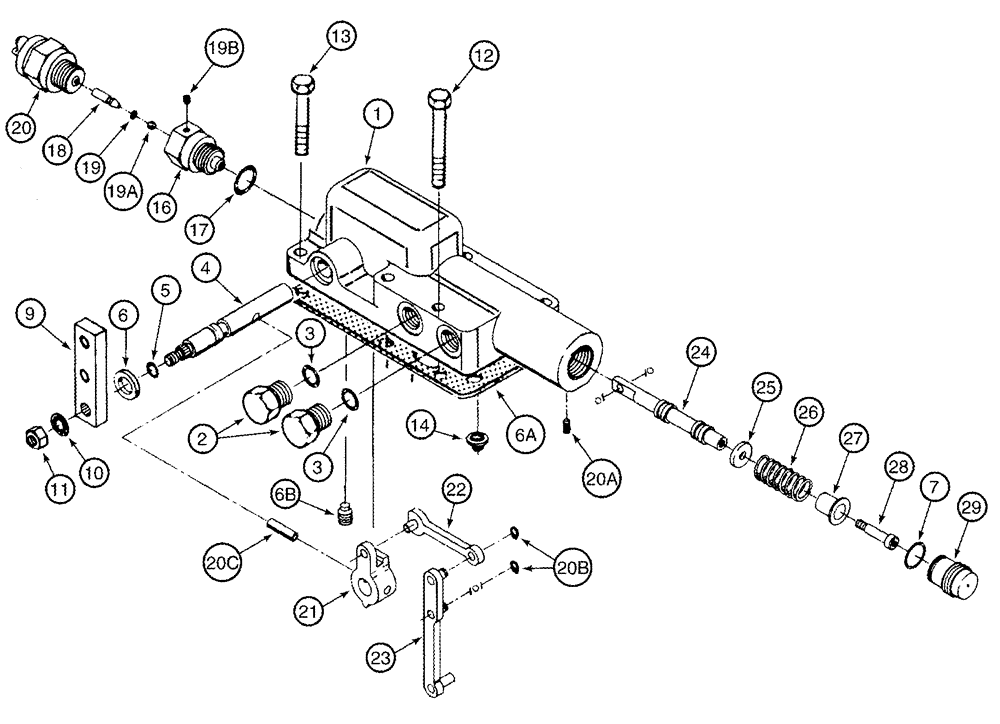

Запчасти Case IH 2366 (06-11) - PUMP ASSY - HYDROSTATIC - CONTROL VALVE (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
191065A1
CONTROL VALVE
Hydrostatic Pump, Inc. 1 - 29
1шт.
1
NSS
NOT SOLD SEPARAT
BODY
1шт.
2
76349
PLUG,9/16" - 18 ORB
Incl. 3
2шт.
1978048C3
KIT
Inc. 4 - 6B
1шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
4
NSS
NOT SOLD SEPARAT
SHAFT
1шт.
5
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL
1шт.
6a
133756C1
GASKET
1шт.
6b
NSS
NOT SOLD SEPARAT
SETSCREW
1шт.
7
238-5016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
1шт.
9
REF
INSTRUCTION
LEVER, Not Used In This Application, See Figure 06-08, Ref. 20, For Lever
1шт.
10
493-11033
LOCK WASHER,Ext-Int Tooth, 5/16"
1шт.
11
425-105
NUT,5/16"-18, G5
1шт.
12
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
13
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
14
1272750C1
ORIFICE
0.057 in. dia., Used In Rice Applications
1шт.
15
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
1шт.
197909A2
ADAPTER,9/16" - 18 x 3/4"- 16
Valve To Switch, Special, Inc. 16 - 19B
1шт.
16
NSS
NOT SOLD SEPARAT
ADAPTER, Order 197909A2
1шт.
17
238-6008
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
1шт.
18
NSS
NOT SOLD SEPARAT
PIN, Neutral Start
1шт.
19
238-5004
O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro
1шт.
19a
211-1006
BALL,3/16" Dia
Neutral Start
1шт.
19b
84-1103
SET SCREW,Hex Soc, #10-32 x 3/16"
No. 10 NF x 3/16
2шт.
19c
86991254
SLEEVE,9.397mm ID x 12.7mm OD x 9.397mm L
Switch, Not Illustrated
1шт.
20
197514A2
SWITCH
Neutral Start
1шт.
20a
83-1106
SET SCREW,Hex Soc, #10-24 x 3/8"
No. 10 x 3/8
1шт.
20b
100-1125
SNAP RING,#25, Ext
2шт.
20c
38-1614
LOCK PIN,2.36mm OD x 22.23mm L
1шт.
21
NSS
NOT SOLD SEPARAT
CONNECTOR
1шт.
22
NSS
NOT SOLD SEPARAT
LINK
1шт.
23
NSS
NOT SOLD SEPARAT
LINK
1шт.
24
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
25
NSS
NOT SOLD SEPARAT
SPACER
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING
1шт.
27
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
28
NSS
NOT SOLD SEPARAT
SCREW
1шт.
29
NSS
NOT SOLD SEPARAT
SCREW
1шт.
Выбрано товаров: 39
