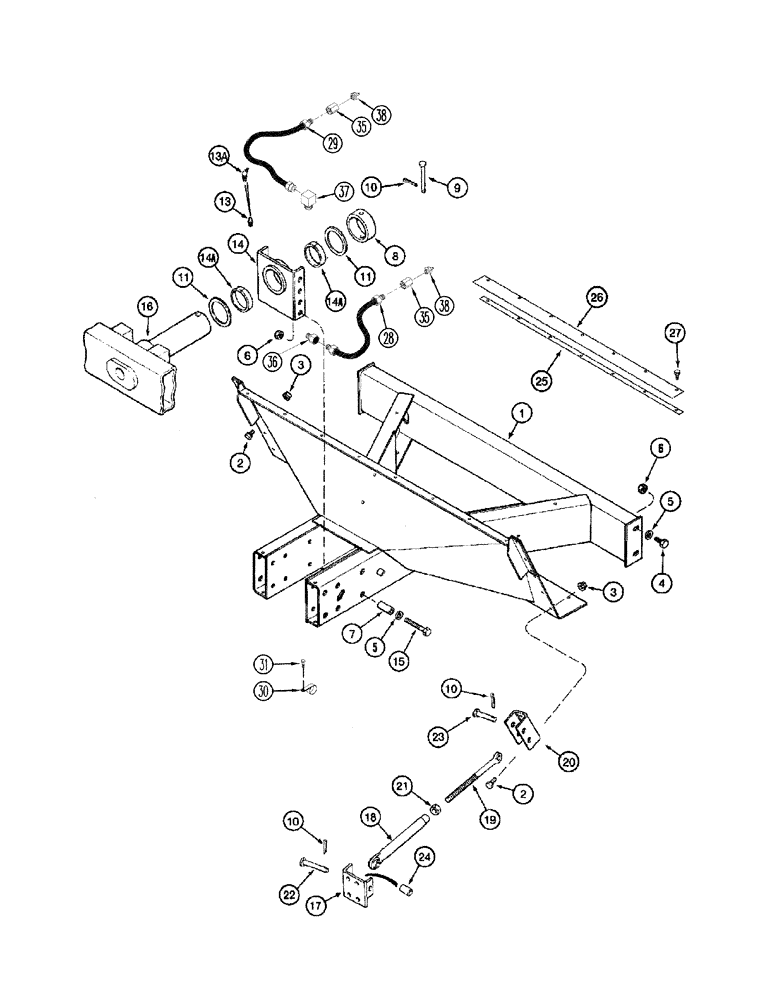

Запчасти Case IH 2344 (05-06[02]) - AXLE, STEERING - SUPPORT - 92 TO 120 INCH ADJUSTABLE AXLE - 108 TO 120 INCH ADJUSTABLE AXLE (04) - STEERING

1

413215A2

SUPPORT

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

3/4 x 1-1/2; 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

7

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

3/4 x 5-1/2; 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

2шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1-2шт.

13a

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4 tpr x 13/16

1шт.

14

182792C97

SUPPORT

Front, Inc. 14A

1шт.

14a

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

2шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

Axle, Steering, See Figure(s) 05-07, 05-09

1шт.

17

254425A1

SUPPORT

Rear

2шт.

18

181444C1

TIE-ROD,1" - 8

2шт.

19

181442C3

EYEBOLT,1" - 8 x 381mm

BOLT, EYE

2шт.

20

1541603C1

SUPPORT

Front

2шт.

21

425-1016

NUT,1"-8, G5

2шт.

22

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

7/8 x 5-1/2; 2

2шт.

23

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

7/8 x 3-1/2; 2

2шт.

24

254598A1

SPACER

2шт.

25

316710A1

BAR

Shoe Seal

1шт.

26

316712A1

SEAL

Rubber, Shoe

1шт.

27

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

6шт.

Used with 316710A1, 316712A1

1шт.

28

431749A1

HOSE

Grease, 892 mm (35 in)

1шт.

29

428293A1

FLEXIBLE HOSE

Grease, 1148 mm (45 in)

1шт.

30

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

31

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

33

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

35

F53473

LOCK NUT,1/8-27 NPSM

1/8

2шт.

36

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

37

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
