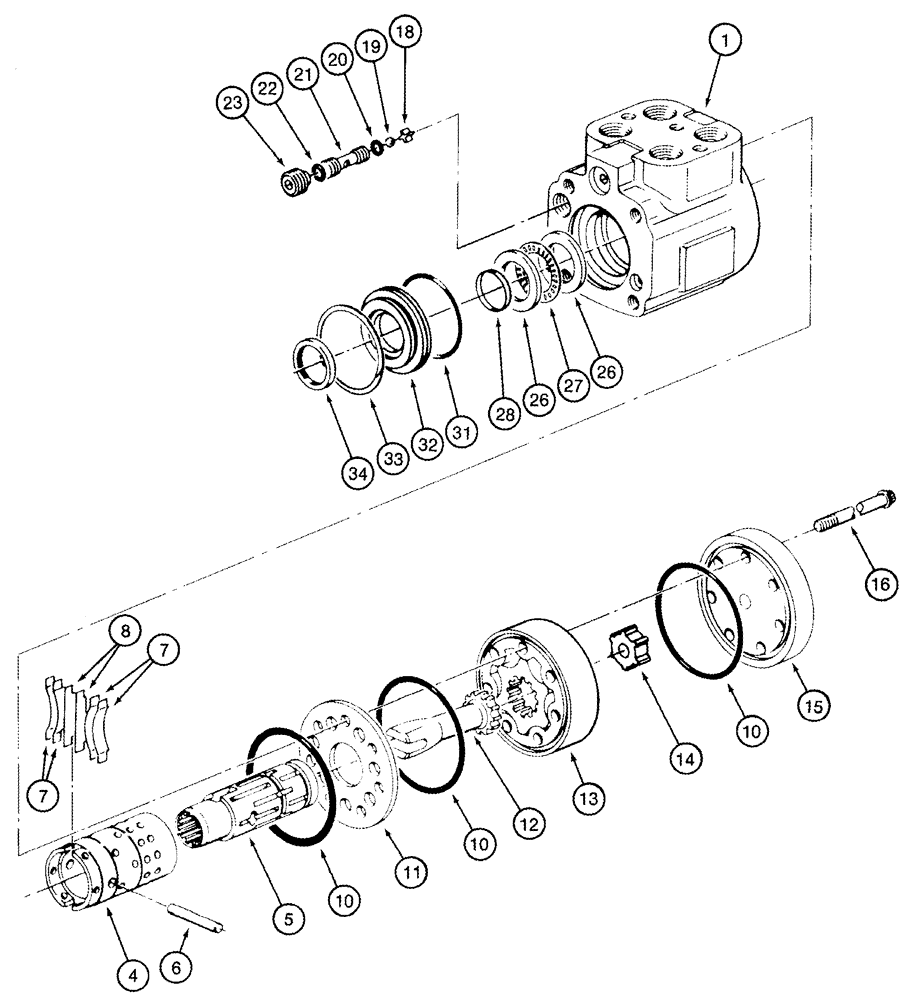

Запчасти Case IH 2344 (05-04) - PUMP ASSY - STEERING HAND - BSN JJC0174399 (04) - STEERING

123273A1

O-RING KIT

Inc. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

Housing Assy, Inc. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Check, Manual Steering, Not Illustrated

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Check, Inlet, Not Illustrated

1шт.

4

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

5

NSS

NOT SOLD SEPARAT

Spool

1шт.

6

L30888

PIN

1шт.

1986600C1

KIT

Inc. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

2шт.

10

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

3шт.

11

S113037

PLATE

1шт.

12

L30878

DRIVE SHAFT

1шт.

13

1343638C1

ROTOR

1шт.

14

143723A1

SPACER

1шт.

15

136493A1

COVER

1шт.

16

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

7шт.

18

L35368

RETAINER

1шт.

19

211-1010

BALL,5/16" OD

5/16; 24,CRS

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

D82806

VALVE SEAT

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

23

D82805

SET SCREW

1шт.

26

D82804

RACE

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

28

121179A1

SEAL

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

32

N13312

CYLINDER END CAP

1шт.

33

S110169

WASHER

1шт.

34

697494R91

OIL SEAL

1 ID

1шт.

1343658C3

SEAL KIT

Inc. 10, 20, 22, 28, 31, 34

1шт.
