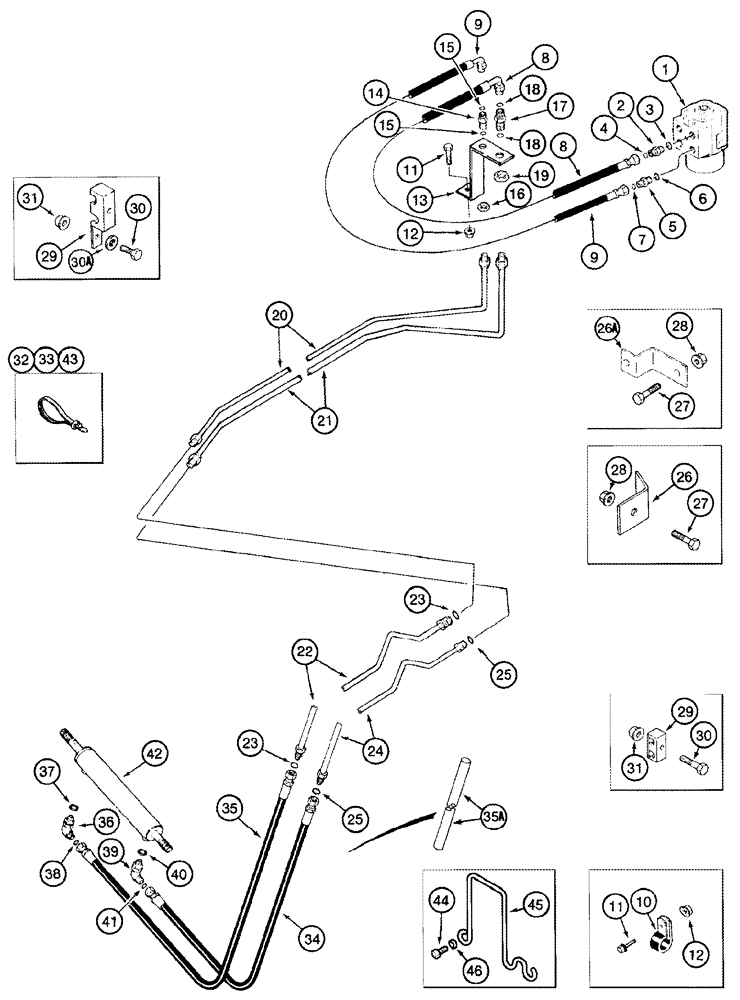

Запчасти Case IH 2344 (05-03) - HYDRAULICS - STEERING PUMP TO CYLINDER (04) - STEERING

1

123273A1

O-RING KIT

Steering, See Figure(s) 05-04, Serial Range: -JJC0174399

1шт.

1

123273A1

O-RING KIT

Steering, See Figure(s) 05-04, Serial Range: -JJC0174399

1шт.

1

387542A1

HYDRAULIC VALVE

Steering, See Figure(s) 05-05, Start Serial: JJC0174400

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Inc. 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

128016A3

HOSE

2340 mm (92-1/8 in), Left Hand Turn

1шт.

9

128018A3

HOSE

2340 mm (92-1/8 in), Right Hand Turn

1шт.

10

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

128539A1

SUPPORT

1шт.

14

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc, Inc. 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

17

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 18

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

20

128571A1

TUBE,0.375" OD, 1911,264 mm Length

9,52 mm dia, Upper Front

1шт.

21

128572A1

TUBE,0.5" OD, 1696,984 mm Length

12,70 mm dia, Lower Front

1шт.

22

135939A1

HYD TUBE,0.375" Diameter, 854, 445 mm Length

9,52 mm dia, Upper Rear, Serial Range: -JJC0174399

1шт.

22

364369A1

TUBE

Upper Rear, Serial Range: JJC0174400-JJC0174449

1шт.

22

419812A1

TUBE

863 mm (34 in), Upper Rear, Start Serial: JJC0174450

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

135940A1

HYD TUBE,0.5" Diameter, 805, 502 mm Length

12,70 mm dia, Lower Rear, Serial Range: -JJC0174399

1шт.

24

364370A1

TUBE

Lower Rear, Serial Range: JJC0174400-JJC0174449

1шт.

24

419813A1

TUBE

845 mm (33 in) Lower Rear, Start Serial: JJC0174450

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

178960C1

BRACKET

, Serial Range: -JJC0174399

1шт.

26a

196517C1

SUPPORT TUBE

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

29

1316613C1

CLAMP

Replaces 183825C1

4шт.

30a

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

32

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in

1шт.

33

702093C1

CABLE TIE

CABLE STRAP

2шт.

34

128083A2

FLEXIBLE HOSE

1727 mm (68 in), To Cylinder Closed End

1шт.

With Adjustable Axles

1шт.

With 108 to 120 Inch Power Guide Axles

1шт.

34

128084A2

FLEXIBLE HOSE

1960 mm (77-1/8 in), To Cylinder Closed End

1шт.

With 120 to 144 Inch Power Guide Axles

1шт.

35

128088A2

FLEXIBLE HOSE

1956 mm (77 in), To Cylinder Rod End

1шт.

With Adjustable Axles

1шт.

With 108 to 120 Inch Power Guide Axles

1шт.

35

128091A2

FLEXIBLE HOSE

2160 mm (85 in), To Cylinder Rod End

1шт.

With 120 to 144 Inch Power Guide Axles

1шт.

35a

229298A1

BOOT

1шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 37, 38

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 40, 41

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

51 ID x 229 mm strk, See Figure(s) 05-23, Serial Range: -JJC0174399

1шт.

With Power Guide Axles

1шт.

42

127913C93

STEERING CYLINDER

57 ID x 229 mm strk, See Figure(s) 05-24, Serial Range: -JJC0174399

1шт.

With Power Guide Axle

1шт.

42

1958024C1

STEERING CYLINDER

64 ID x 229 mm strk, See Figure(s) 05-24, Start Serial: JJC0174400

1шт.

87337226R

REMAN-HYD CYLINDER

2344 ( 1/98 - 1/02) Start Serial : JJCO174400 Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

43

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in)

1шт.

44

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

45

232707A1

GUIDE

1шт.

46

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

30

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
