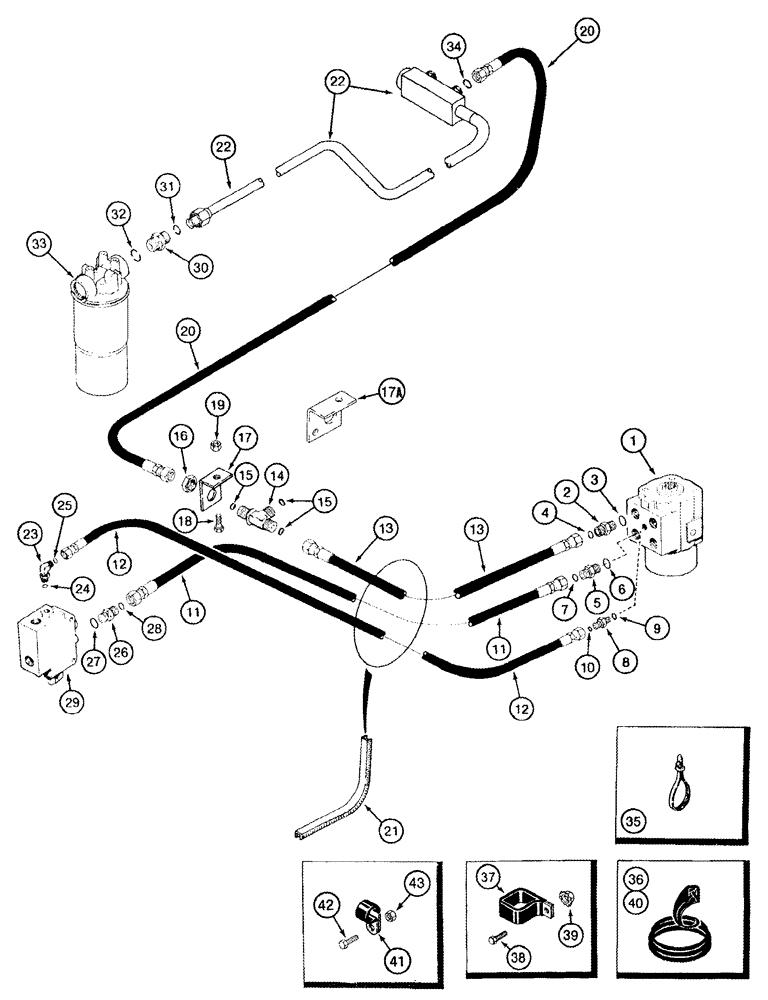

Запчасти Case IH 2344 (05-02) - HYDRAULICS - STEERING SUPPLY AND RETURN (04) - STEERING

1

123273A1

O-RING KIT

Steering, See Figure(s) 05-04, Serial Range: -JJC0174399

1шт.

1

387542A1

HYDRAULIC VALVE

Steering, See Figure(s) 05-05, Start Serial: JJC0174400

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Inc. 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 9, 10

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

128006A1

HOSE

2030 mm (80 in), Supply, Priority Valve to Steering Pump

1шт.

12

128012A1

HOSE

2130 mm (83-7/8 in), Steering Pump to Priority Valve

1шт.

13

128009A2

HOSE

850 mm (33-1/2 in), Return, at Steering, Serial Range: Pump-Filter

1шт.

14

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Inc. 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

16

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

17

141130A1

SUPPORT

No Longer Available, Order 305076A1

1шт.

17b

305076A1

SUPPORT

Replaces 141130A1

1шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

20

141128A1

HOSE

Hose, Return Steering, at Manifold Tube to Filter, 1220 mm (48 in)

1шт.

21

137818A1

GROMMET

210 mm (8-1/4 in), Serial Range: -JJC0174259

1шт.

21

324826A1

GROMMET

294 mm (11-5/8 in) JJC0174260 to

1шт.

22

124372A1

HYD TUBE

Manifold

1шт.

23

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 24, 25

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

11/16 fc x 3/4 Or, Inc. 27, 28

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

114851A2

VALVE

See Figure(s) 05-29

1шт.

30

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

1-7/16 fc x 1-5/8 Or, Inc. 31, 32

1шт.

32

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

33

87784C92

HYDRAULIC OIL FILTER

See Figure(s) 08-03

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in

1шт.

36

121574A1

SEAL PROTECTION

254 mm (10 in), Cut From 1330108C2

1шт.

37

1301387C2

CLIP

2 in ID

1шт.

38

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

39

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

40

126046A1

GASKET,287.02mm L

292 mm (11-1/2 in), Cut From 196707C1

1шт.

41

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

42

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

43

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

31

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
