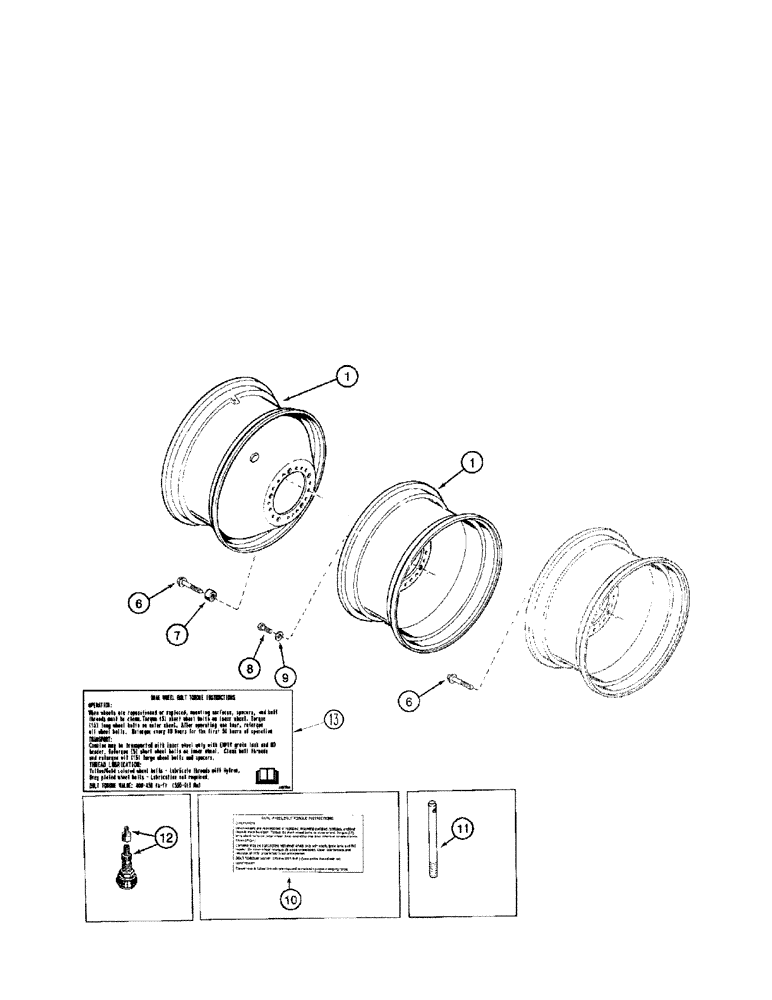

Запчасти Case IH 2344 (06-24) - WHEELS - DRIVE - DUAL (03) - POWER TRAIN

1

184352C2

WHEEL

18.4 x 38 Inch Tire

4шт.

1

184458C2

WHEEL

18.4 x 42 Inch Tire

4шт.

2

417194C1

PLUG

Not Illustrated

4шт.

Used with Tubeless Tires

1шт.

2

383697R1

PLUG

Not Illustrated

4шт.

Used with Tube Type Tires

1шт.

4

179482C1

VALVE STEM

7/16 in dia, Not Illustrated

4шт.

Used with Tubeless Tires

1шт.

5

407184R1

VALVE

Not Illustrated

4шт.

Used with Tubeless Tires

1шт.

6

130934A2

BOLT

M20 x 90; 10.9 to JJC0174449

1шт.

6

427373A1

BOLT

M20 x 85; 10.9, Start Serial: JJC0174450

1шт.

6

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

M20 x 70; 10.9, If Used, Serial Range: -JJC0174399

10шт.

6

130965A2

BOLT

M20 x 70; 10.9, If Used JJC0174400 to

10шт.

7

130871A2

SPACER

, Serial Range: -JJC0174399

1шт.

7

130871A3

SPACER

, Start Serial: JJC0174400

1шт.

8

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

M20 x 45; 10.9, No Longer Used, Order 130934A1

1шт.

9

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm, If Used

1шт.

10

135786A2

DECAL

Dual Wheel Bolt Torque, Serial Range: -JJC0174449

2шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

2шт.

12

1984006C2

VALVE STEM

Used With Tubeless Tires, If Used

2шт.

13

448670A1

DECAL

Dual Wheel Bolt Torque

2шт.
