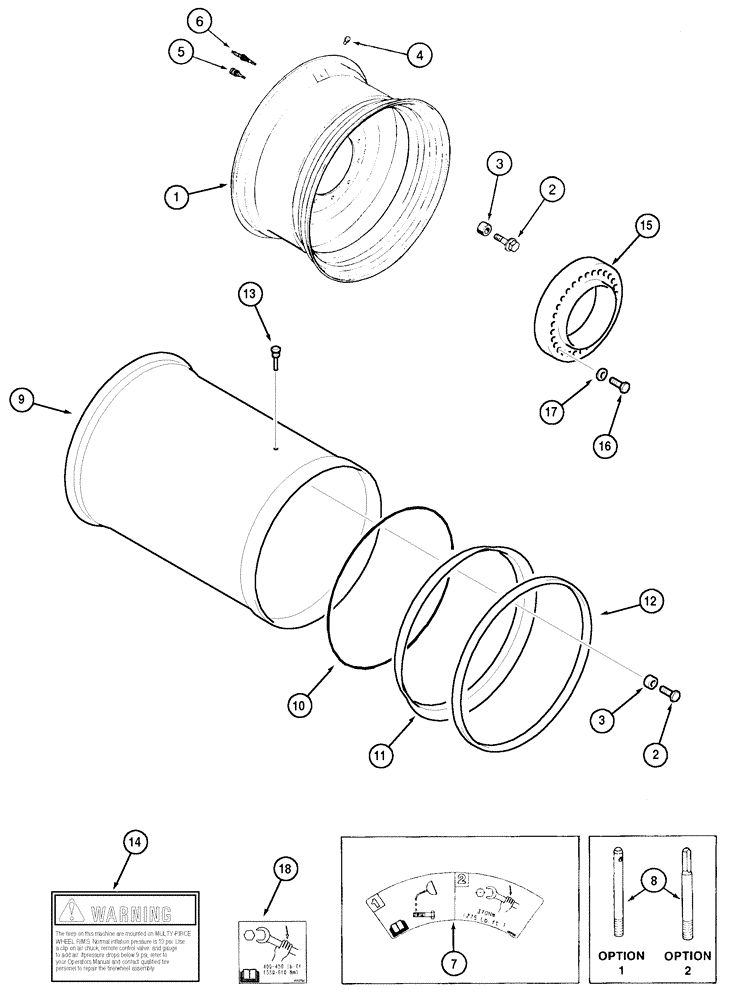

Запчасти Case IH 2344 (06-23) - WHEELS - DRIVE - SINGLE (03) - POWER TRAIN

1

184482C4

WHEEL

24.5 x 32 Inch Tire, With 10 Bolt Mounting

2шт.

Used with Standard and Heavy Duty Final Drives

1шт.

1a

184480C4

WHEEL

30.5L x 32 Inch Tire, With 10 Bolt Mounting, Not Illustrated

2шт.

Used with Standard and Heavy Duty Final Drives

1шт.

2

130965A2

BOLT

M20 x 70; 10.9, Wheel Mounting, Serial Range: -JJC0174449

1шт.

2

427374A1

BOLT

Flange, M20 x 70; 10.9, Start Serial: JJC0174450

1шт.

3

130871A2

SPACER

to JJC0174399

1шт.

3

130871A3

SPACER

, Start Serial: JJC0174400

1шт.

4

417194C1

PLUG

2шт.

Used with Tubeless Tires

1шт.

4

383697R1

PLUG

2шт.

Used with Tube Type Tires

1шт.

5

179482C1

VALVE STEM

7/16 in dia

2шт.

Used with Tubeless Tires

1шт.

6

407184R1

VALVE

2шт.

Used with Tubeless Tires

1шт.

7

135780A2

DECAL

Single Drive Wheel Bolt Torque, Serial Range: -JJC0174449

2шт.

8

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter, Wheel Mounting

2шт.

9

237825A1

RIM

WHEEL 68 x 50 in, 16pr hf3 Hi-Flotation Tire

2шт.

10

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

2шт.

11

237824A1

BACK-UP RING

Side Wheel

2шт.

12

184472C1

RING

2шт.

13

1984006C2

VALVE STEM

2шт.

Used with Tubeless Tires

1шт.

14

REF

INSTRUCTION

Decal, Warning, Multi Piece Rims, See Figure(s) 09H-21, REF 15

2шт.

15

135171A2

SPACER

76 mm

2шт.

16

514-1224

BOLT,Hex, M20 x 1.5 x 125mm, Cl 10.9

M20 x 125; 10.9

20шт.

17

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm

20шт.

18

403425A1

DECAL

Single Drive Wheel bolt Torque, Start Serial: JJC0174450

2шт.
