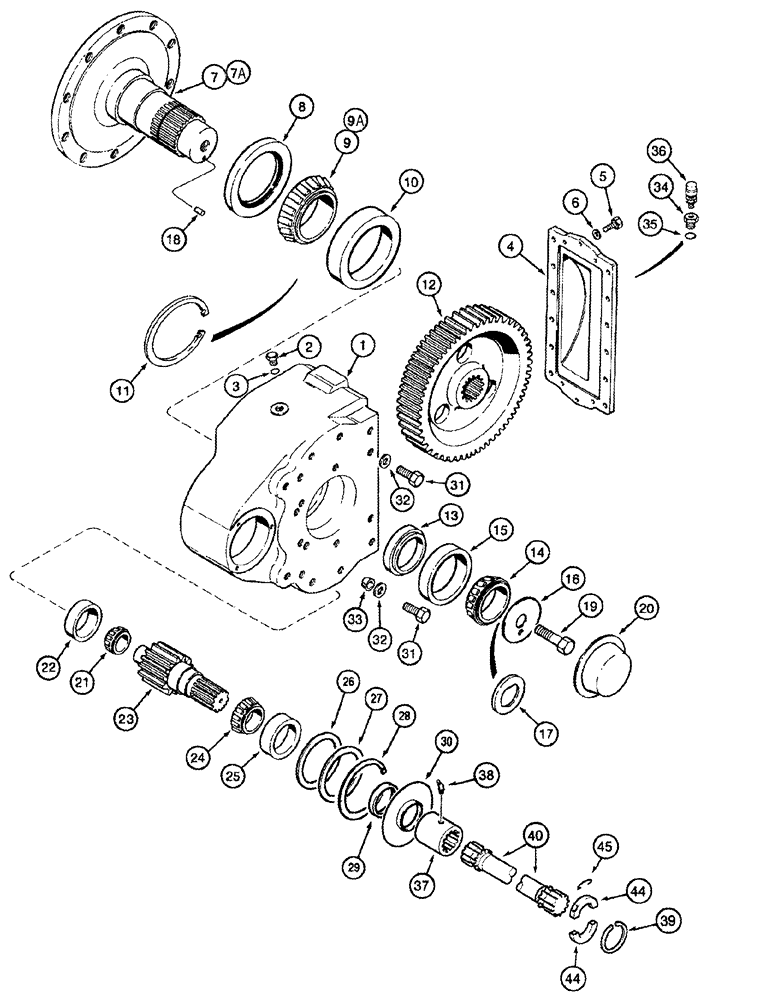

Запчасти Case IH 2344 (06-22) - FINAL DRIVE ASSY - HEAVY DUTY (03) - POWER TRAIN

1997415C4

FINAL DRIVE

FINAL REDUCTION GEARBOX Final, Inc. 1 - 30 JJC0174325 to

2шт.

1997415C4R

REMAN-FINAL DRIVE

Reman for New PN 1997415C4

2шт.

1997415C4C

CORE-FINAL DRIVE

Return Part Number, Use To Return Core For Credit

2шт.

1997415C3

REDUCER

Final, Inc. 1 - 30, Serial Range: -JJC0174324

2шт.

1

135285A2

HOUSING

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

135286A1

COVER

1шт.

5

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

26шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

26шт.

7

135288A2

SHAFT

Output, Serial Range: -JJC0174324

1шт.

Used with 1997415C3

1шт.

7a

335948A1

SHAFT

Output, Start Serial: JJC0174325

1шт.

Used with 1997415C4

1шт.

8

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

1шт.

9

135648A1

ROLLER BEARING,133.35mm ID x 46.04mm W

, Serial Range: -JJC0174324

1шт.

Used with 1997415C3

1шт.

9a

335947A1

ROLLER BEARING,133.35mm ID x 46.04mm W

, Start Serial: JJC0174325

1шт.

Used with 1997415C4

1шт.

10

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

1шт.

11

135297A1

CIRCLIP

1шт.

12

135287A1

PINION

73T, Final Drive

1шт.

13

135307A1

SPACER

1шт.

14

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

1шт.

15

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

1шт.

16

135289A1

RETAINER

1шт.

17

135299A1

SHIM,0.051mm Thk

(0.002")

1шт.

17

135300A1

SHIM,0.457mm Thk

(0.018")

1шт.

17

135301A1

SHIM,0.635mm Thk

(0.025")

1шт.

18

37-1512

DOWEL,5/16" x 3/4"

5/16 x 3/4

1шт.

19

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

1шт.

20

135296A1

BEARING COVER

1шт.

21

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

1шт.

22

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

1шт.

23

135290A1

SHAFT

12T, Input

1шт.

24

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

1шт.

25

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

1шт.

26

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

(0.002")

1шт.

26

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

(0.018")

1шт.

26

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

(0.025")

1шт.

27

193652A1

WASHER

1шт.

28

101-21412

SNAP RING,#412, 4.430", Int

1шт.

29

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

1шт.

30

135291A1

GUARD

1шт.

31

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

14шт.

32

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm

14шт.

33

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

4шт.

34

135950A1

ADAPTER

1/8 PT x 1-1/16 Or, Inc. 35

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1/8 PT x 1, Inc. Felt Washer

2шт.

37

248600A1

COUPLING

Inc. 38

4шт.

38

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1/4 dr type x 3/4, Degree 65

1шт.

39

123763A1

SNAP RING

4шт.

40

242842A1

SHAFT

764 mm, Left Hand

1шт.

Used without Axle Extensions

1шт.

40

242841A1

SHAFT

428 mm, Right Hand

1шт.

Used without Axle Extensions

1шт.

40

280744A1

SHAFT

1059 mm, Left Hand

1шт.

Use with 12 Inch Extension

1шт.

40

280745A1

SHAFT

723 mm, Right Hand

1шт.

Use with 12 Inch Extension

1шт.

40

242844A1

SHAFT

1217 mm, Left Hand

1шт.

Use with 18 Inch Extension

1шт.

40

242843A1

SHAFT

881 mm, Right Hand

1шт.

Use with 18 Inch Extension

1шт.

44

244549A1

COLLAR

Inc. 44A

4шт.

44a

61-33116

HEX SOC SCREW,5/16"-18 x 1"

Not Illustrated

1шт.

45

245105A2

CLIP

4шт.
