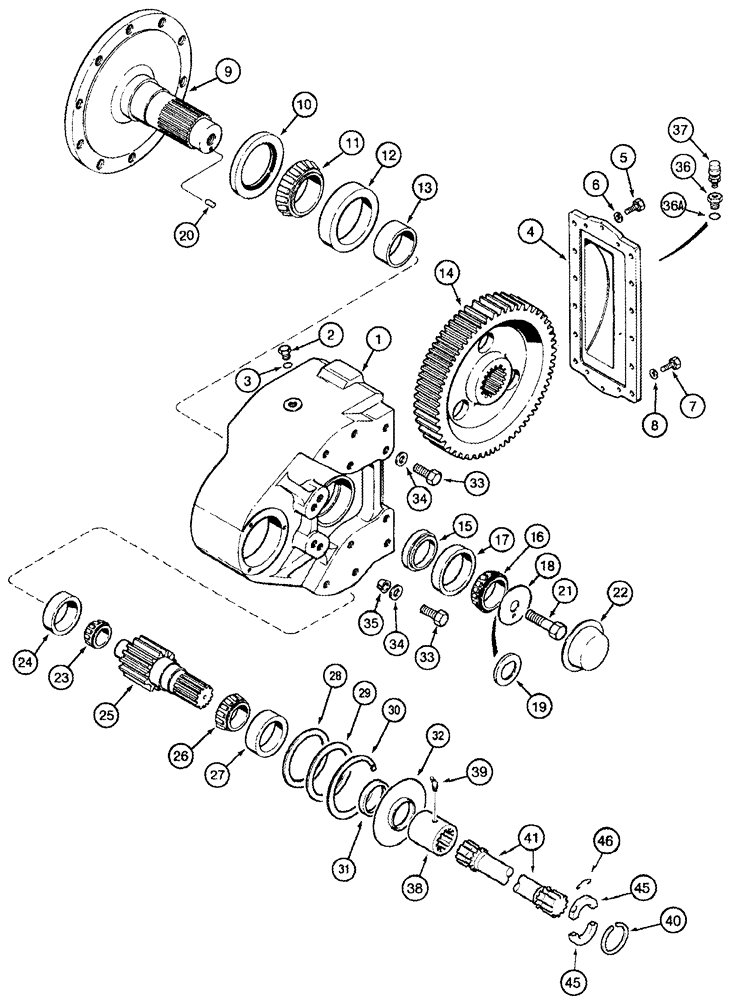

Запчасти Case IH 2344 (06-21) - FINAL DRIVE ASSY - STANDARD - BSN JJC0174359 (03) - POWER TRAIN

141577A2

REDUCER

Inc. 1 - 32

2шт.

141577A2R

REMAN-FINAL DRIVE

REMAN - Final Drive

2шт.

141577A2C

CORE- FINAL DRIVE

Core-Final DRive Return Part Number Final Drive

2шт.

1

140780A2

HOUSING

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl.3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

141578A1

COVER

1шт.

5

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

6

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

7

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

8

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

6шт.

9

138279A1

HALF SHAFT

1шт.

10

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

1шт.

11

283444C91

BEARING ASSY,85.03mm ID x 46.67mm W

1шт.

12

18241H

BEARING, CUP,150.09mm OD x 36.51mm W

1шт.

13

130809C1

SPACER

1шт.

14

138280A1

SLEWING RING

73T, Drive

1шт.

15

130808C1

SPACER

1шт.

16

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

1шт.

17

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

1шт.

18

135289A1

RETAINER

1шт.

19

135299A1

SHIM,0.051mm Thk

(0.002")

1шт.

19

135300A1

SHIM,0.457mm Thk

(0.018")

1шт.

19

135301A1

SHIM,0.635mm Thk

(0.025")

1шт.

20

37-1512

DOWEL,5/16" x 3/4"

5/16 x 3/4

1шт.

21

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

1шт.

22

403895R1

COVER

1шт.

23

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

1-3/4 ID

1шт.

24

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

3-11/16 OD

1шт.

25

135290A1

SHAFT

12T, Input

1шт.

26

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

1шт.

27

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

1шт.

28

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

(0.002")

1шт.

28

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

(0.018")

1шт.

28

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

(0.025")

1шт.

29

193652A1

WASHER

1шт.

30

101-21412

SNAP RING,#412, 4.430", Int

1шт.

31

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

1шт.

32

135291A1

GUARD

1шт.

33

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

26шт.

34

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm

26шт.

35

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

4шт.

36

135950A1

ADAPTER

1/8 PT x 1-1/16 Or, Inc. 36A

2шт.

36a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1/8 PT x 1, Inc. Felt Washer

2шт.

38

248600A1

COUPLING

Inc. 39

4шт.

39

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1/4 dr type x 3/4, Degree 65

1шт.

40

123763A1

SNAP RING

4шт.

41

242842A1

SHAFT

764 mm, Left Hand

1шт.

Used without Axle Extensions

1шт.

41

242841A1

SHAFT

428 mm, Right Hand

1шт.

Used without Axle Extensions

1шт.

41

280744A1

SHAFT

1059 mm, Left Hand

1шт.

Use with 12 Inch Extension

1шт.

41

280745A1

SHAFT

723 mm, Right Hand

1шт.

Use with 12 Inch Extension

1шт.

41

242844A1

SHAFT

1217 mm, Left Hand

1шт.

Use with 18 Inch Extension

1шт.

41

242843A1

SHAFT

881 mm, Right Hand

1шт.

Use with 18 Inch Extension

1шт.

45

244549A1

COLLAR

Inc. 45A

4шт.

45a

61-33116

HEX SOC SCREW,5/16"-18 x 1"

Not Illustrated

1шт.

46

245105A2

CLIP

4шт.
