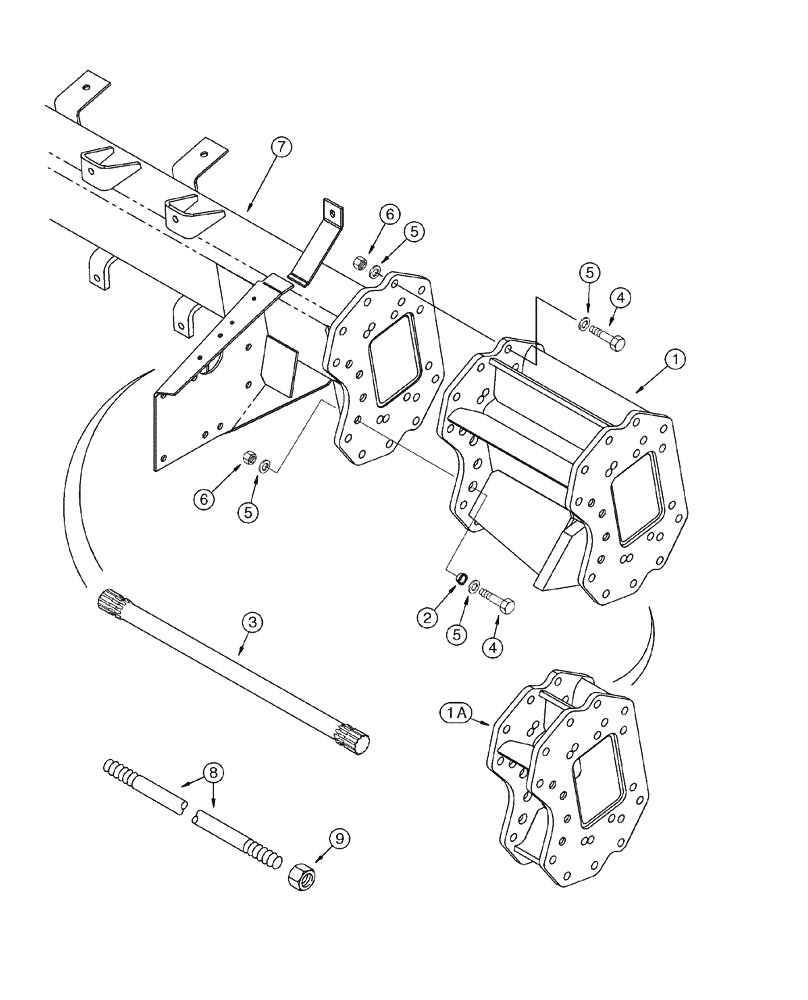

Запчасти Case IH 2344 (06-20) - AXLE - EXTENSION (03) - POWER TRAIN

1

241106A1

EXTENSION ASSY.

18 in, Left Hand

1шт.

1

241107A1

EXTENSION ASSY.

18 in, Right Hand

1шт.

1a

240851A1

EXTENSION

12 in

2шт.

2

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

1шт.

3

REF

INSTRUCTION

Shaft, Axle, See Figure(s) 06-21, 06-22

1шт.

4

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm

1шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

1шт.

7

181921A4

AXLE

76 in

1шт.

8

335400A1

REINFORCEMENT

2960 mm, Replaces 184358C1

1шт.

Use with 18 Inch Extension

1шт.

8

280671A1

STEM

2624 mm

1шт.

Use with 12 Inch Extension

1шт.

9

232-41320

LOCK NUT,1 1/4"-7, GC

4шт.

137138A1

SUPPORT

Dual Rod, Welded to Axle, Not Illustrated

2шт.
