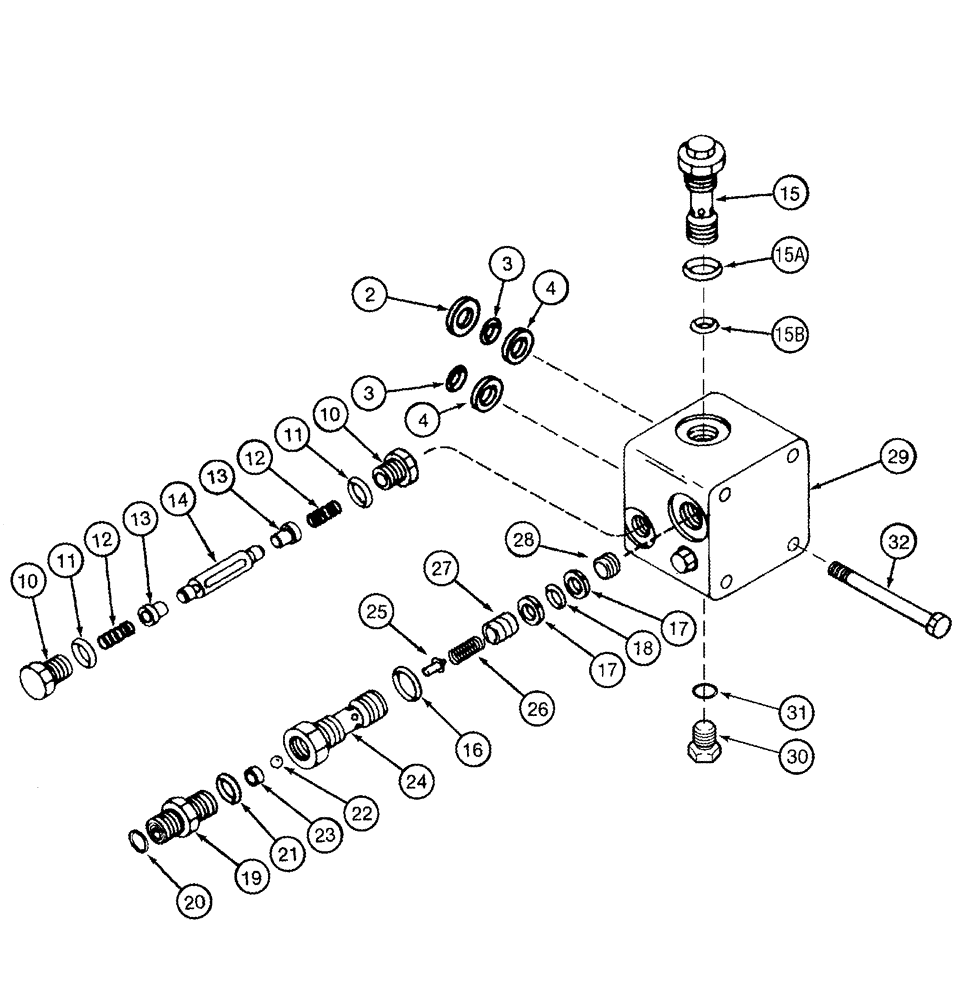

Запчасти Case IH 2344 (06-13) - MOTOR ASSY - HYDROSTATIC - RELIEF VALVE BLOCK (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
127933A2
MOTOR, HYDRAULIC
See Figure(s) 06-11, Serial Range: -JJC0174400
1шт.
400474A1
MOTOR, HYDRAULIC
See Figure(s) 06-12, Start Serial: JJC0174401
1шт.
193646A2
BLOCK
Relief Valve, Inc. 2 - 31
1шт.
2
239-5018
O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro
1шт.
3
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
2шт.
4
631458C1
RING
2шт.
145559C91
KIT
Shuttle Valve, Inc. 10 - 14
1шт.
10
86512512
PLUG,7/8" - 14 ORB
Incl. 11
2шт.
11
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
12
145560C1
SPRING
2шт.
13
NSS
NOT SOLD SEPARAT
Valve, Regulator, Shuttle
2шт.
14
NSS
NOT SOLD SEPARAT
Spool
1шт.
15
140761C1
VALVE PRESSURE RELIE
Low, Incl. Ref 15A, 15B
1шт.
15a
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
15b
238-6117
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
1шт.
193647A1
VALVE PRESSURE RELIE
Feathering Relief, Inc. 393885R92, 222167A1, REF 16 - 28
2шт.
393885R92
SEAL KIT
Relief Valve Seal, Inc. 16 - 18
3шт.
16
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
17
NSS
NOT SOLD SEPARAT
Ring, Backup
2шт.
18
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
222167A1
REPAIR KIT
Check Valve, Inc. 19 - 22
1шт.
19
NSS
NOT SOLD SEPARAT
Connector
1шт.
20
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
21
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
22
211-1008
BALL,1/4" Dia
24, CRS
1шт.
23
NSS
NOT SOLD SEPARAT
Bushing, Ball Guide
1шт.
24
NSS
NOT SOLD SEPARAT
Housing
1шт.
25
NSS
NOT SOLD SEPARAT
Orifice
1шт.
26
NSS
NOT SOLD SEPARAT
Spring
1шт.
27
NSS
NOT SOLD SEPARAT
Piston
1шт.
28
NSS
NOT SOLD SEPARAT
Plug
1шт.
29
NSS
NOT SOLD SEPARAT
Block
1шт.
30
9672438
PLUG,7/16" - 20 ORB
Incl. 31
1шт.
31
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
32
413-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
3/8 x 4
4шт.
Выбрано товаров: 36
