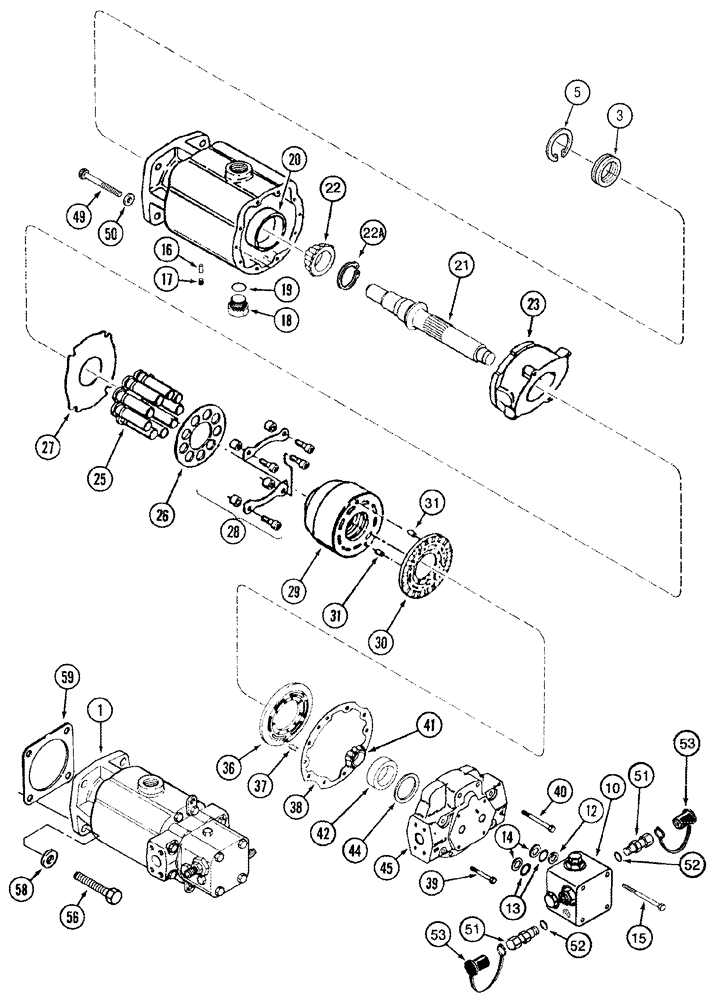

Запчасти Case IH 2344 (06-12) - MOTOR ASSY - HYDROSTATIC - SINGLE SPEED - ASN JJC0174401 (03) - POWER TRAIN

400474A1C

CORE-HYDRAULIC PUMP

Use To Return Core For Credit

1шт.

1

400474A1

MOTOR, HYDRAULIC

Inc. 2 - 53, Part Number Stamped On Part

1шт.

403145A1

SEAL

Seal, Shaft, Inc. 3, 5

1шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

100-21250

SNAP RING,2.50", Int, #250

1шт.

10

193646A2

BLOCK

Relief Valve, See Figure(s) 06-11 & 06-13

1шт.

140747C92

SEAL KIT

Inc. 12 - 14, Seal, Valve Block

1шт.

12

NSS

NOT SOLD SEPARAT

3/4 x 7/8 x 1/16, Ring, Square

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

4шт.

16

37-1516

DOWEL,5/16" x 1"

5/16 x 1

1шт.

17

86637724

PLUG,1/8" - 27 NPT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

3-1/2 OD

1шт.

21

403146A1

SHAFT

63.6 cc, Inc. 22, 22A

1шт.

21

403148A1

SHAFT

75.28 cc, Inc. 22, 22A

1шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

22a

NSS

NOT SOLD SEPARAT

Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

25

NSS

NOT SOLD SEPARAT

Piston

9шт.

26

NSS

NOT SOLD SEPARAT

Plate

1шт.

27

NSS

NOT SOLD SEPARAT

Plate

1шт.

28

NSS

NOT SOLD SEPARAT

Kit

1шт.

29

NSS

NOT SOLD SEPARAT

Barrel

1шт.

30

NSS

NOT SOLD SEPARAT

Plate

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

NSS

NOT SOLD SEPARAT

Plate

1шт.

37

37-1510

DOWEL,5/16" x 5/8"

3шт.

38

92735C2

GASKET

1шт.

39

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

40

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

5/8 ID

1шт.

42

140759C1

BEARING CUP

2-1/4 OD

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

44

140760C91

SHIM KIT

Bearing Shim

1шт.

45

NSS

NOT SOLD SEPARAT

Cover

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

2шт.

51

R55912

NIPPLE

2шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

53

H434163

DUST CAP

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

1шт.
