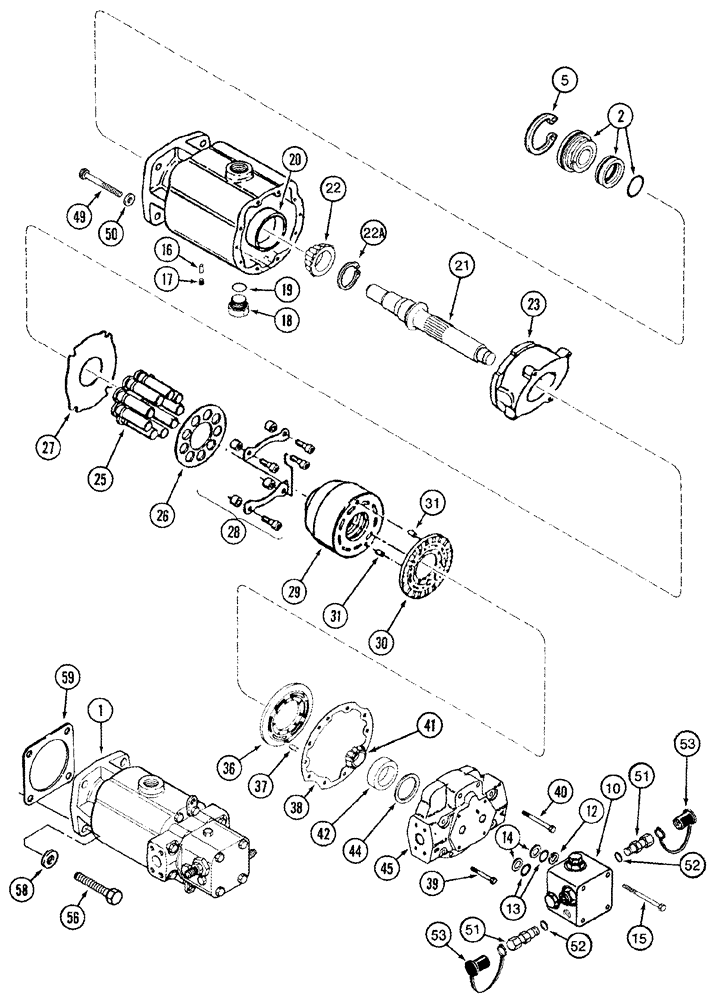

Запчасти Case IH 2344 (06-11) - MOTOR ASSY - HYDROSTATIC - SINGLE SPEED - BSN JJC0174400 (03) - POWER TRAIN

1

127933A2

MOTOR, HYDRAULIC

Inc. 2 - 53, Part Number Stamped On Part

1шт.

2

1346205C1

SEAL KIT

Inc. 238-5145, 238-5131, Seal, Shaft, Four-Piece

1шт.

2

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

2

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

5

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

10

193646A2

BLOCK

Relief Valve, See Figure(s) 06-12 & 06-13

1шт.

140747C92

SEAL KIT

Inc. 12 - 14, Seal, Valve Block

1шт.

12

NSS

NOT SOLD SEPARAT

3/4 x 7/8 x 1/16, Ring, Square

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

4шт.

16

37-1516

DOWEL,5/16" x 1"

5/16 x 1

1шт.

17

86637724

PLUG,1/8" - 27 NPT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

3-1/2 OD

1шт.

21

1346188C1

SHAFT

Inc. 22, 22A

1шт.

22

92742C1

TAPERED BEARING

1-7/8 ID

1шт.

22a

101-11187

SNAP RING,#187, 1.759", Ext

1шт.

23

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

1978053C1

KIT

Rotating, Cylinder, Inc. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

Piston

9шт.

26

NSS

NOT SOLD SEPARAT

Plate

1шт.

27

NSS

NOT SOLD SEPARAT

Plate

1шт.

28

NSS

NOT SOLD SEPARAT

Kit

1шт.

29

NSS

NOT SOLD SEPARAT

Barrel

1шт.

30

NSS

NOT SOLD SEPARAT

Plate

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

92732C1

PLATE

1шт.

37

37-1510

DOWEL,5/16" x 5/8"

3шт.

38

92735C2

GASKET

1шт.

39

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

40

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

5/8 ID

1шт.

42

140759C1

BEARING CUP

2-1/4 OD

1шт.

44

140760C91

SHIM KIT

Bearing Shim

1шт.

45

NSS

NOT SOLD SEPARAT

Cover

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

2шт.

51

R55912

NIPPLE

2шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

53

H434163

DUST CAP

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

1шт.
