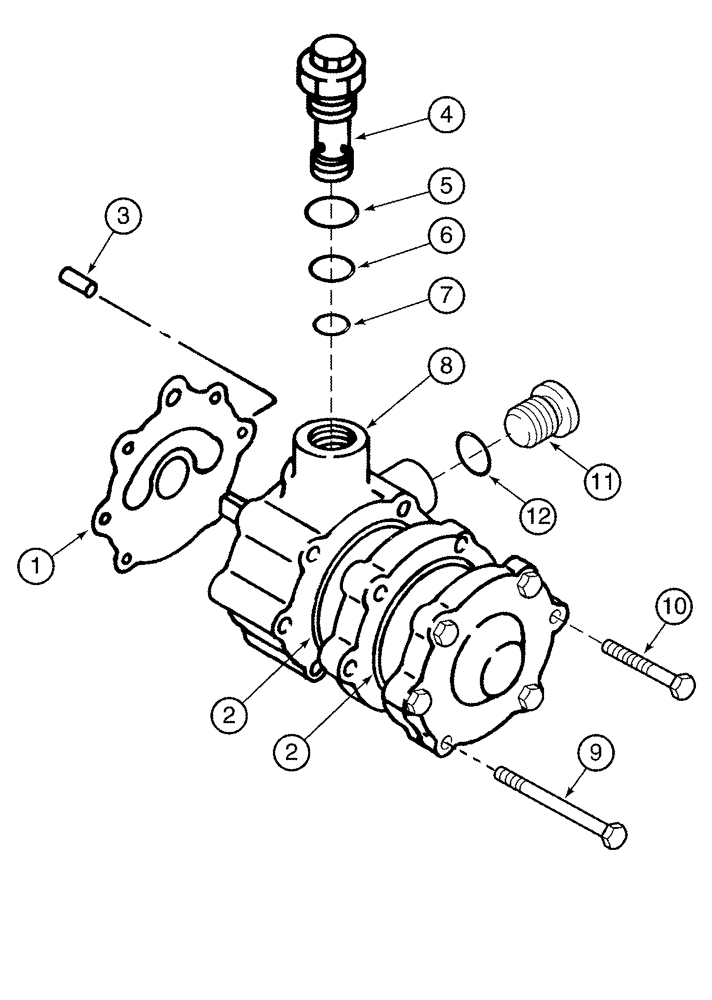

Запчасти Case IH 2344 (06-10) - PUMP ASSY - HYDROSTATIC - CHARGE PUMP (03) - POWER TRAIN

1330477C4

PUMP, HYDROSTATIC

HYDROSTATIC PUMP See Figure(s) 06-07, Serial Range: -JJC0174400

1шт.

400477A1

PUMP, HYDRAULIC,75.28 CC

See Figure(s) 06-08, Start Serial: JJC0174401

1шт.

133761C91

PUMP

Charge, Inc. 1 - 10

1шт.

1

133760C2

GASKET

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

2шт.

3

37-1510

DOWEL,5/16" x 5/8"

2шт.

4

140771C1

VALVE

Inc. 5 - 6, Low Pressure

1шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

6

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

326-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 8

4шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

11

86512512

PLUG,7/8" - 14 ORB

Incl. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

255081A1

SEAL KIT

Seal, Charge Pump, Inc.1, 5, 6, 12

1шт.
