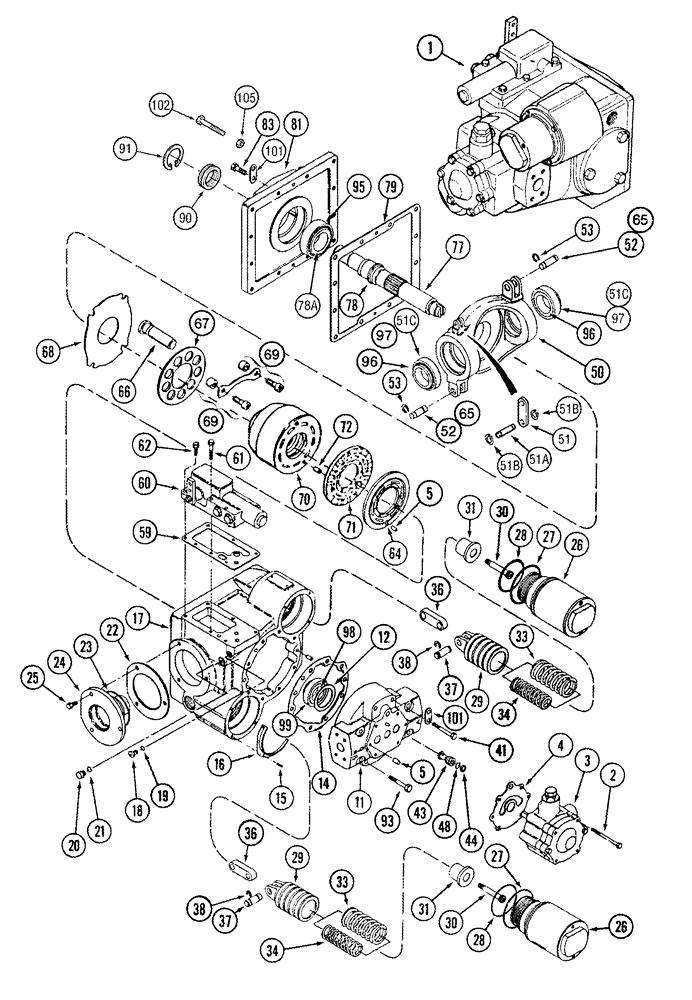

Запчасти Case IH 2344 (06-08) - PUMP ASSY - HYDROSTATIC - ASN JJC0174401 (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
400477A1C
CORE-HYDRAULIC PUMP
Use To Return Core For Credit When Using a Remanufactured Assembly
1шт.
1
400477A1
PUMP, HYDRAULIC,75.28 CC
Part Number Stamped On Part, Inc. 2 - 99
1шт.
2
413-556
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
5/16 x 3-1/2
4шт.
3
133761C91
PUMP
Charge, See Figure(s) 06-10
1шт.
5
37-1510
DOWEL,5/16" x 5/8"
5шт.
11
NSS
NOT SOLD SEPARAT
Cover, End Pump
1шт.
12
140783C91
PACKAGE
End Cover
1шт.
14
140756C2
GASKET
1шт.
15
461-3086
HEX SOC SCREW,#8 - 32 x 3/8"
No. 8 x 3/8
6шт.
16
140774C1
RETAINER
Servo Piston
2шт.
17
NSS
NOT SOLD SEPARAT
Housing, Pump
1шт.
18
278548
PLUG,Hex, 7/16"-20 ORB
Incl 19
1шт.
19
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
20
9672438
PLUG,7/16" - 20 ORB
Incl. 21
1шт.
21
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
140763C91
SHIM KIT
Trunnion Bearing, Inc. 22
1шт.
22
NSS
NOT SOLD SEPARAT
0,002 in, Shim
6шт.
22
NSS
NOT SOLD SEPARAT
0,005 in, Shim
4шт.
22
NSS
NOT SOLD SEPARAT
0,010 in, Shim
4шт.
22
NSS
NOT SOLD SEPARAT
0,015 in, Shim
4шт.
22
NSS
NOT SOLD SEPARAT
0,025 in, Shim
4шт.
23
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
2шт.
24
NSS
NOT SOLD SEPARAT
Trunnion
1шт.
25
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
6шт.
26
NSS
NOT SOLD SEPARAT
Sleeve, Servo
2шт.
27
238-5147
O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro
2шт.
28
238-5143
O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro
2шт.
29
NSS
NOT SOLD SEPARAT
Piston Assy, Servo
2шт.
30
NSS
NOT SOLD SEPARAT
Screw
1шт.
31
NSS
NOT SOLD SEPARAT
Retainer
1шт.
33
NSS
NOT SOLD SEPARAT
Spring
1шт.
34
NSS
NOT SOLD SEPARAT
Spring
1шт.
36
NSS
NOT SOLD SEPARAT
Link
1шт.
37
140766C1
PIN,14.22mm OD x 39.12mm L
1шт.
38
100-1375
SNAP RING,#75, Ext
2шт.
41
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
6шт.
48
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
50
NSS
NOT SOLD SEPARAT
Plate, Swash
1шт.
51
NSS
NOT SOLD SEPARAT
Link
1шт.
51a
140765C1
PIN
1шт.
51b
100-1125
SNAP RING,#25, Ext
2шт.
51c
NSS
NOT SOLD SEPARAT
Bearing, Cup
2шт.
52
140766C1
PIN,14.22mm OD x 39.12mm L
2шт.
53
100-1356
SNAP RING,#56, Ext
4шт.
59
133756C1
GASKET
1шт.
60
191065A1
CONTROL VALVE
Hydrostatic Pump, See Figure(s) 06-09
1шт.
61
326-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8
2шт.
62
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
64
NSS
NOT SOLD SEPARAT
Plate
1шт.
65
37-1510
DOWEL,5/16" x 5/8"
2шт.
66
NSS
NOT SOLD SEPARAT
Piston
9шт.
67
NSS
NOT SOLD SEPARAT
Plate
1шт.
68
NSS
NOT SOLD SEPARAT
Plate
1шт.
69
NSS
NOT SOLD SEPARAT
Kit
1шт.
70
NSS
NOT SOLD SEPARAT
Barrel
1шт.
71
NSS
NOT SOLD SEPARAT
Plate
1шт.
72
37-1510
DOWEL,5/16" x 5/8"
7шт.
77
403148A1
SHAFT
Input, Inc. 78, 78A
1шт.
78
NSS
NOT SOLD SEPARAT
Ring
1шт.
78a
NSS
NOT SOLD SEPARAT
Bearing, Cone
1шт.
79
142414C1
GASKET
1шт.
81
NSS
NOT SOLD SEPARAT
Flange
1шт.
83
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
12шт.
403145A1
SEAL
Seal, Shaft, Inc. 90, 91
1шт.
90
NSS
NOT SOLD SEPARAT
Seal
1шт.
91
100-21250
SNAP RING,2.50", Int, #250
1шт.
93
326-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
2шт.
95
317706C1
BEARING, CUP,88.925 mm OD x 25.6 mm
3-1/2 OD
1шт.
96
NSS
NOT SOLD SEPARAT
Bearing, Cone
2шт.
97
NSS
NOT SOLD SEPARAT
Bearing, Cup
2шт.
98
140758C91
ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"
5/8 ID
1шт.
99
140759C1
BEARING CUP
2-1/4 OD
1шт.
101
NSS
NOT SOLD SEPARAT
Strap, Shipping, Shown For Reference Only
2шт.
102
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
105
329-288
FLANGE NUT,Flg, 1/2"-13, G8
4шт.
Выбрано товаров: 78
