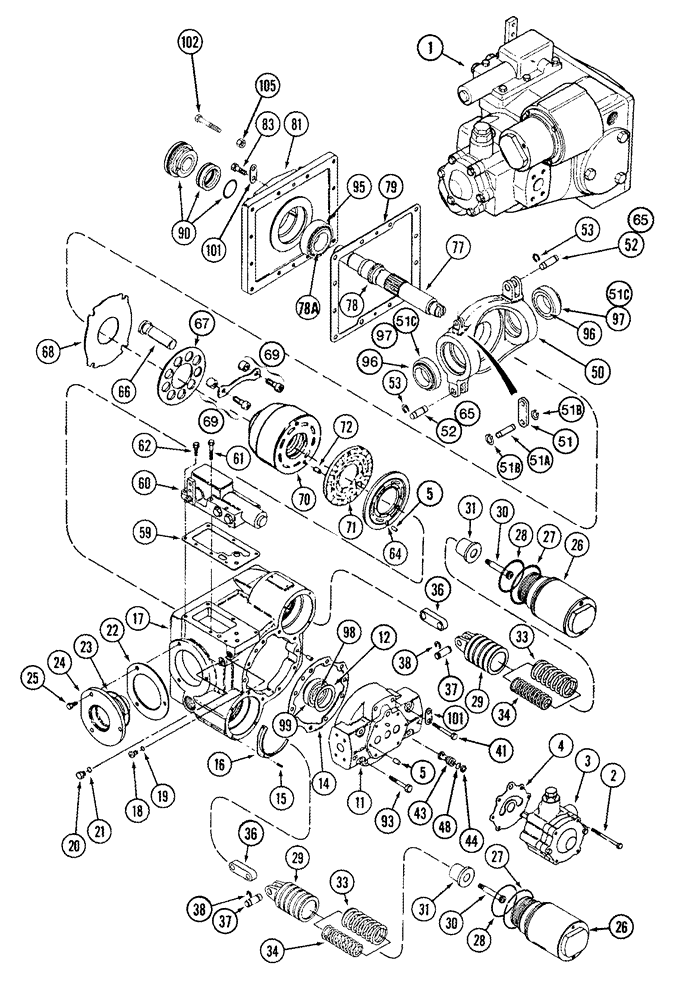

Запчасти Case IH 2344 (06-07) - PUMP ASSY - HYDROSTATIC - BSN JJC0174400 (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1330479C1
CORE-INJECTION PUMP
Use To Return Core For Credit When Using a Remanufactured Assembly
1шт.
1
1330477C4
PUMP, HYDROSTATIC
HYDROSTATIC PUMP Part Number Stamped On Part, Inc. 2 - 99
1шт.
2
413-556
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
5/16 x 3-1/2
4шт.
3
133761C91
PUMP
Charge, See Figure(s) 06-08, 06-10
1шт.
5
140754C1
PIN
5/16 x 5/8
5шт.
11
NSS
NOT SOLD SEPARAT
Cover, End Pump
1шт.
12
140783C91
PACKAGE
End Cover
1шт.
14
140756C2
GASKET
1шт.
15
461-3086
HEX SOC SCREW,#8 - 32 x 3/8"
No. 8 x 3/8
6шт.
16
140774C1
RETAINER
Servo Piston
2шт.
17
NSS
NOT SOLD SEPARAT
Housing, Pump
1шт.
18
278548
PLUG,Hex, 7/16"-20 ORB
Incl 19
1шт.
19
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
20
9672438
PLUG,7/16" - 20 ORB
Incl. 21
1шт.
21
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
140763C91
SHIM KIT
Trunnion Bearing, Inc. 22
1шт.
22
NSS
NOT SOLD SEPARAT
0,002 in, Shim
6шт.
22
NSS
NOT SOLD SEPARAT
0,005 in, Shim
4шт.
22
NSS
NOT SOLD SEPARAT
0,010 in, Shim
4шт.
22
NSS
NOT SOLD SEPARAT
0,015 in, Shim
4шт.
22
NSS
NOT SOLD SEPARAT
0,025 in, Shim
4шт.
1330477C4
PUMP, HYDROSTATIC
HYDROSTATIC PUMP Part Number Stamped On Part, Inc.2 - 99, See Figure(s) 06-09, 06-10
1шт.
23
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
2шт.
24
NSS
NOT SOLD SEPARAT
Trunnion
1шт.
25
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
6шт.
26
140773C1
KIT
Servo, Inc. 27, 28
2шт.
27
238-5147
O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro
2шт.
28
238-5143
O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro
2шт.
29
1980166C1
PISTON
Inc. 30 - 38, Servo
2шт.
30
NSS
NOT SOLD SEPARAT
Screw
1шт.
31
NSS
NOT SOLD SEPARAT
Retainer
1шт.
33
NSS
NOT SOLD SEPARAT
Spring
1шт.
34
NSS
NOT SOLD SEPARAT
Spring
1шт.
36
NSS
NOT SOLD SEPARAT
Link
1шт.
37
140766C1
PIN,14.22mm OD x 39.12mm L
1шт.
38
100-1375
SNAP RING,#75, Ext
2шт.
41
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
6шт.
48
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
50
1980163C1
HOUSING
Inc. 51 - 51C
1шт.
51
NSS
NOT SOLD SEPARAT
Link
1шт.
51a
140765C1
PIN
1шт.
51b
100-1125
SNAP RING,#25, Ext
2шт.
51c
399934C1
BEARING CUP,73.43mm OD x 15.75mm W
2-7/8 OD
2шт.
52
140766C1
PIN,14.22mm OD x 39.12mm L
2шт.
53
100-1356
SNAP RING,#56, Ext
4шт.
59
133756C1
GASKET
1шт.
60
191065A1
CONTROL VALVE
Hydrostatic Pump, See Figure(s) 06-09
1шт.
61
326-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8
2шт.
62
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
64
1980165C1
PLATE
1шт.
1980164C1
KIT
Rotating, Cylinder, Inc. 65 - 71
1шт.
65
37-1510
DOWEL,5/16" x 5/8"
2шт.
66
NSS
NOT SOLD SEPARAT
Piston
9шт.
67
NSS
NOT SOLD SEPARAT
Plate
1шт.
68
NSS
NOT SOLD SEPARAT
Plate
1шт.
69
NSS
NOT SOLD SEPARAT
Kit
1шт.
69
NSS
NOT SOLD SEPARAT
Kit
1шт.
69
NSS
NOT SOLD SEPARAT
Kit
1шт.
70
NSS
NOT SOLD SEPARAT
Barrel
1шт.
71
NSS
NOT SOLD SEPARAT
Plate
1шт.
72
37-1510
DOWEL,5/16" x 5/8"
7шт.
77
1980161C1
SHAFT
Input, Inc..78, 78A
1шт.
78
101-11187
SNAP RING,#187, 1.759", Ext
1шт.
78a
92742C1
TAPERED BEARING
1-7/8 ID
1шт.
79
142414C1
GASKET
1шт.
81
NSS
NOT SOLD SEPARAT
Flange
1шт.
83
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
12шт.
90
1346205C1
SEAL KIT
Seal, Shaft, Four-Piece, Inc. 238-5145, 238-5131
1шт.
90
238-5145
O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro
1шт.
90
238-5131
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
1шт.
93
326-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
2шт.
95
317706C1
BEARING, CUP,88.925 mm OD x 25.6 mm
3-1/2 OD
1шт.
96
399933C91
ROLLER BEARING,45.24mm ID x 19.81mm W
1-25/32 ID
2шт.
97
399934C1
BEARING CUP,73.43mm OD x 15.75mm W
2-7/8 OD
2шт.
98
140758C91
ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"
5/8 ID
1шт.
99
140759C1
BEARING CUP
2-1/4 OD
1шт.
101
NSS
NOT SOLD SEPARAT
Strap, Shipping, Shown For Reference Only
2шт.
102
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
105
329-288
FLANGE NUT,Flg, 1/2"-13, G8
4шт.
Выбрано товаров: 82
