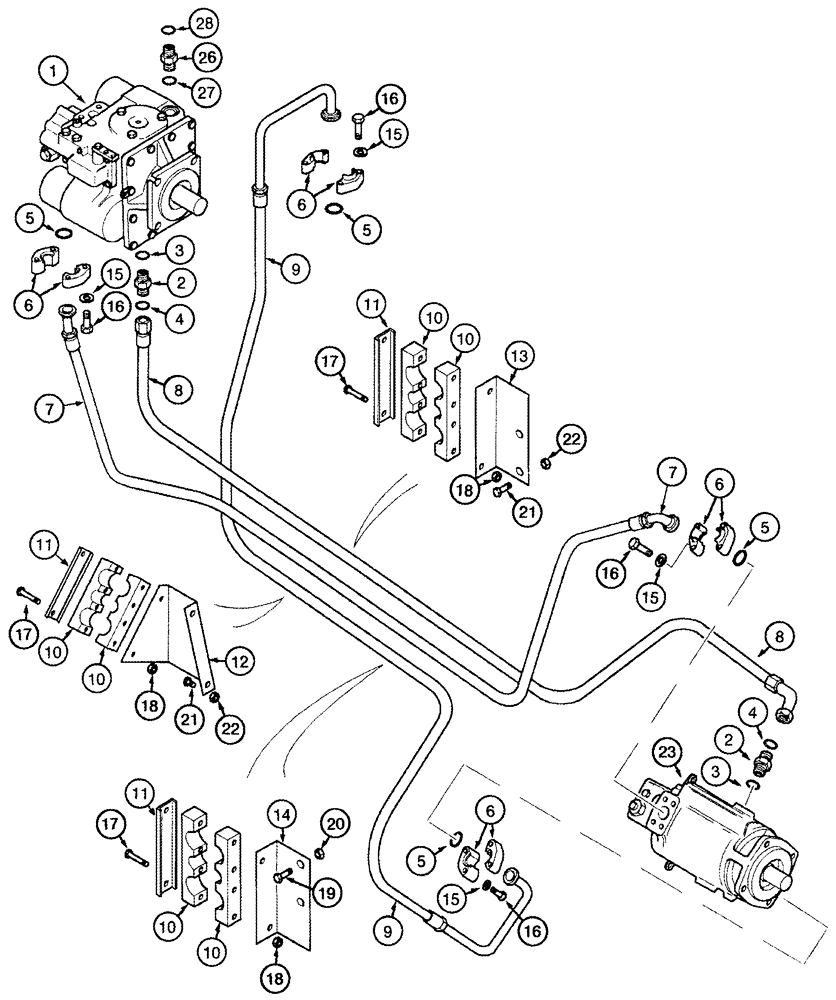

Запчасти Case IH 2344 (06-02) - HYDROSTATICS - PUMP AND MOTOR - SINGLE SPEED MOTOR - WITHOUT POWER GUIDE AXLE (03) - POWER TRAIN

1

REF

INSTRUCTION

Pump Assy, Hydrostatic, See Figure(s) 06-07 - 06-10

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

1 in, Split Flange

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

3455 mm (136 in), Forward, Serial Range: Pump-Motor

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

3705 mm (145-7/8 in), Drain, Serial Range: Pump-Motor

1шт.

9

227641A2

HOSE

4055 mm (159-5/8 in), Reverse, Serial Range: Pump-Motor

1шт.

10

221145A1

CLAMP

Two Piece

3шт.

11

224303A1

GUIDE

1-5/16 ID x 1/8 in wide, Clamp Backup

3шт.

12

1979941C1

SUPPORT

Hydrostatic Tube, Rear

1шт.

13

224302A1

SUPPORT

Hose Clamp, Middle

1шт.

14

224301A2

SUPPORT

Hose Clamp, Front

1шт.

15

492-11044

LOCK WASHER,7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

22

231-5146

FLANGE NUT,3/8"-16

5шт.

23

REF

INSTRUCTION

Motor Assy, Hydrostatic, See Figure(s) 06-11 - 06-13

1шт.

24

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-Type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, Not Illustrated

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-Type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, Not Illustrated

1шт.

26

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
