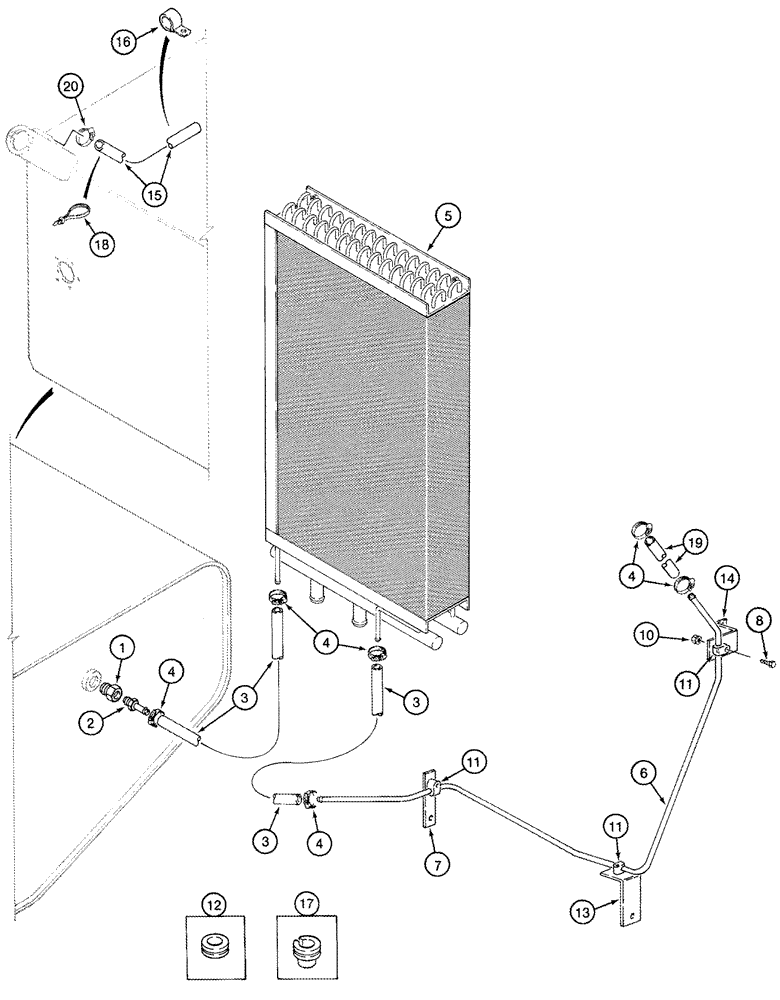

Запчасти Case IH 2344 (03-07) - FUEL, RETURN, BSN JJC0174449 (02) - FUEL SYSTEM

1

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

2шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

5

195441A3

COOLER

See Figure 08-06

1шт.

6

224971A1

FUEL TUBE

1шт.

7

1330564C1

PLATE

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

11

236558A1

CLAMP

3шт.

12

248-2117

GROMMET,5/8" ID x 7/8" Groove Dia

2шт.

13

178950C2

ANGLE

1шт.

14

121525A1

SUPPORT

1шт.

15

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

Cut From Bulk Tube

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3шт.

17

195803C1

GROMMET

1шт.

18

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

1шт.

19

1979437C2

HOSE

330 mm (13-1/8 in), Cut From S118400

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
