Запчасти Case IH 2344 (03-06) - FUEL, SUPPLY, BSN JJC0174449 (02) - FUEL SYSTEM

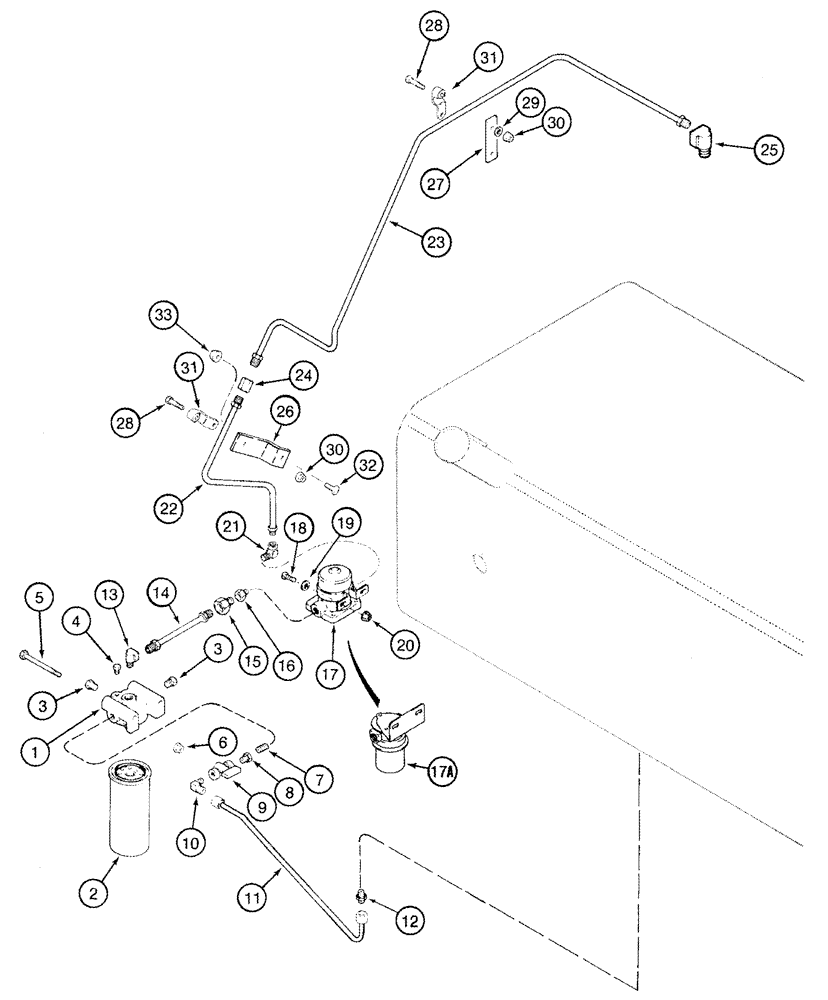

Схема запчастей Case IH 2344 - (03-06) - FUEL, SUPPLY, BSN JJC0174449 (02) - FUEL SYSTEM
5
3
11
17
15
14
16
3
17a
8
10
20
4
9
12
7
13
6
1
2

Артикул

Название

Примечание

Количество

1

612277C2

FILTER HEAD

1шт.

2

90-3941T1

SEPARATOR

1шт.

3

217-86

PLUG,Hex Hd, 1/4"-18, Brass

3шт.

4

217-84

PLUG,Hex Hd, 1/8"-27, Brass

1шт.

5

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

x 1-7/16" lg.

1шт.

8

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

9

1345205C1

SHUT-OFF VALVE

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

1шт.

11

1994884C1

FUEL TUBE

1шт.

12

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

13

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

14

1977000C1

HYD TUBE,0.375" OD

1шт.

15

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

1шт.

16

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

17

196503C2

PUMP

No Longer Used, Order 302867A1

1шт.

17b

302867A1

FUEL PUMP

1шт.

18

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

19

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

144535R1

ELBOW

3/8" inv fl

1шт.

22

1977001C1

HYD TUBE

Lower

1шт.

23

1980042C1

FUEL TUBE

Upper

1шт.

24

222-1055

HYD CONNECTOR,3/8" Inv Fl

5/8 inv fl

1шт.

25

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

26

196517C1

SUPPORT TUBE

1шт.

27

1330564C1

PLATE

1шт.

28

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

29

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

236558A1

CLAMP

2шт.

32

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 35
