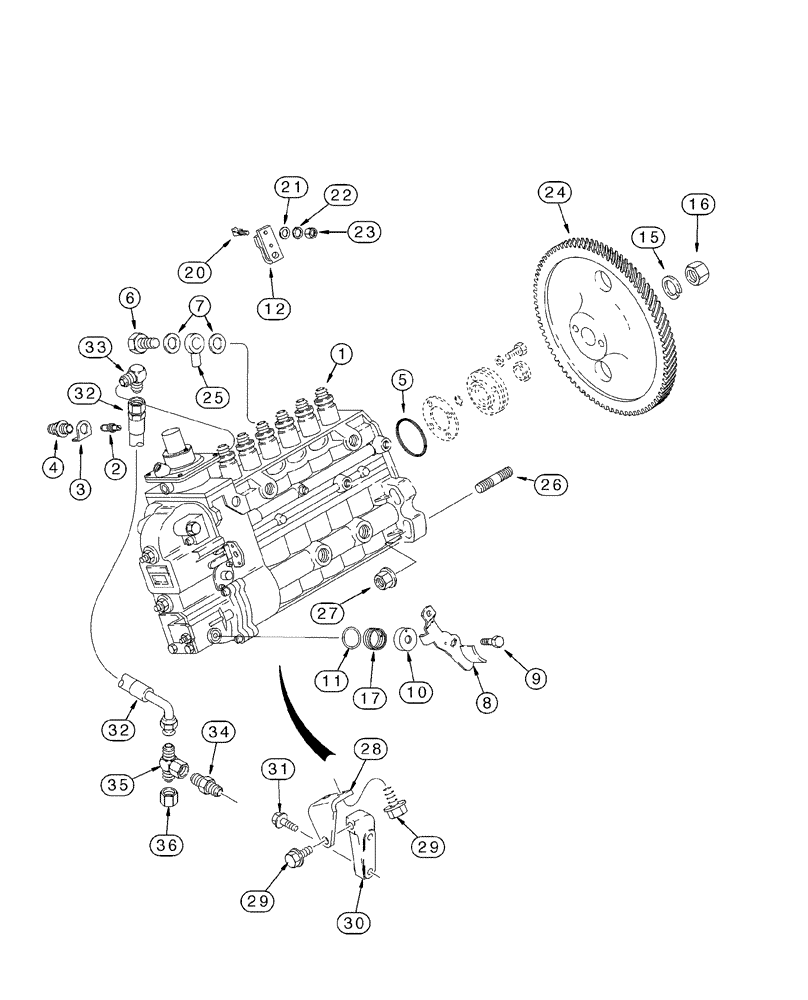

Запчасти Case IH 2344 (03-04) - FUEL INJECTION - PUMP AND DRIVE (02) - FUEL SYSTEM

1

J929601

PUMP, FUEL INJECTION

PUMP, INJECTION Inc. 2 - 23

1шт.

JR929601

REMAN-INJECTION PUMP

Remanufactured Pump Assy; For N.A. only

1шт.

JC929601

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J935032

SEAL

80 mm ID, Replaces J930993

1шт.

6

J932096

VALVE

1шт.

7

J935172

WASHER

Replaces J918195

2шт.

8

J910979

LEVER

1шт.

9

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

10

691292C1

RETAINER

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

12

1808728C1

LEVER

1шт.

15

A77775

LOCK WASHER

1шт.

16

A41852

LOCK NUT

1шт.

17

J912890

SPRING

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

1шт.

23

829-1306

NUT,M6, Cl 10

1шт.

24

J934636

PINION

Replaces J931450, J934188

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

26

J915036

STUD

55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

28

J863311

BRACE

1шт.

29

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

3шт.

30

J863312

BRACE

1шт.

31

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

32

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

33

A77512

ELBOW

1шт.

34

J932321

UNION

Replaces J941472

1шт.

35

J924346

TEE

Replaces J933291

1шт.

36

218-752

CAP,37 Degree, 7/16"-20

1шт.
