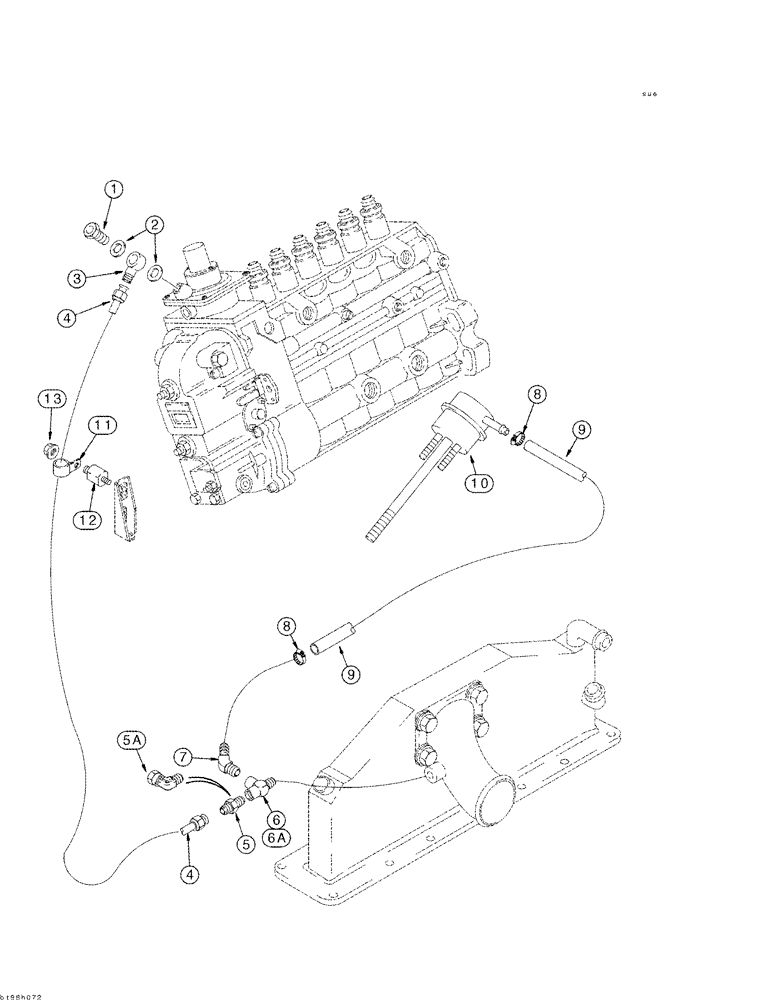

Запчасти Case IH 2344 (03-02) - ANEROID AND WASTEGATE SYSTEM (02) - FUEL SYSTEM

1

J903035

BANJO BOLT

M12 x 24

1шт.

2

J935171

SEALING WASHER

12 x 19 x 1,5 mm, Replaces J918191

2шт.

3

J919644

FITTING

1шт.

4

J934606

TUBE

Replaces J928529

1шт.

5

J920803

CONNECTOR, ELEC

CONNECTOR 1/4 ID x 1/8 PT

1шт.

Use with J930789

1шт.

5a

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

Used with J282406

1шт.

6

J930789

TEE

1шт.

Used with J920803

1шт.

6a

J282406

TEE

1шт.

Used with 222-41

1шт.

7

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

8

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

9

J925438

HOSE,130.00 mm

1шт.

10

J535861

VALVE

See Figure 02-16

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

12

J934977

STUD

Replaces J933763

1шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
