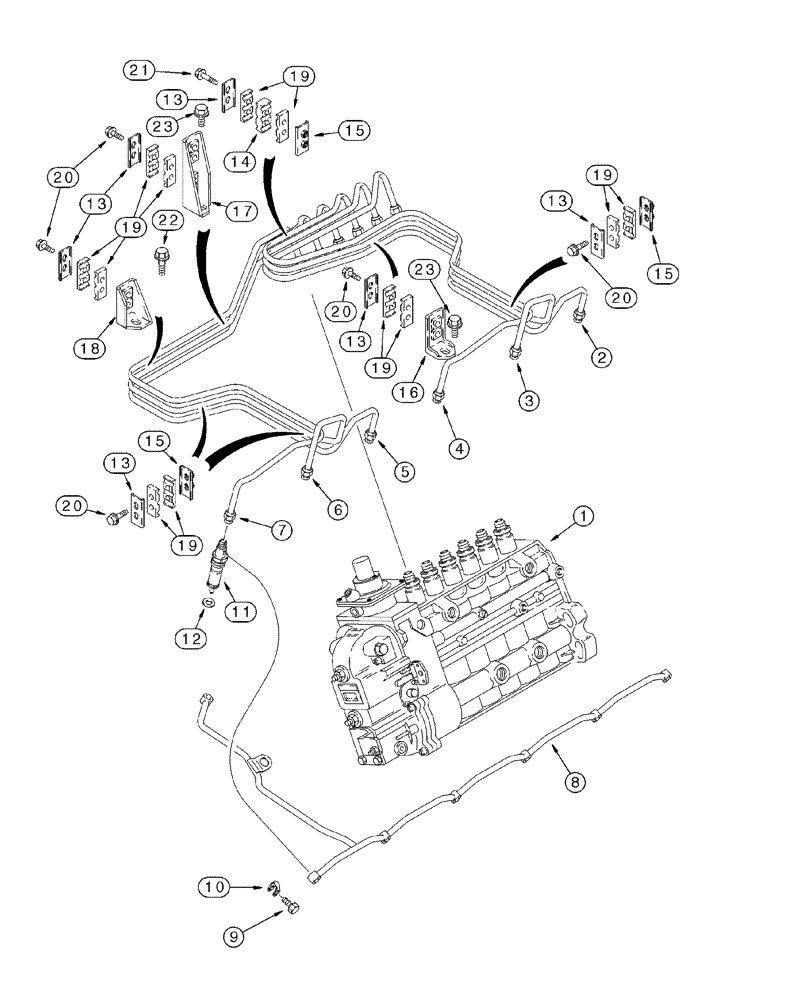

Запчасти Case IH 2344 (03-01) - FUEL INJECTION SYSTEM (02) - FUEL SYSTEM

1

J929601

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure(s) 03-04

1шт.

1

JR929601

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC929601

CORE-INJECTION PUMP

Return Number

1шт.

2

J932102

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

3

J932103

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

4

J932104

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

5

J932105

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

6

J932106

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

7

J932107

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

8

J926103

MANIFOLD

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

10

J903380

SEAL

6шт.

11

J929490

NOZZLE INJECTION

See Figure(s) 03-05

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION PUMP

6шт.

12

J906659

SEAL

7 mm

6шт.

13

J904519

SUPPORT

7шт.

14

J917748

CLAMP

1шт.

15

J917716

BRACE

3шт.

16

J282942

BRACKET

1шт.

17

J921415

HOLDER

1шт.

18

J920159

BRACE

1шт.

19

J917747

CLAMP

14шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

21

J920855

CAPTIVE WASHER SCREW

M5 x 35

2шт.

22

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

23

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

Replaces 844-8016

2шт.

24

J924962

FLANGE BOLT

M8 x 16, Not Illustrated

1шт.
