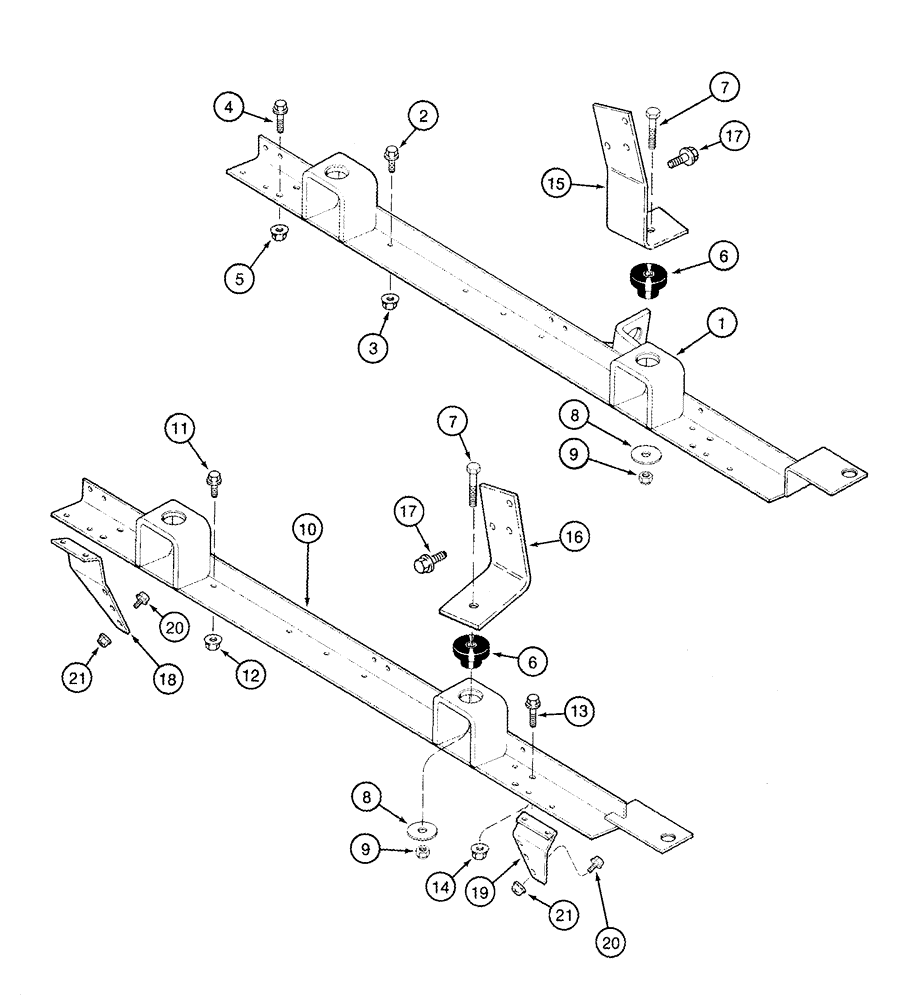

Запчасти Case IH 2344 (02-29) - MOUNTING, ENGINE (01) - ENGINE

1

195113A1

RAIL

Left Hand, Replaces 1315653C4

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

Front And Rear

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

8

107813R1

WASHER

21/32 x 2-1/2 x 11/64

4шт.

9

231-41110

LOCK NUT,5/8"-11, GB

4шт.

10

1315654C4

RAIL ASSY.

Right Hand

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

1329705C1

SUPPORT

Left Hand Front

1шт.

16

1329706C1

SUPPORT

Right Hand Front

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

6шт.

18

1330098C2

SUPPORT

Right Hand Rear

1шт.

19

1330099C2

SUPPORT

RH Front

1шт.

21

231-5146

FLANGE NUT,3/8"-16

10шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

10шт.
