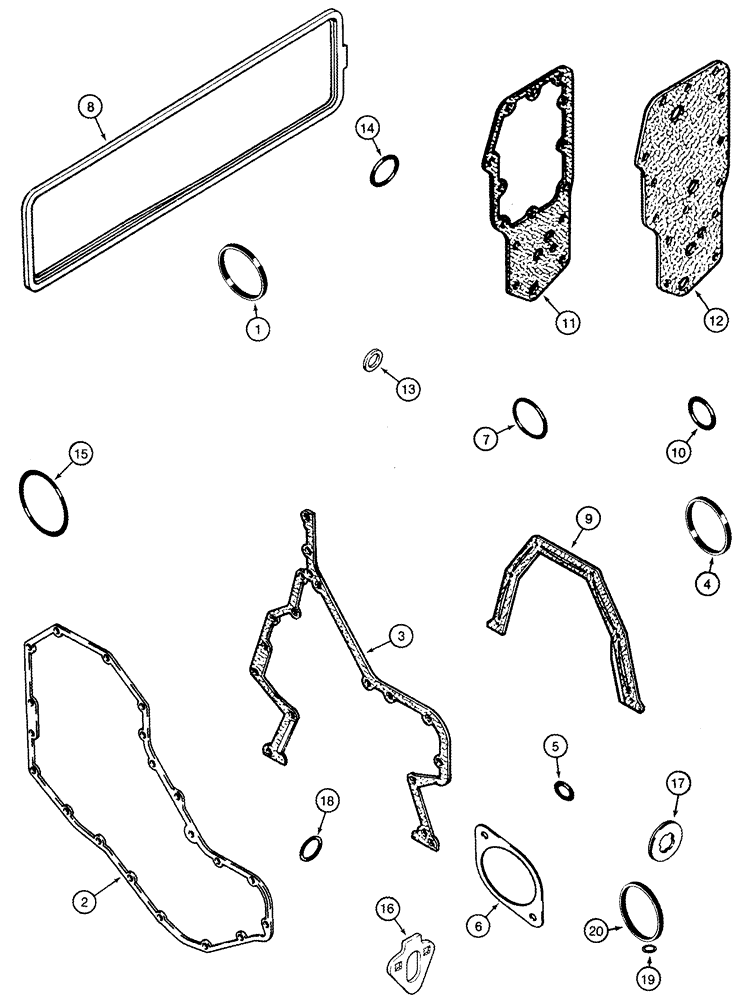

Запчасти Case IH 2344 (02-28) - GASKET KIT - CYLINDER BLOCK (01) - ENGINE

A77868

SEAL PACKAGE

Gasket, Cylinder Block, Inc. 1 - 20, No Longer Used, Order A77964

1шт.

A77964

SEAL PACKAGE

Gasket, Cylinder Block, Inc. 1 - 20

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure(s) 02-12, REF 20

1шт.

1

J935032

SEAL

80 mm ID, See Figure(s) 3-4, REF 5

1шт.

2

J918673

GASKET,1.02mm Thk

See Figure(s) 02-12, REF 3

1шт.

Use with A77868

1шт.

3

J931351

GASKET

See Figure(s) 02-12, REF 5

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure(s) 02-12, REF 11

1шт.

5

J913994

O-RING

See Figure(s) 02-12, REF 14

1шт.

6

J929751

GASKET

See Figure(s) 02-12, REF 16

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Figure(s) 02-11, Ref 3

1шт.

8

J928832

GASKET

See Figure(s) 02-22, REF 23

1шт.

9

J928493

GASKET

See Figure(s) 02-24, REF 9

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure(s) 02-22, REF 25

1шт.

11

J942914

GASKET

See Figure(s) 02-17, REF 13

1шт.

12

J942915

GASKET

Not Used In This Application

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure(s) 02-18, REF 10

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, See Figure(s) 02-23, REF 6

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure(s) 02-25, REF 8

1шт.

16

J931348

GASKET

See Figure(s) 03-03

1шт.

Use with A77868

1шт.

16

J931059

GASKET

See Figure(s) 03-3, REF 4

1шт.

17

J928759

SEALING WASHER

See Figure(s) 02-22, REF 19

8шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Figure(s) 02-25, REF 18

1шт.

19

J929457

O-RING

23/32 ID x 7/64, See Figure(s) 02-17, REF 6

1шт.

20

J930993

O-RING

See Figure(s) 03-04

1шт.

Use with A77868

1шт.
