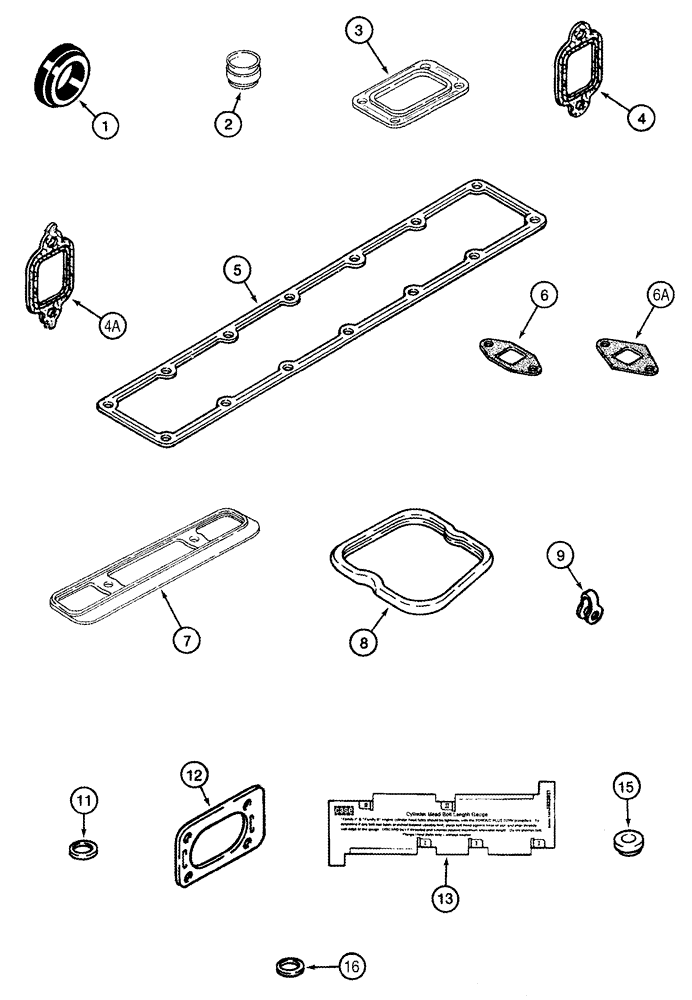

Запчасти Case IH 2344 (02-27) - GASKET KIT - VALVE GRIND (01) - ENGINE

A77925

GASKET KIT

Inc. 1 - 16, Replaces A77871

1шт.

1

J923331

GASKET

See Figure(s) 02-19, REF 10

1шт.

2

J921640

SEAL

See Figure(s) 02-20, REF 9, Replaces J901097

6шт.

3

J919369

GASKET,0.5mm Thk

See Figure(s) 02-14, REF 2

1шт.

4

J905443

MANIFOLD GASKET

No Longer Available, Order

6шт.

4a

J927154

GASKET,0.38mm Thk

See Figure(s) 02-14, REF 19

6шт.

5

J931347

GASKET

See Figure(s) 02-13, REF 2

1шт.

6

J931350

GASKET

No Longer Available, Order J285747, REF 6A

1шт.

6a

J285747

GASKET

See Figure(s) 02-14, REF 14

1шт.

7

J930426

GASKET

Not Used In This Application

1шт.

8

J930906

GASKET

See Figure(s) 02-19, REF 3

6шт.

9

J903380

SEAL

See Figure(s) 03-01, REF 10

6шт.

10

J906659

SEAL

7 mm, See Figure(s) 03-01, REF 12

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-05, REF 2

6шт.

12

J914856

GASKET,1.02mm Thk

See Figure(s) 02-14, REF 9

1шт.

13

J823921

GAUGE

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-19, REF 4, Replaces J928406

6шт.

16

J900808

SEAL

Not Used In This Application

6шт.
