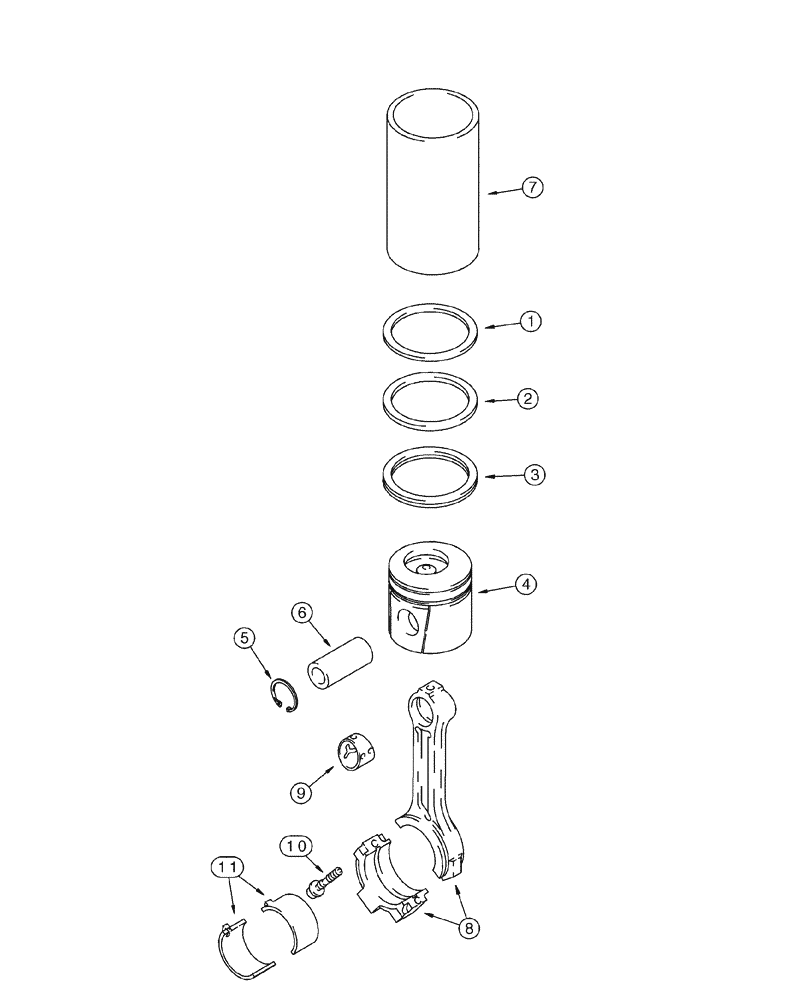

Запчасти Case IH 2344 (02-26) - PISTONS CONNECTING RODS 6TA-590 EMISSIONS CERTIFIED (01) - ENGINE

J802760

PISTON

Kit , Piston Standard, Consists Of : J802750, 1 - 5

6шт.

J802750

PISTON RING SET

Ring Set , Piston Standard, Consist Of : 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

Ring

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Pin Replaces : J919053

1шт.

J802761

PISTON

Kit , Piston Oversize : 0,50 mm, Consists Of : J802863, 1 - 5

6шт.

J802863

PISTON RING SET

Ring Set , Piston Oversize : 0,50 mm, Inc. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

Ring

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Pin Replaces : J919053

1шт.

J802762

PISTON

Kit , Piston Oversize : 1,00 mm Consists Of : J802864, 1 - 5 See Below

6шт.

J802864

PISTON RING SET

Ring Set , Piston Oversize : 1,00 mm Consists Of : 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J901706

RING

Ring

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Pin Replaces : J919053

1шт.

7

J904166

SLEEVE

Sleeve Order : J802760

1шт.

J942581

ROD, CONNECTING

Rod Assy Consists Of : 8 - 10, Replaces : J925232 CONNECTING

6шт.

JR942581

REMAN-CONNECTING ROD

Assy, Replaces JR925232

6шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number Connecting Rod

6шт.

84145405R

REMAN-CONNECTING ROD

2344 (1/98-1/02-), Reman For New PN J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

8

NSS

NOT SOLD SEPARAT

Rod CONNECTING

1шт.

9

J941476

BUSHING

Replaces J901085 CONNECTING ROD

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Bolt M11 x 59 CONNECTING ROD

2шт.

11

A77465

BEARING SET

Bearing , Con. Rod Standard

6шт.

11

A77466

BEARING SET

Bearing , Con. Rod Oversize : 0,25 mm

6шт.

11

A77467

BEARING LINER

Bearing , Con. Rod Oversize : 0,50 mm

6шт.

11

A77468

BEARING SET

Bearing , Con. Rod Oversize : 0,75 mm

6шт.

11

A77469

BEARING SET

Bearing , Con. Rod Oversize : 1,00 mm

6шт.
