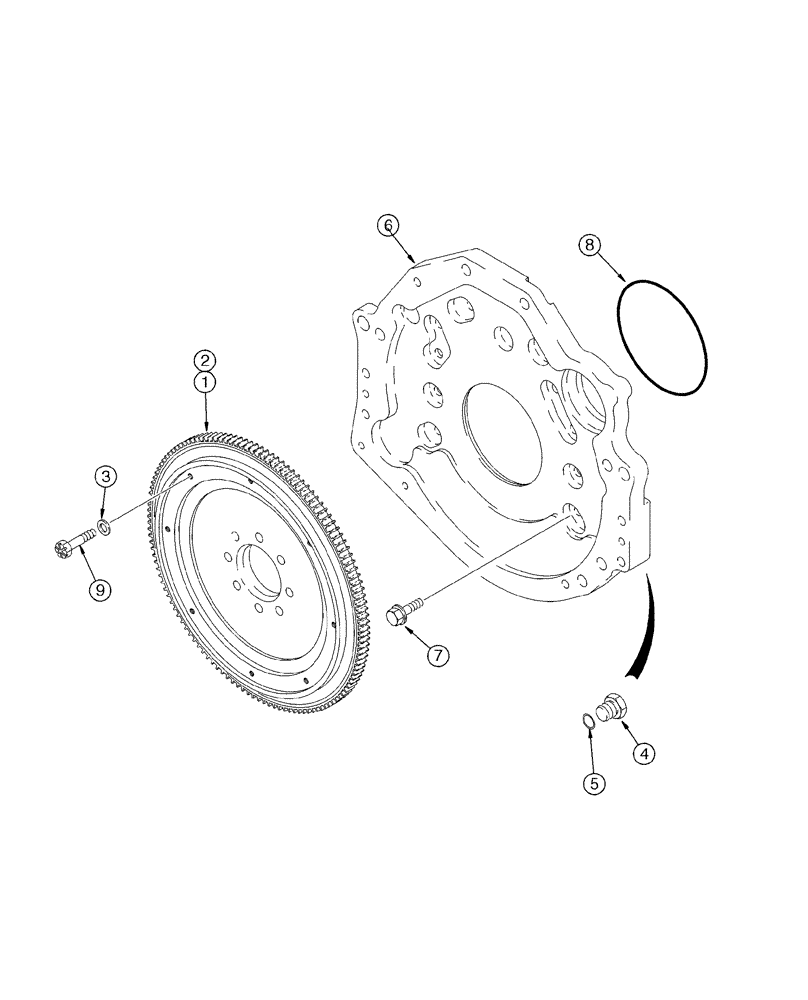

Запчасти Case IH 2344 (02-25) - FLYWHEEL AND BACKING PLATE (01) - ENGINE

1

J917052

FLYWHEEL

Includes 2

1шт.

2

J905427

GEAR

1шт.

3

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

4

J910248

PLUG

Includes 5

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J913592

PLATE

1шт.

7

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

8

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

9

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

12 x 50 mm

8шт.
