Запчасти Case IH 2344 (02-24) - CRANKSHAFT (01) - ENGINE

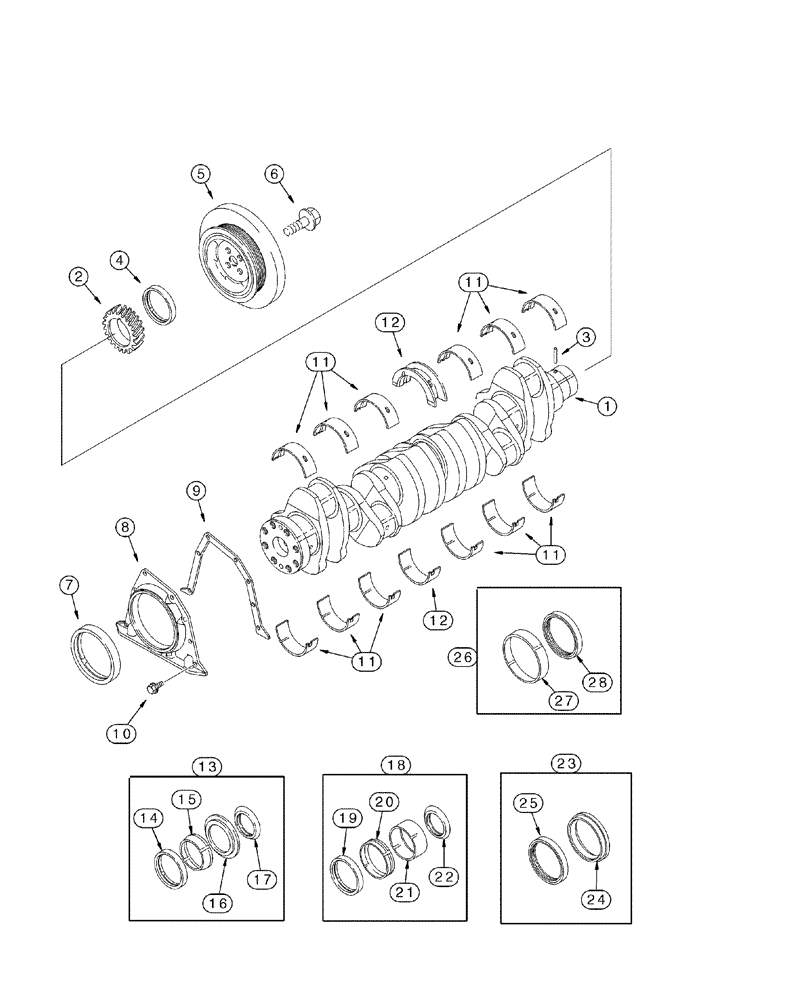

Схема запчастей Case IH 2344 - (02-24) - CRANKSHAFT (01) - ENGINE
11
17
4
14
28
15
22
16
27
5
11
23
24
7
18
10
2
1
6
11
21
12
20
9
12
3
11
19
8
25
13
26

Артикул

Название

Примечание

Количество

JR908032

REMAN-CRANKSHAFT

Remanufactured, Only For N.A., Order J908032

1шт.

JC908032

CORE-CRANKSHAFT

1шт.

1

J908032

CRANKSHAFT

Inc. 2, 3

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889, See Figure(s) 02-24

1шт.

5

J958258

DAMPER

Crank Pulley

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486, See Figure(s) 02-24

1шт.

8

J936260

REAR COVER

Replaces J921043

1шт.

9

J928493

GASKET

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

A77405

CRANKSHAFT BEARING

Standard

6шт.

11

A77472

BEARING SET

0,25 mm, Undersize 0,25 mm

6шт.

11

A77474

BEARING SET

0,50 mm, Undersize 0,50 mm

6шт.

11

A77476

BEARING SET

0,75 mm, Undersize 0,75 mm

6шт.

11

A77478

BEARING SET

1,0 mm, Undersize 1,00 mm

6шт.

12

A77406

CRANKSHAFT BEARING

Standard, No Longer Used, Order A77896

1шт.

12

A77896

BEARING SET

Standard, Replaces A77406

1шт.

12

A77473

THRUST BEARING

0,25 mm, Undersize 0,25 mm

1шт.

12

A77475

THRUST BEARING

0,50 mm, Undersize 0,50 mm

1шт.

12

A77477

THRUST BEARING

0,75 mm, Undersize 0,75 mm

1шт.

12

A77479

THRUST BEARING

1,0 mm, Undersize 1,00 mm

1шт.

12

A77841

THRUST BEARING

0,50 mm, Undersize 0,50 mm, Oversize 0,50 mm

1шт.

12

A77840

THRUST BEARING

1,0 mm, Undersize 1,00 mm, Oversize 1,00 mm

1шт.

13

A77889

SEAL PACKAGE

Crankshaft, Front, Inc. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Inc. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Crankshaft, Rear, Replaces A77809, Inc. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.

Выбрано товаров: 41
