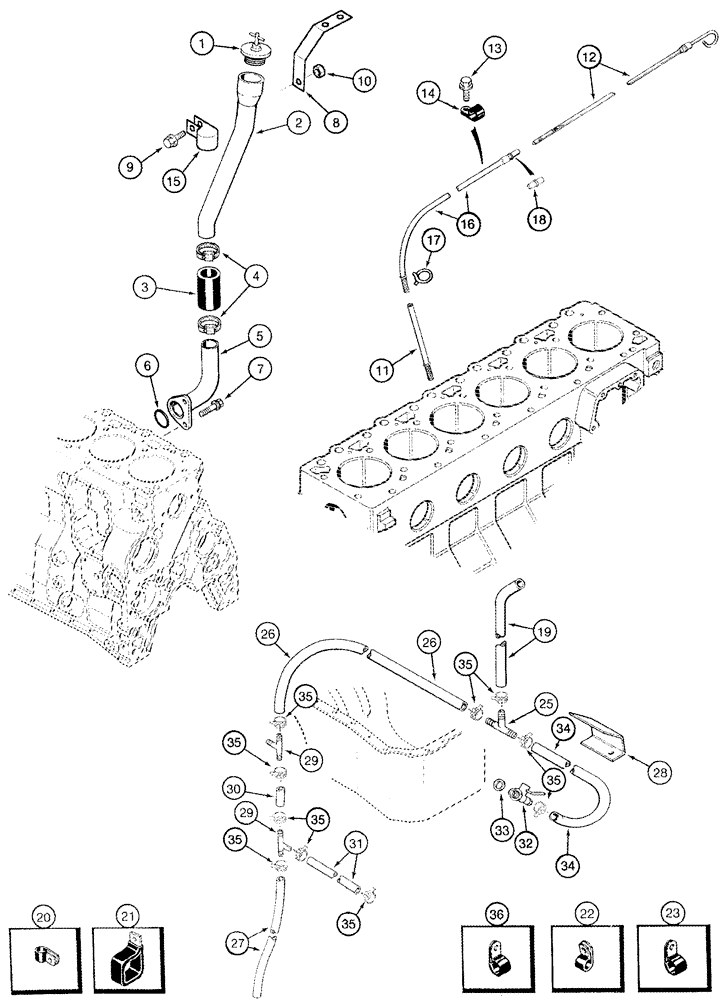

Запчасти Case IH 2344 (02-23) - OIL SYSTEM, ENGINE - MECANISMO DA VÁLVULA OIL FILL TUBE AND DIPSTICK (01) - ENGINE

1

A77424

FILLER CAP

Cap OIL FILL TUBE AND DIPSTICK

1шт.

2

J930880

TUBE,38.1 mm OD x 151.5, 92 mm L

Tube OIL FILL AND DIPSTICK

1шт.

3

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill Tube and Dipstick

1шт.

4

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

Clamp OIL FILL TUBE AND DIPSTICK

2шт.

5

J917570

TUBE,38.1 mm OD x 372.7 mm L

Tube OIL FILL AND DIPSTICK

1шт.

6

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-Ring 38 mm ID OIL FILL TUBE AND DIPSTICK

1шт.

7

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Bolt, Flange M12 x 25; 10.9 Oil Fill Tube and Dipstick

2шт.

8

J930879

TUBE

Bracket OIL FILL TUBE AND DIPSTICK

1шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Oil fill tube and dipstick

1шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

Oil Fill Tube and Dipstick

1шт.

11

J908308

TUBE,9.52 mm OD x 124.1, 44 mm L

Tube OIL FILL AND DIPSTICK

1шт.

12

J907680

DIPSTICK

Dipstick OIL FILL TUBE AND

1шт.

13

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Oil Fill Tube and Dipstick

2шт.

14

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

Oil Fill Tube and Dipstick

1шт.

15

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

Oil Fill Tube and Dipstick

1шт.

16

J279239

TUBE

Tube OIL FILL AND DIPSTICK

1шт.

17

214-1308

HOSE CLAMP,#8, 1/2", Spring

Oil Fill Tube and Dipstick

2шт.

18

J905802

FITTING,9.53 mm OD x 39 mm L

End OIL FILL TUBE AND DIPSTICK

1шт.

19

1329976C3

HOSE,15.75 mm ID x 610.00 mm

Hose 660mm (26 in) Cut From 1977295CX OIL DRAIN SYSTEM

1шт.

20

515-30222

CLAMP,7/8", 1/2" Bolt

Oil Drain System

3шт.

21

1301387C2

CLIP

Clamp 2 in ID OIL DRAIN SYSTEM

1шт.

22

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

Oil Drain System

2шт.

23

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

Oil Drain System

2шт.

24

425-148

JAM NUT,Jam, 1/2"-13, G5

Not Illustrated, Oil Drain System

1шт.

25

1977169C1

TEE

Tee OIL DRAIN SYSTEM

1шт.

26

1329978C3

HOSE

430 mm (17"), Replaces 293688A1, Oil Drain System

1шт.

27

129097A1

HOSE

Hose 1270 mm (50 in), Cut From 1977295CX OIL DRAIN SYSTEM

1шт.

28

1977220C1

ANGLE

Bracket OIL DRAIN SYSTEM

1шт.

29

1977169C1

TEE

Tee OIL DRAIN SYSTEM

2шт.

30

293686A1

HOSE,15.75 mm ID x 480.00 mm

Hose 480 mm (18-7/8 in), Cut From 1977295CX OIL DRAIN SYSTEM

1шт.

31

293687A1

HOSE,15.75 mm ID x 400.00 mm

Hose 400 mm (15-3/4 in), Cut From 1977295CX OIL DRAIN SYSTEM

1шт.

32

1330429C1

DRAIN VALVE

Oil System

1шт.

33

J920773

SEALING WASHER

Washer OIL DRAIN SYSTEM

1шт.

34

1329977C2

HOSE,15.75 mm ID x 840.00 mm

Hose 840 mm (33-1/8 in), Cut From 1977295CX, Replaces 293685A1 OIL DRAIN SYSTEM

1шт.

35

1954736C1

HOSE CLAMP,#24

Oil Drain System

11шт.

36

97249C1

CLIP

Clip OIL DRAIN SYSTEM

1шт.
