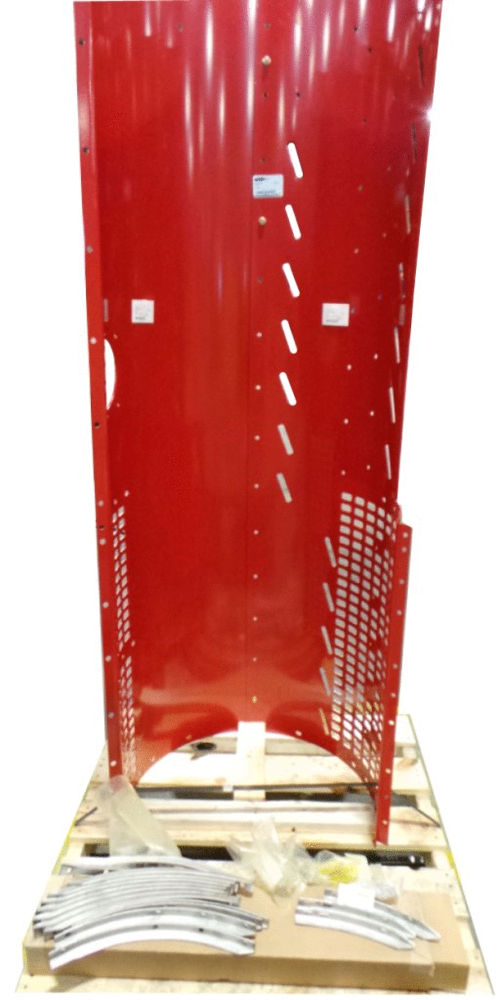

Запчасти Case IH 2344 (88.051.05) - KIT CAGE EXTENDED WEAR (88) - ACCESSORIES

1

B95630

KIT

Incl 2 - 13

1шт.

2

1318419C3

CAGE

RH 24 IN

1шт.

3

1318829C2

CAGE

LH

1шт.

4

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

45шт.

5

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

23шт.

6

247780

SERRATED NUT,Flg, USR, 3/8"-16

34шт.

7

86521609

FLANGE NUT,Flg, 3/8"-16

45шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

9

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3шт.

10

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

10шт.

11

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

2шт.

12

47746160

VANE

EXTENSION TRANSITION

3шт.

13

47746159

VANE

TRANSPORT

13шт.
