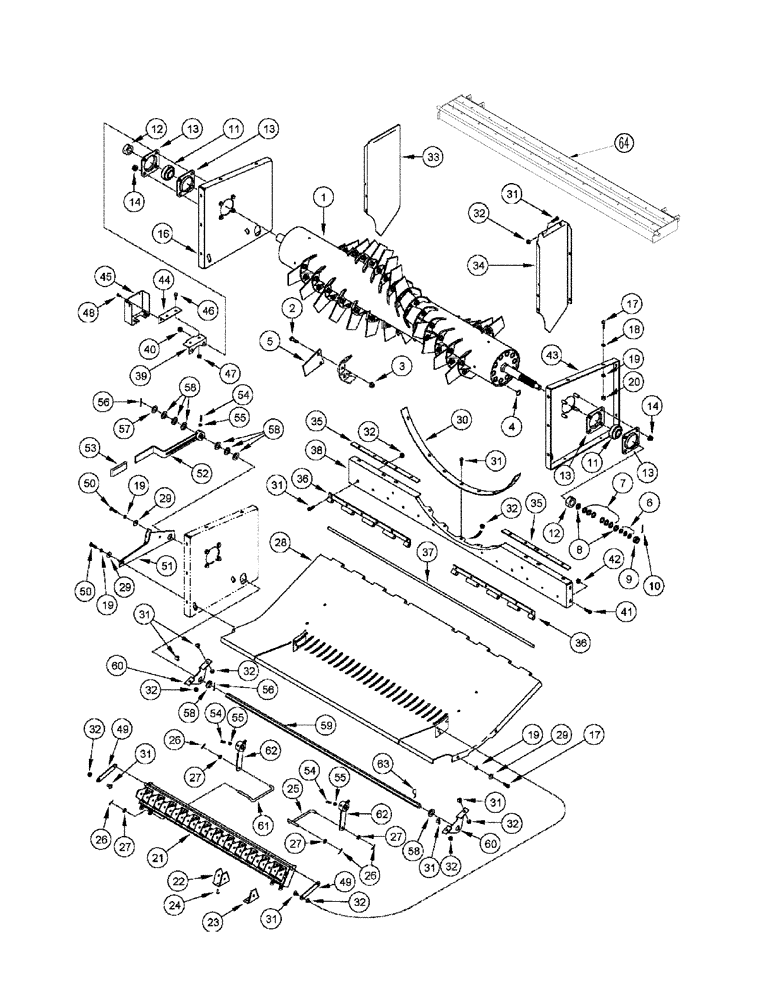

Запчасти Case IH 2344 (09F-07) - STRAW CHOPPER - ROTOR AND CONCAVE - ASN JJC0174400 (19) - STRAW SPREADER & CHOPPER

1

185099C93

ROTOR ASSY.

Inc. 2 - 5, Serial Range: -JJC0174449

1шт.

1

410003A1

ROTOR ASSY.

Inc. 2 - 5, 9, Start Serial: JJC0174450

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

4

1346984C1

PLUG

18шт.

5

197124C1

PACKAGE

Set of 2, Serial Range: -JJC0174449

14шт.

5

NSS

NOT SOLD SEPARAT

Package, Blade, Set of 2, Start Serial: JJC0174450

14шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

29/32 x 2 x 5/32

2шт.

6

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

29/32 x 2 x 7/64

1шт.

7

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64

6шт.

8

294604A1

SPACER

1шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

11

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

2шт.

12

455112R11

COLLAR

2шт.

13

1307583C1

FLANGED BEARING

4шт.

13

663562R1

FLANGE

Optional

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

16

144704A2

SUPPORT ASSY.

Left Hand

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

19шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

16шт.

19

492-11038

LOCK WASHER,3/8"

22шт.

20

425-106

NUT,3/8"-16, Cl 5

16шт.

21

392055A1

CONCAVE

Inc. 22 - 24

1шт.

22

396960A1

BLADE

12шт.

23

396962A1

BLADE

1шт.

24

104236

RIVET,4.76mm OD x 15.88mm L

26шт.

25

395513A1

ROD

1шт.

26

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

28

185141C4

BOTTOM

1шт.

29

496-41041

WASHER,13/32" x 1 1/8" x .134"

6шт.

30

182898C1

SUPPORT

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

35шт.

32

231-5146

FLANGE NUT,3/8"-16

35шт.

33

182946C1

DEFLECTOR

Discharge, Left Hand

1шт.

34

182947C1

DEFLECTOR

Discharge, Right Hand

1шт.

35

182891C1

PLATE

2шт.

36

182894C1

HINGE

2шт.

37

182977C1

ROD

1шт.

38

182929C1

SUPPORT

1шт.

39

144706A4

SUPPORT

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

10шт.

42

231-5146

FLANGE NUT,3/8"-16

10шт.

43

144705A1

SUPPORT

Right Hand

1шт.

44

248583A1

SUPPORT

Australia Only

1шт.

45

181208C3

SUPPORT

Australia Only

1шт.

46

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2, Australia Only

2шт.

47

425-104

NUT,1/4"-20, Cl 5

Australia Only

2шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

1/4 x 1/2, Australia Only

2шт.

49

391218A1

STRAP

2шт.

50

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

51

396337A1

PLATE

1шт.

52

396277A1

SHAFT

1шт.

53

402987A1

GRIP

1шт.

54

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

6шт.

55

425-105

NUT,5/16"-18, G5

6шт.

56

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

57

495-81056

WASHER,29/32" x 1 1/2" x 3/64

29/32 x 1-1/2 x 3/64

1шт.

58

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

29/32 x 1-1/2 x 7/64

1шт.

59

392241A1

SHAFT

1шт.

60

391229A1

SUPPORT

2шт.

61

391222A1

ROD

Left Hand

1шт.

62

391230A1

PIVOT

2шт.

63

480523R1

HAIR PIN COTTER

1шт.

64

418493A1

BAR

Chopper

1шт.
