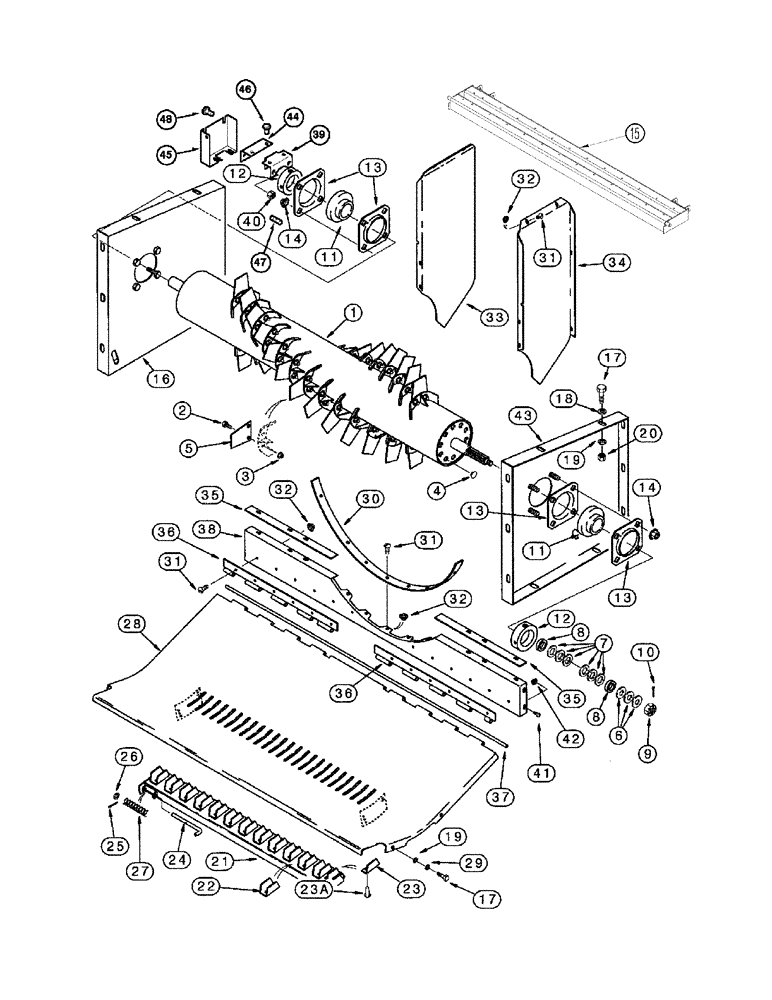

Запчасти Case IH 2344 (09F-06) - STRAW CHOPPER - ROTOR AND CONCAVE - BSN JJC0174399 (19) - STRAW SPREADER & CHOPPER

1

185099C93

ROTOR ASSY.

Inc. 2 - 4

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

4

1346984C1

PLUG

18шт.

5

197124C1

PACKAGE

Set of 2

14шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

29/32 x 2 x 5/32

2шт.

6

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

29/32 x 2 x 7/64

1шт.

7

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64

6шт.

8

294604A1

SPACER

2шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

11

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

2шт.

12

455112R11

COLLAR

2шт.

13

1307583C1

FLANGED BEARING

4шт.

13

663562R1

FLANGE

Optional

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

15

418492A1

BAR

Chopper

1шт.

16

144704A1

SUPPORT

Left Hand

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

19шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

16шт.

19

492-11038

LOCK WASHER,3/8"

20шт.

20

425-106

NUT,3/8"-16, Cl 5

16шт.

21

185135C91

BAR

Inc. 22 - 23A

1шт.

22

1302763C1

KNIFE

12шт.

23

1302764C1

KNIFE

1шт.

23a

104236

RIVET,4.76mm OD x 15.88mm L

26шт.

24

186736C3

ROD

2шт.

25

432-616

COTTER PIN,3/32" x 1"

2шт.

26

495-51041

WASHER,3/8"

13/32 x 47/64 x 1/16

1шт.

27

540815R2

SPRING

2шт.

28

185141C3

PLATE

1шт.

29

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

30

182898C1

SUPPORT

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

29шт.

32

231-5146

FLANGE NUT,3/8"-16

29шт.

33

182946C1

DEFLECTOR

Discharge, Left Hand

1шт.

34

182947C1

DEFLECTOR

Discharge, Right Hand

1шт.

35

182891C1

PLATE

2шт.

36

182894C1

HINGE

2шт.

37

182977C1

ROD

1шт.

38

182929C1

SUPPORT

1шт.

39

144706A4

SUPPORT

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

10шт.

42

231-5146

FLANGE NUT,3/8"-16

10шт.

43

144705A1

SUPPORT

Right Hand

1шт.

44

248583A1

SUPPORT

Australia Only

1шт.

45

181208C3

SUPPORT

Australia Only

1шт.

46

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2, Australia Only

2шт.

47

425-104

NUT,1/4"-20, Cl 5

Australia Only

2шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

1/4 x 1/2, Australia Only

2шт.
