Запчасти Case IH 2344 (09F-05) - STRAW CHOPPER - HOUSING, GEAR (19) - STRAW SPREADER & CHOPPER

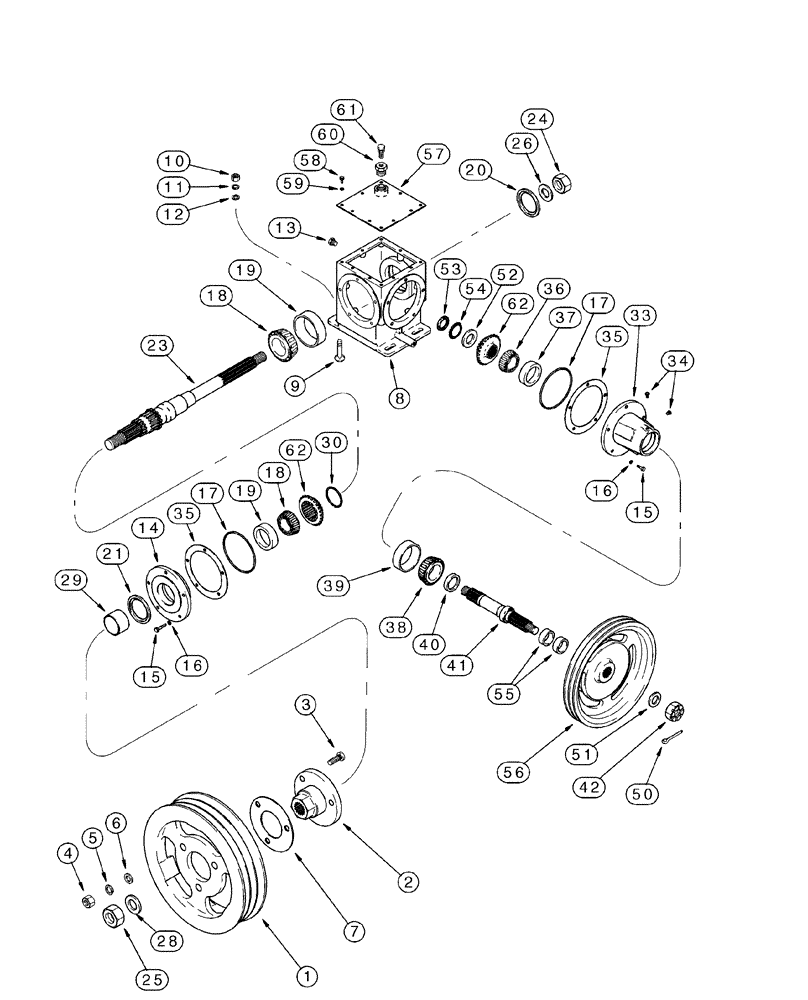

Схема запчастей Case IH 2344 - (09F-05) - STRAW CHOPPER - HOUSING, GEAR (19) - STRAW SPREADER & CHOPPER
14
35
21
51
54
10
12
18
38
53
50
35
41
15
57
56
25
6
2
16
40
1
33
59
62
34
16
7
4
23
62
18
19
55
9
17
52
29
11
5
30
19
60
12
39
36
37
61
13
20
58
28
24
15
17
26
8

Артикул

Название

Примечание

Количество

419764A1

GEARBOX

Inc. 8, 13 - 18, 20 - 23, 29, 33, 34, 37 - 41, 52 - 54, 57 - 61, 62

1шт.

419764A1R

REMAN-REDUCTION UNIT

2344 CASE IH AXIAL-FLOW COMBINE (1/98-1/02)

1шт.

419764A1C

CORE-REDUCTION UNIT

Return Number

1шт.

1

181271C1

PULLEY

15 OD

1шт.

2

181211C1

HUB

1шт.

3

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

3шт.

4

429-1110

NUT,5/8"-18, G8

3шт.

5

492-21062

LOCK WASHER,5/8"

3шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

3шт.

7

181363C1

SHIM

0,06 in

1шт.

8

181278C1

BEARING HOUSING

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4

6шт.

10

425-108

NUT,1/2" - 13, Gr 5

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

12

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

6шт.

13

86568834

PLUG,1/4" - 18 NPT

2шт.

14

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

16

492-11038

LOCK WASHER,3/8"

10шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

18

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

2шт.

19

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

2шт.

20

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

1шт.

21

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

1шт.

23

184394C2

SHAFT

If Used, Serial Range: -JJC0174449

1шт.

23

184394C3

SHAFT

If Used, Start Serial: JJC0174450

1шт.

23

411043A1

SHAFT

, Start Serial: JJC0174450

1шт.

24

232-41316

NUT,1"-8, GC

1шт.

25

231-41120

NUT,1 1/4"-7, GB

1шт.

26

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

28

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

1-3/8 x 2-1/2 x 1/4

1шт.

29

181269C1

SPACER

1шт.

1315284C1

PACKAGE

Inc. 30

1шт.

30

181255C1

SNAP RING

2,59 mm (0,102 in)

1шт.

30

181256C1

RING, SNAP

RING SNAP 2,67 mm (0,105 in)

1шт.

30

181257C1

RING, SNAP

RING SNAP 2,74 mm (0,108 in)

1шт.

30

181258C1

RING, SNAP

RING SNAP 2,82 mm (0,111 in)

1шт.

30

181259C1

RING, SNAP

RING SNAP 2,89 mm (0,114 in)

1шт.

30

181260C1

RING, SNAP

RING SNAP 2,97 mm (0,117 in)

1шт.

30

181261C1

RING, SNAP

RING SNAP 3,05 mm (0,120 in)

1шт.

30

181262C1

RING, SNAP

RING SNAP 3,12 mm (0,123 in)

1шт.

30

181263C1

RING, SNAP

RING SNAP 3,20 mm (0,126 in)

1шт.

30

181264C1

RING, SNAP

RING SNAP 3,28 mm (0,129 in)

1шт.

30

181265C1

RING, SNAP

RING SNAP 3,35 mm (0,132 in)

1шт.

30

181266C1

RING, SNAP

RING SNAP 3,43 mm (0,135 in)

1шт.

33

191245C2

HUB

1шт.

34

217-84

PLUG,Hex Hd, 1/8"-27, Brass

1/8 PT

2шт.

195484C2

SHIM KIT

Inc. 35

2шт.

35

NSS

NOT SOLD SEPARAT

Shim, 0,508 mm

4шт.

35

NSS

NOT SOLD SEPARAT

Shim, 0,1778 mm

4шт.

35

NSS

NOT SOLD SEPARAT

Shim, 0.127 mm

2шт.

36

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

1шт.

37

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

38

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 inch ID

1шт.

39

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

1шт.

40

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

1шт.

41

181195C1

SHAFT

1шт.

42

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

50

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

51

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

52

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

1-3/16 x 2-1/4 x 9/64

1шт.

53

54-2006

BEARING LOCK NUT,Bearing, 1.1811" Bore

TN-06

1шт.

54

55-2006

BEARING WASHER,Type TW-106

1шт.

55

181156C2

SPACER

2шт.

56

1315264C1

PULLEY

7 in OD, 14 in OD

1шт.

57

181281C1

COVER

1шт.

58

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

59

492-11031

LOCK WASHER,5/16"

10шт.

60

144041

SEAL,3/4" NPT Male x 3/8" NPT Fem

3/4 PT x 3/8 PT

1шт.

61

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

188814C1

BEVEL GEAR

If Used, Inc. 62

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

243333A1

BEVEL GEAR

If Used, Inc. 62

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

Выбрано товаров: 76
