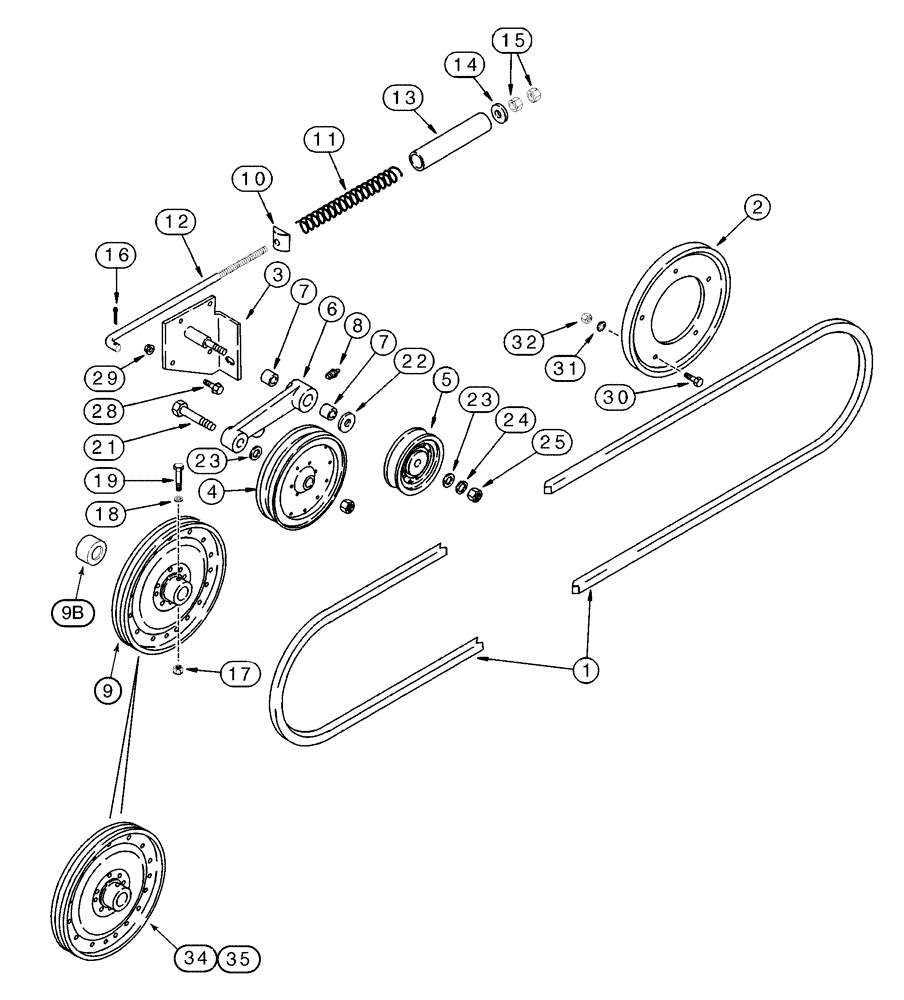

Запчасти Case IH 2344 (09F-02) - STRAW SPREADER - DRIVE (19) - STRAW SPREADER & CHOPPER

1

196371C1

BELT,0.630" W x 222.59" L

1шт.

2

566516R92

PULLEY,256.46mm OD

9-3/4 OD

1шт.

3

1315275C1

SUPPORT ASSY.

, Serial Range: -JJC0174399

1шт.

3

1315275C2

SUPPORT

, Serial Range: JJC0174400-JJC0174449

1шт.

3

427266A1

TIGHTENER

, Start Serial: JJC174450

1шт.

4

1338456C1

IDLER

6-3/4 in OD, Replaces 566518R91

1шт.

5

1315269C2

PULLEY

4-3/8 in OD, Serial Range: -JJC0174449

1шт.

5

428848A1

IDLER,73.64mm Idler Dia x 110.59mm OD x 20.78mm W

111 mm, Start Serial: JJC0174450

1шт.

6

1979591C1

LEVER

Inc. 7

1шт.

7

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

1994772C1

PULLEY

203 mm (8 in) OD, If Used, Not Illustrated, Serial Range: JJC0174400-JJC0174449

1шт.

9a

418093A1

PULLEY,203.2mm OD

203 mm (8 in) OD, If Used, Start Serial: JJC0174450

1шт.

9b

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Not Illustrated, Serial Range: JJC0174400-JJC0174449

1шт.

Used with 1994772C1

1шт.

10

194652C1

PIVOT

1шт.

11

1315223C1

SPRING

1шт.

12

181152C1

ROD

1шт.

13

1315197C1

SPACER

1шт.

14

495-81163

WASHER,17/32" x 1 1/2" x .120"

17/32 x 1-1/2 x 7/64

1шт.

14

495-81163

WASHER,17/32" x 1 1/2" x .120"

17/32 x 1-1/2 x 7/64

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.

16

432-816

COTTER PIN,1/8" x 1"

1шт.

17

232-4115

LOCK NUT,5/16"-18, GC

1шт.

18

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

11/32 x 11/16 x 3/32

1шт.

19

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

1шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

13/16 x 1-1/2 x 7/32

1шт.

23

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

31

492-11031

LOCK WASHER,5/16"

5шт.

32

425-105

NUT,5/16"-18, G5

5шт.

33

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

34

181196C2

PULLEY

254 mm (10 in) OD, Serial Range: -JJC0174399

1шт.

35

418092A1

PULLEY,254mm OD

254 mm (10 in ) OD, Start Serial: JJC174450

1шт.
