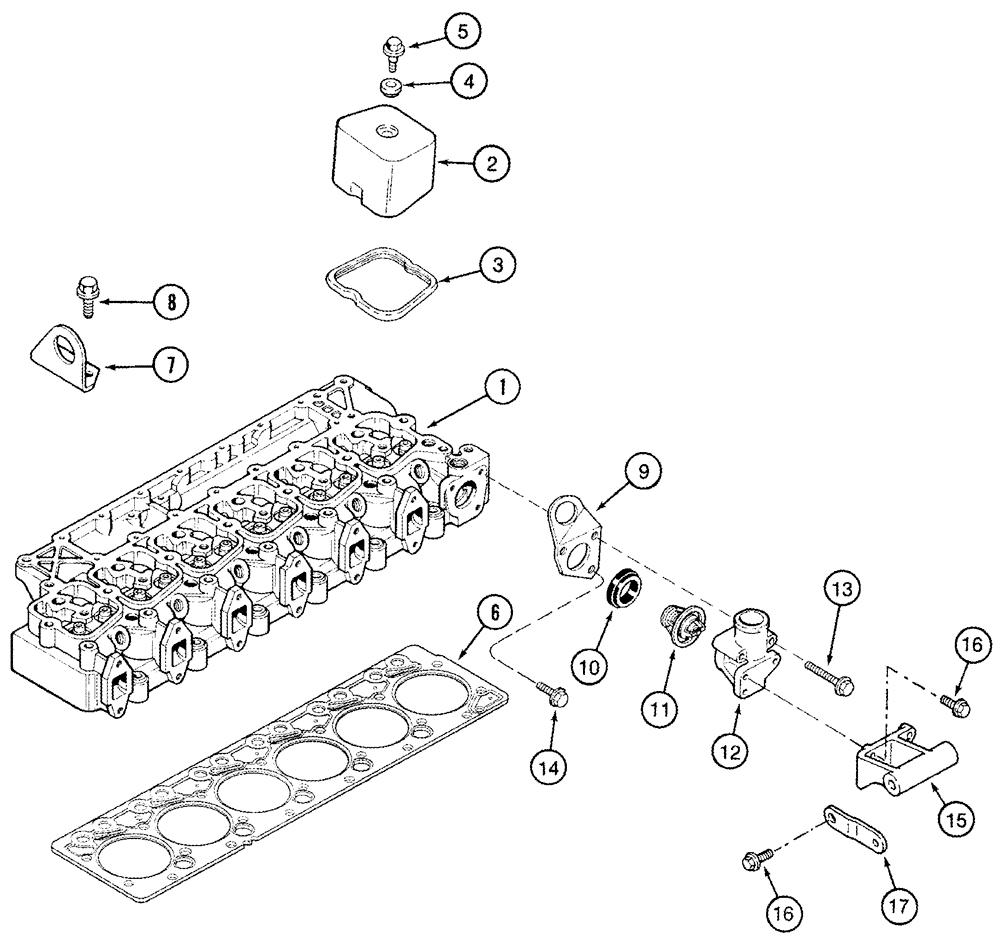

Запчасти Case IH 2344 (02-19) - CYLINDER HEAD - COVER - THERMOSTAT AND HOUSING (01) - ENGINE

1

REF

INSTRUCTION

Head, See Figure(s) 02-20

1шт.

2

J928404

COVER

6шт.

3

J930906

GASKET

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Replaces J928406

6шт.

5

J907049

BOLT,Hex

M8 x 21

6шт.

6

J283335

GASKET,2.32mm Thk

1шт.

6

J283337

GASKET,2.24mm Thk

0,25 mm

1шт.

6

J283339

GASKET

0,50 mm

1шт.

7

J908118

BRACKET

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

M12 x 30; 10.9, Thermostat and Housing

2шт.

9

J903757

BRACKET

1шт.

A77736

THERMOSTAT

Thermostat, Inc. 10, 11

1шт.

10

J923331

GASKET

1шт.

11

NSS

NOT SOLD SEPARAT

Thermostat, Order A77736

1шт.

12

J914409

HOUSING

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J917484

BRACE

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

17

J910924

PLATE

1шт.
